Mechanical Three Roller Symmetrical Plate Bending Rolling Machine

Mechanical Three Roller Symmetrical Plate Bending Rolling Machine thumbnail-1
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine thumbnail-2
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine thumbnail-3
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine thumbnail-4
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine thumbnail-5
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine thumbnail-6
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine photo-1
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine photo-2
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine photo-3
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine photo-4
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine photo-5
Mechanical Three Roller Symmetrical Plate Bending Rolling Machine photo-6
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
MTR-30*3000
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TIMAC
Model Number MTR-30*3000
Machine Type Other, Coiling bending machine, Roll forming machine, Roller-bending machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Other, All kinds of steel sheet
Power Other, Mechanical
Automation Manual
Extra Services Other, Rolling cone workpiece
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Mechanical Three Roller Symmetrical Plate Rolling Machine

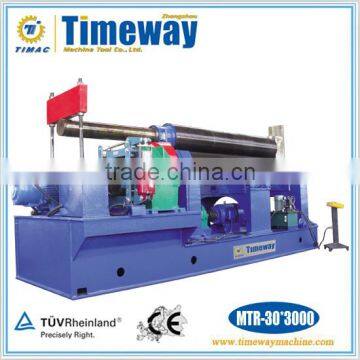

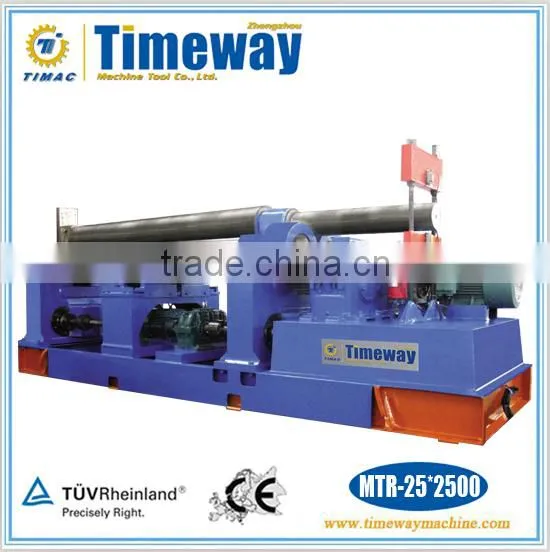

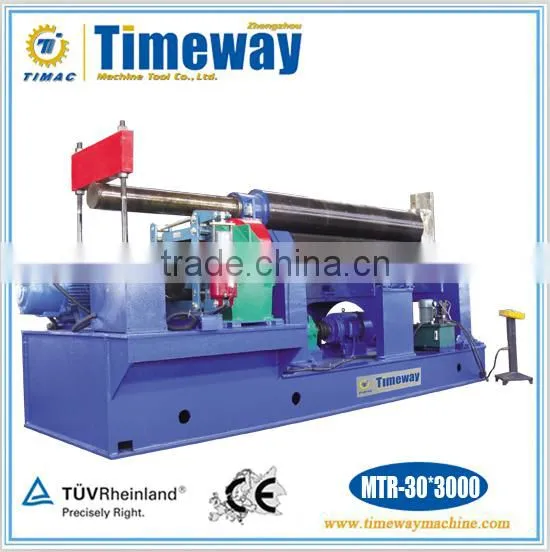

MTR-30*3000   MTR-25*2500

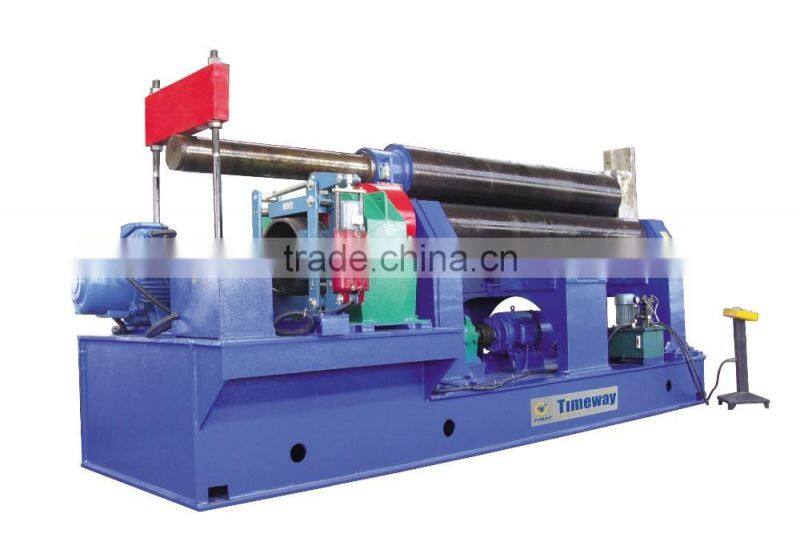

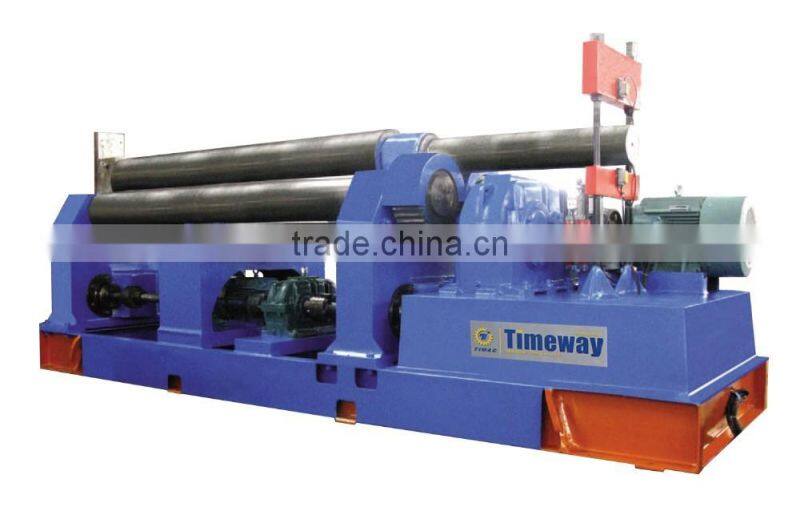

Main Outlook



Mechanical Three Roller Symmetrical Plate Bending Rolling Machine

Product Description



Features:



The machine adopts three-rollers symmetrical structure with the upper roller moving vertically in the center between the two lower, which is achieved through the drive of the screw, the nut, the worm and the lead screw. The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for pre-bending.



Specifications List



Technical Parameters



Model

Max. thickness of

coiled plate

(mm)

Max. width of

coiled plate

(mm)

Yielding limit of

sheet metal

(Mpa)

Diameter of

top shaft

(mm)

Motor

power

(kw)

MTR-4*1500415002451503
MTR-6*1500615002451604
MTR-6*2000620002451855.5
MTR-6*3200632002452407.5
MTR-8*2000820002452305.5
MTR-8*2500825002452307.5
MTR-12*20001220002452407.5
MTR-12*25001225002452607.5
MTR-12*300012300024528011
MTR-16*20001620002452607.5
MTR-16*250016250024530011
MTR-16*320016320024534015
MTR-20*200020200024528011
MTR-20*250020250024534015
MTR-25*200025200024533015
MTR-25*250025250024538022
MTR-30*250030250024540030
MTR-30*300030300024545037



Main Images



 Mechanical Three Roller Symmetrical Plate Bending Rolling Machine

 Mechanical Three Roller Symmetrical Plate Bending Rolling Machine  Mechanical Three Roller Symmetrical Plate Bending Rolling Machine  Mechanical Three Roller Symmetrical Plate Bending Rolling Machine

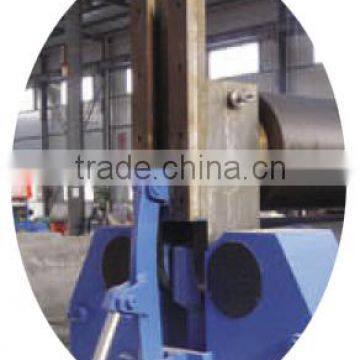

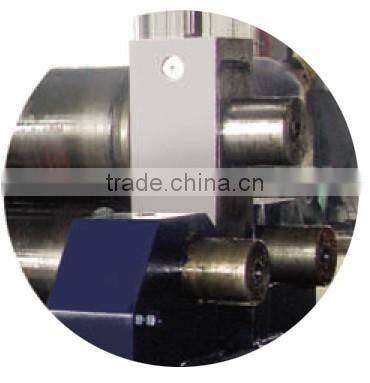

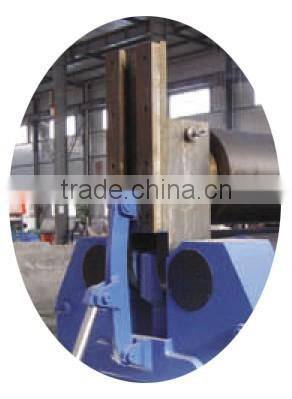

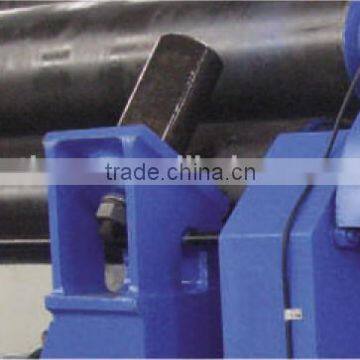

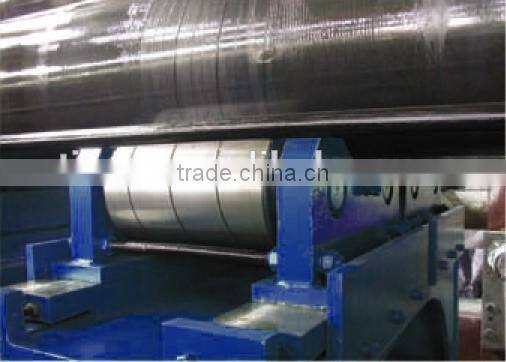

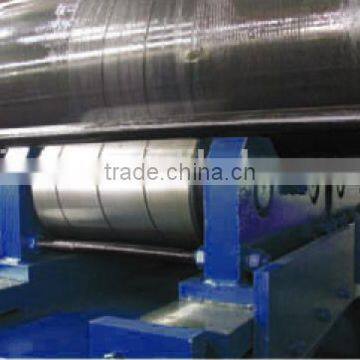

         Hydraulic Overturned                       Supporting Roller Device                          Roller End out of  Support Frame





  Mechanical Three Roller Symmetrical Plate Bending Rolling Machine  Mechanical Three Roller Symmetrical Plate Bending Rolling Machine

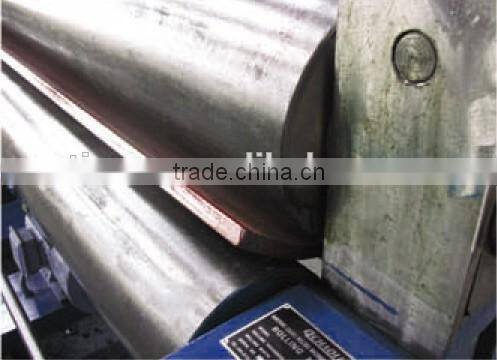

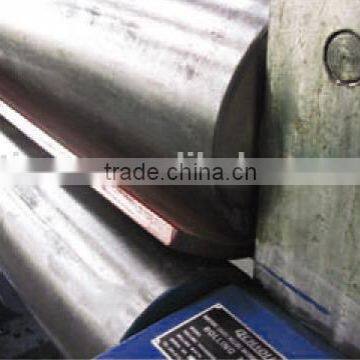

                            Pre-Bending Device                                                                   Coiling Tapering Device
