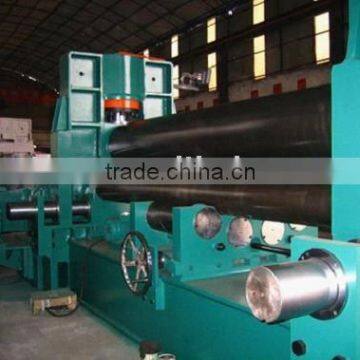

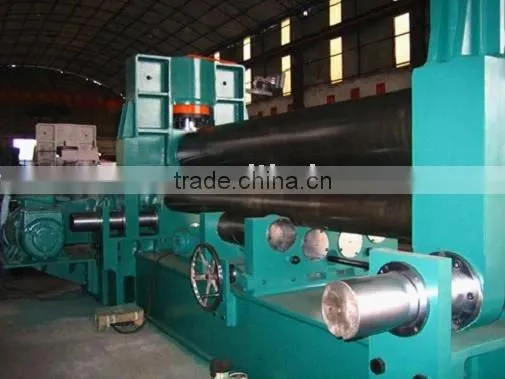

UTR-8x3200 Upper-roller Universal Plate Rolling Machine

Name: UTR-8x3200 Upper-roller Universal Plate Rolling Machine
Brand: TIMAC
SKU: 140795652
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

TIMAC

Model Number:

UTR-8x3200

Machine Type:

Roller-Bending Machine

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number UTR-8x3200

Machine Type Roller-Bending Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Manual

Extra Services Cut To Length

Certification CE

Specifications

UTR-8x3200 upper-roller universal plate rolling machine

1.UTR-8x3200 upper-roller universal plate rolling machine
2.The machine is hydraulic 3-roller bending machine.

Model	universal top roller
Press (ton)	55
iling thickness (mm)	8
iling width (mm)	3200
Roller work length (mm)	3300
Bearing	ZWZ
Upper roller diamater (mm)	275
Lower roller diameter (mm)	145
Distance between two rollers center (mm)	200
Coiling speed (m/min)	4.5
Roller number	4
Roller number of group	1
Main motor power (kw)	5.5
Hydraulic motor power (kw)	4
Move motor power (kw)	0.75
Reducer model	ZSY Hardened reducer
Dimension size(LxWxH) (mm)	5050x1200x1680
Weight (ton)	6.5
