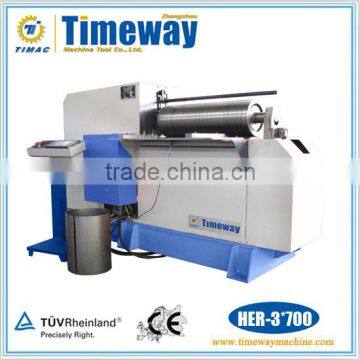

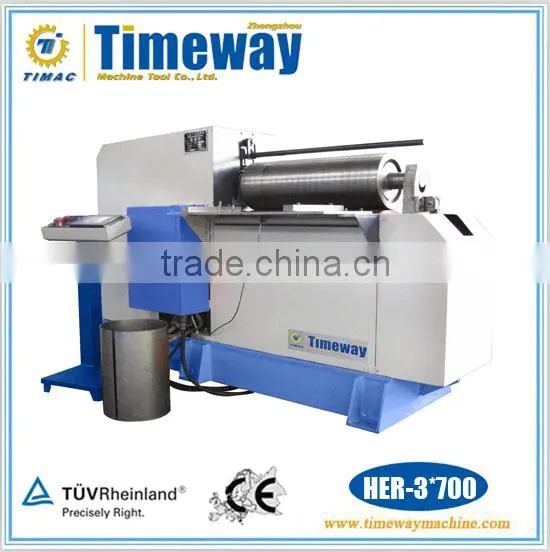

Full Automatic Hydraulic Two Rollers Bending Machine
HER-3*700
Features:
The automatic hydraulic two-rollers rolling machine is a new type rolling machine on which a roll is made of steel and the other roll comprises a steel core covered by elastic layer(rubber roll). The plate can be arranged between rolls with adjustable distance. With process of contacting, pressurizing, rubber roll deforming, the plate is deformed and then rolled to specified shape when both rolls are driven to rotate. The equipment has advantages of forming in one piece, high production efficiency, high geometric accuracy of finished product, good surface quality and simple structure with fewer rolls. PLC is adopted on equipment, so operation is simple and numerical control of production process can be easily realized.
Technical Parameters of Two-Rollers Rolling Machine(HER-3*700)
1.The max width of the plate:700mm
2.The max thickness of the plate:3mm
3.The material of plate:All kinds of steel sheet
4.The yielding limit of the plate:245Mpa
5.The main motor power:2.2kW
6.The hydraulic motor:4kW
7.The normal work pressure of hydraulic system:8-12Mpa
8.The Auto-hydraulic ability:Manual feeding,automatic bend and discharge workpiece.
9.The bend process should 30 seconds
Notes:According to customers' requires, Optional the max width rolling plate to 3000mm. The range of the max. thickness of rolling plate 0.3-6mm.

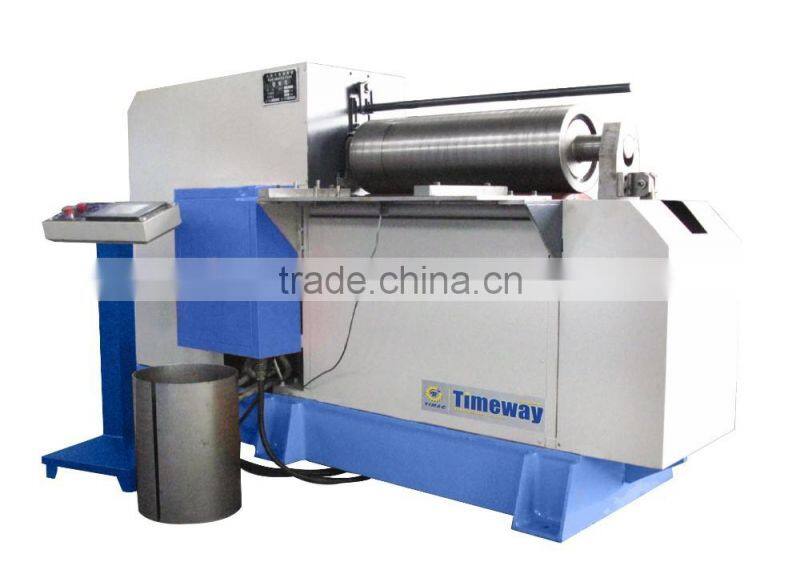

Two Rollers Rolling Machine

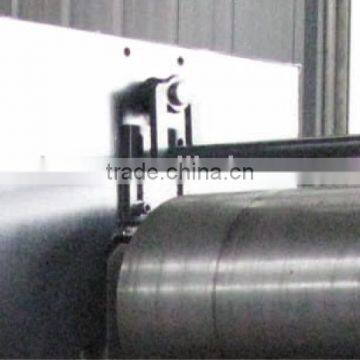

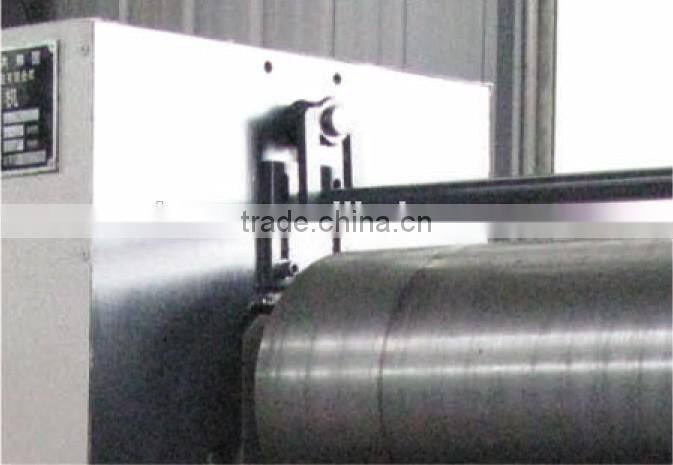

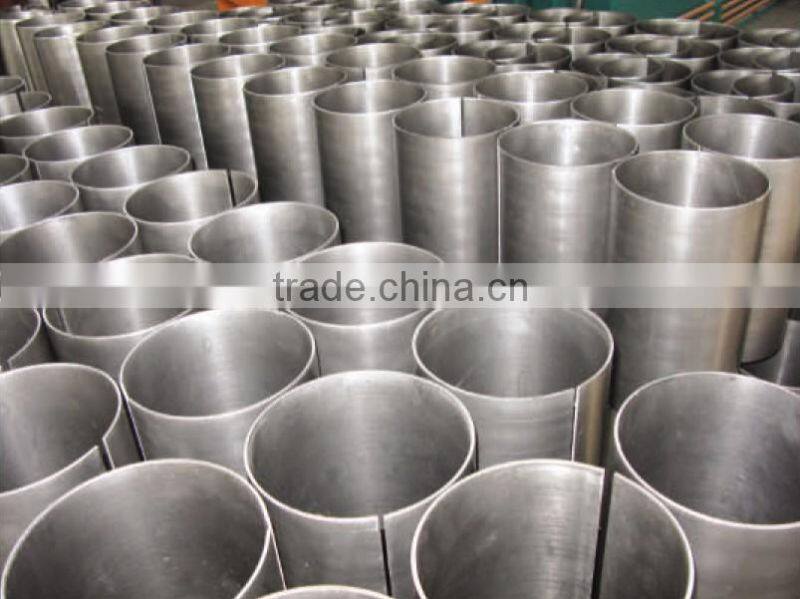

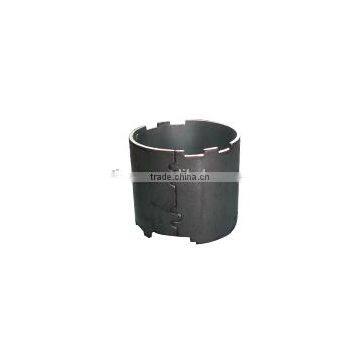

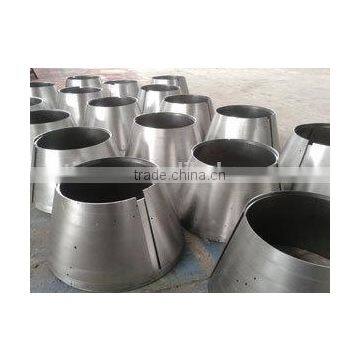

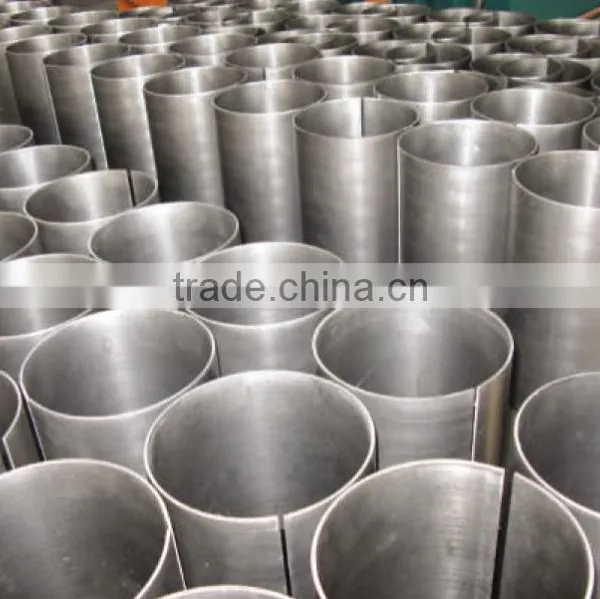

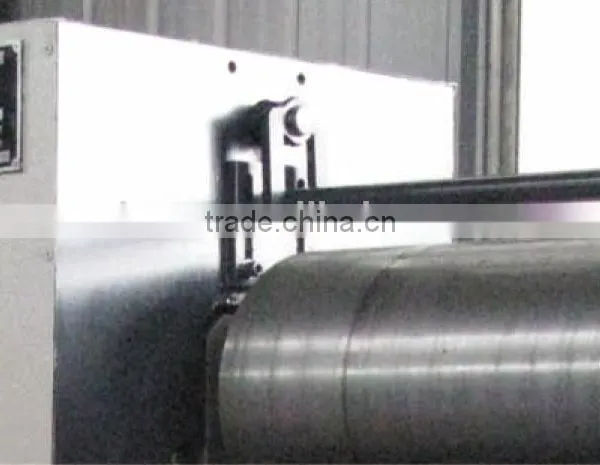

Device of unloading Working examples

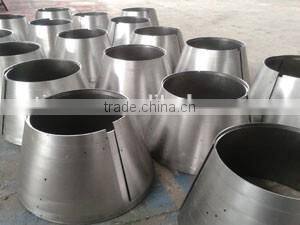

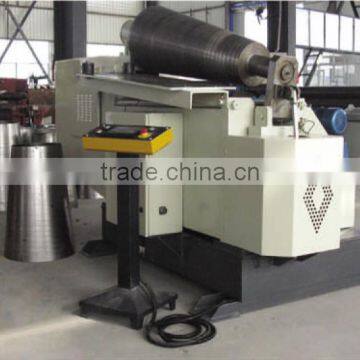

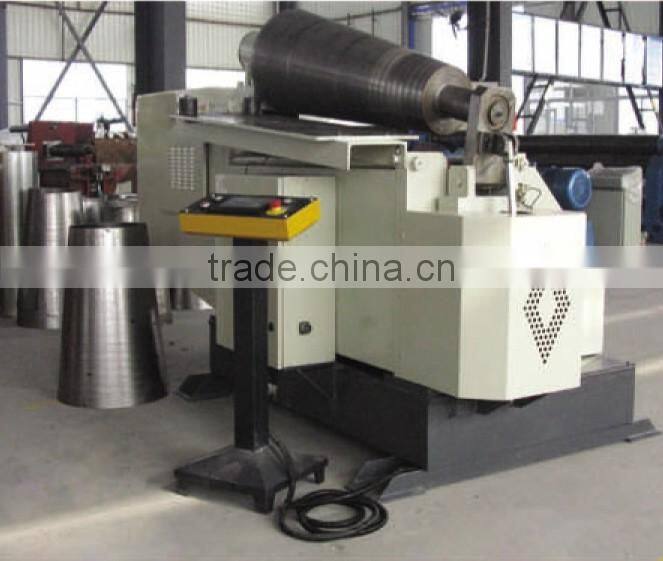

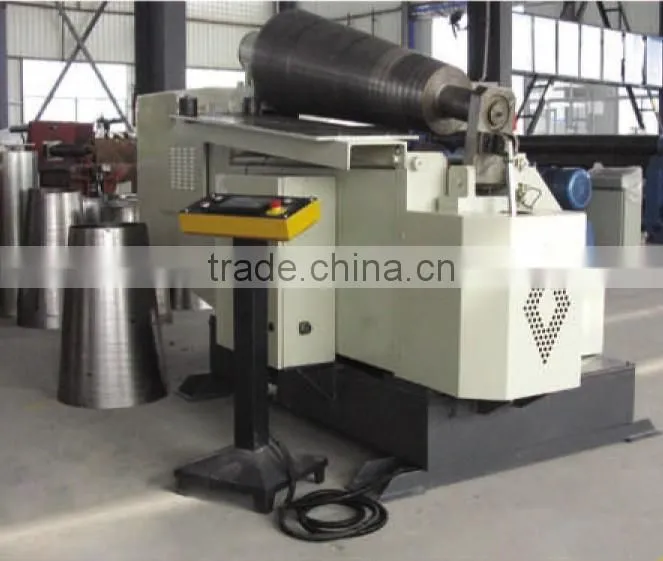

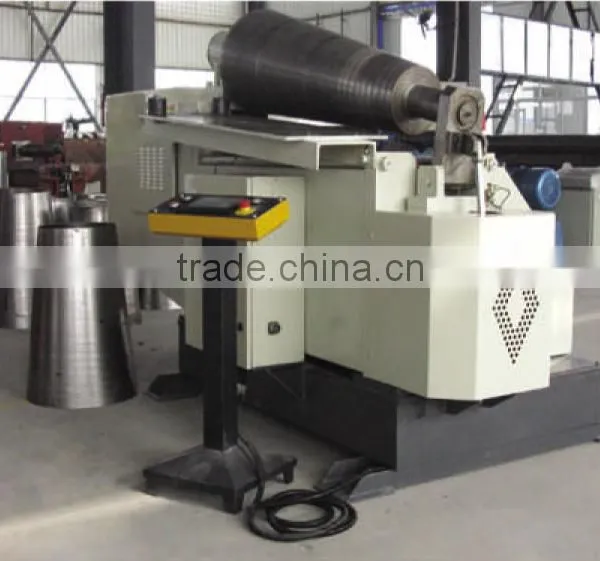

Two Rollers Rolling Cone Machine
