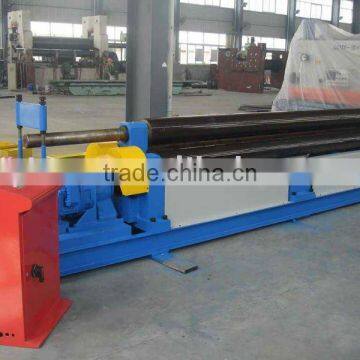

Three Rollers Symmetric Rolling Machine
Features:
1. This mechanical rolling machine is compact in structure and easy in maintenance, the structure is in the form of three roller asymmetry.
2. The top roller, in the central symmetry position over the two bottom rollers, does vertical motion up and the two through screw, nut and worm transmission.
3. Decelerator gears bottom rollers providing torsion moment for coiling sheet metal.
Specification | Max Thickness (mm) | Max Width (mm) | Coiling Speed (M/min) | Min Full Loading Diameter of Coiled Plate (mm) | Diameter of Top Shaft (mm) | Diameter of Bottom Shaft (mm) | Main motor power (KW) |
MTR-3x3200 | 3 | 3200 | 4.5 | 450 | 185 | 170 | 5.5 |
MTR-4x2000 | 4 | 2000 | 5 | 450 | 160 | 160 | 4 |
MTR-4x2500 | 4 | 2500 | 4.5 | 450 | 185 | 170 | 5.5 |
MTR-6x1500 | 6 | 1500 | 5 | 450 | 160 | 160 | 4 |
MTR-6x2000 | 6 | 2000 | 4.5 | 450 | 185 | 170 | 5.5 |
MTR-6x2500 | 6 | 2500 | 4 | 500 | 200 | 170 | 5.5 |
MTR-6x3200 | 6 | 3200 | 4 | 500 | 250 | 180 | 7.5 |
