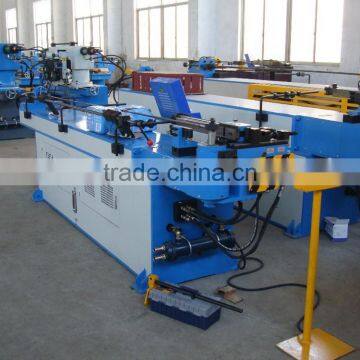

Semi-automatic Pipe Bending Machine (SB-38NCB)
Features:
The series was adapted in particular to professional world market requirements.
All the parts, structure and characters are similar to the standard of mechanical engineering from Europe.
Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.

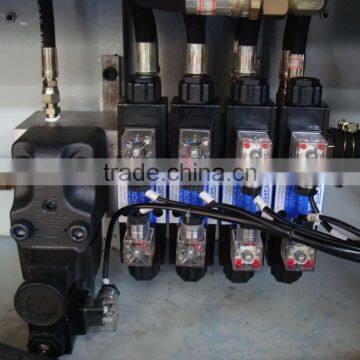

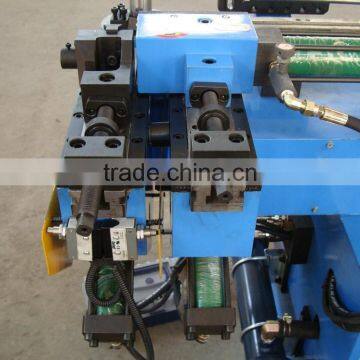

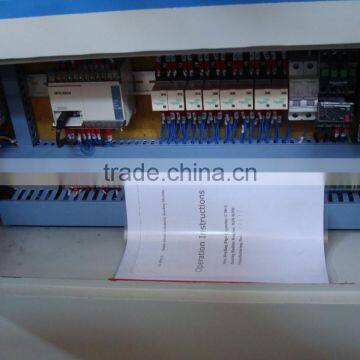

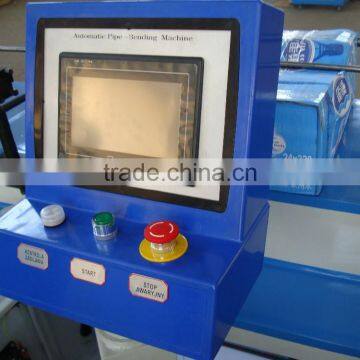

Full hydraulic drove, PLC controlled with touch screen pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on.
Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Parameter:
Specifcation | Unit | SB-38NCB |
Mild steel round tube | mm | 38*2 |
Stainless Steel | mm | 31.75*1.5 |
Light alloy annealed round tube | mm | 40*3 |
Mild steel square tube | mm | 30*30*1.5 |
Mild steel rectangular tube | mm | 35*20*1.5 |
Mild steel round solid bar | mm | 25 |
Mild steel square solid bar | mm | 20*20 |
Calendering tube max Ø (mild steel) | mm | 25*3 |
Min. bending radius | mm | 20 |
Max. Bending radius(Standard) | mm | 200 |
Head overhang (on bending centre) | mm | 500 |
Head height (on bending centre) | mm | 360 |
Bending centre height (from floor) | mm | 945 |
Max. Bending Angle | ° | 190° |
Though Effective Distance | mm | 2000 |
Bending Speed(Max.) | °/sec | 60 |
Bending Precision | ° | ±0.10 |
System Motor Power | KW | 4 |
Hydraulic Pump Output Volume | L | 14 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 2500*700*1300 |
Machine Weight | T | 1.5 |
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
ISO, CE, TUV, SGS certified company.
