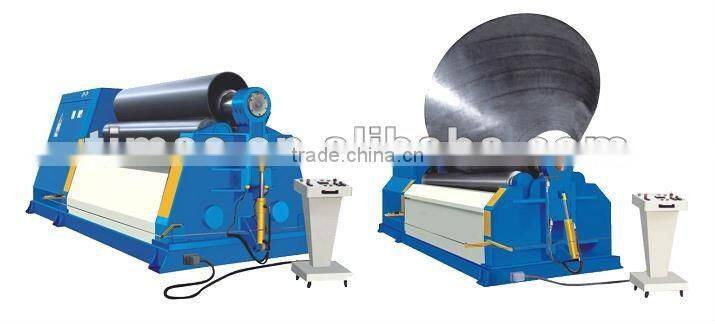

NC Arc Down-adjusting 3-roller Rolling Machine

Name: NC Arc Down-adjusting 3-roller Rolling Machine
Brand: TIMAC
SKU: 140795650
Availability: InStock

US$ 5,000 - 30,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

TRH-8x2500, TRH-16X2500, TRH-20X2000

Machine Type:

Roll Forming Machine

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number TRH-8x2500, TRH-16X2500, TRH-20X2000

Machine Type Roll Forming Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Other, Steel

Power Hydraulic

Automation Automatic

Extra Services Buffing / Polishing

Specifications

NC Arc Down-adjusting 3-roller Rolling Machine
Metal sheet/plate bending machine
With pre-bending function

NC Arc Down-adjusting 3-roller Rolling Machine

Features:

* The upper roller is fixed. The two lower rollers can move up and down in arc way around fixed roller.

It can finish pre-bending and rolling by feeding once.

* The three rollers are driving-roller. It can prevent skidding while rolling thin steel plate.

* It's controlled by micro-machine and has digital display, simply operation and high efficiency.

* With compact structure, it is economical and practical and fit for rolling thin and medium plates.

Technical parameter:

Spec	Max. thickness of rolling plate	Pre-bending thickness	Max. width of rolling plate	Plate yield limit	Max. spec. min. bending diameter	Dia. of upper roller	Dia. of lower roller	Rolling speed	Main motor power
	mm	mm	mm	Mpa	mm	mm	mm	m/min	kw
TRH-6X2000	6	4	2000	245	600	220	220	5.5	5.5
TRH-8X2500	8	6	2500	245	650	240	240	5	15
TRH-12X2000	12	8	2000	245	700	250	250	5	15
TRH-16X2500	16	12	2500	245	800	330	330	5	18.5
TRH-20X2000	20	16	2000	245	800	320	320	4.5	22
TRH-25X3000	25	20	3000	245	1300	460	460	4	30
TRH-30X2000	30	25	2000	245	1300	420	420	4	30
TRH-40X2000	40	32	2000	245	1500	550	550	3	37
