Three Roller Asymmetrical Plate/Sheet Rolling Machine

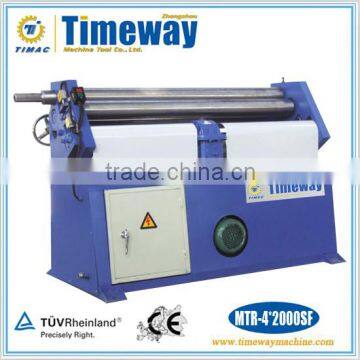

Manual Type: MTR-4*2000SF

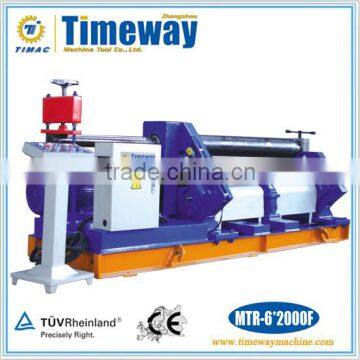

Mechanical Type: MTR-6*2000F

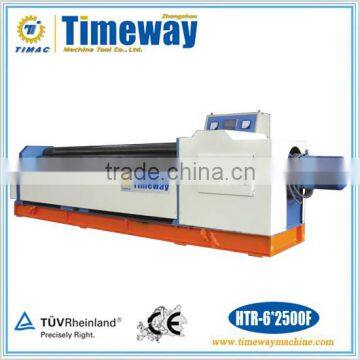

Hydraulic Type: HTR-6*2500F
Features:

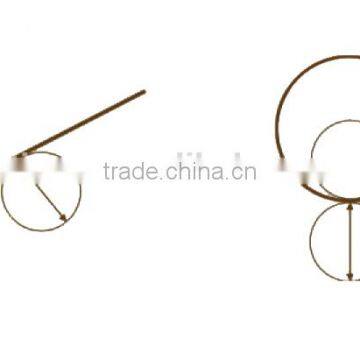

The machine adopts the three-rollers asymmetrical structure with the upper roller as the drive and the lower roller making vertical movement so as to clamp the plate materials tightly. The main comes from the engagement between the gear of the lower roller and the gear pf the upper roller. The side roller makes elevating movements and has the function of preliminary bending and rolling. The machine is characterized with compact structure and convenient operation and maintenance.
Technical Parameters
| Model | Max. thickness (mm) | Max. width (mm) | Yielding limit (Mpa) | Coiling speed (m/min) | Min. full loading diameter of coiled plate (mm) | Diameter of top shaft (mm) | Diameter of bottom shaft (mm) | Central distance between bottom shafts (mm) | Motor power (kw) |
| MTR-2*1000F | 2 | 1000 | 245 | 6 | 250 | 120 | 120 | 120 | 2.2 |
| MTR-2*1200F | 2 | 1200 | 245 | 8.1 | 250 | 120 | 120 | 120 | 2.2 |
| MTR-2*1600F | 2 | 1600 | 245 | 8.1 | 250 | 130 | 130 | 130 | 2.2 |
| MTR-2*2000F | 2 | 2000 | 245 | 8.1 | 250 | 130 | 130 | 130 | 2.2 |
| MTR-4*1000F | 4 | 1000 | 245 | 5.4 | 300 | 140 | 140 | 140 | 3 |
| MTR-4*1200F | 4 | 1200 | 245 | 5.4 | 300 | 140 | 140 | 140 | 3 |
| MTR-4*2000F | 4 | 2000 | 245 | 5.4 | 350 | 150 | 150 | 150 | 3 |
| MTR-6*1000F | 6 | 1000 | 245 | 5.4 | 350 | 140 | 140 | 140 | 3 |
| MTR-6*1500F | 6 | 1500 | 245 | 5.4 | 400 | 150 | 150 | 150 | 4 |
| MTR-6*2000F | 6 | 2000 | 245 | 5.4 | 400 | 160 | 160 | 160 | 4 |
The three roller asymmetrical plate rolling machine have three different drived type for the movement of top roller and side roller. So we divide into three categories: Manual Type, Mechanical Type, Hydraulic Type.

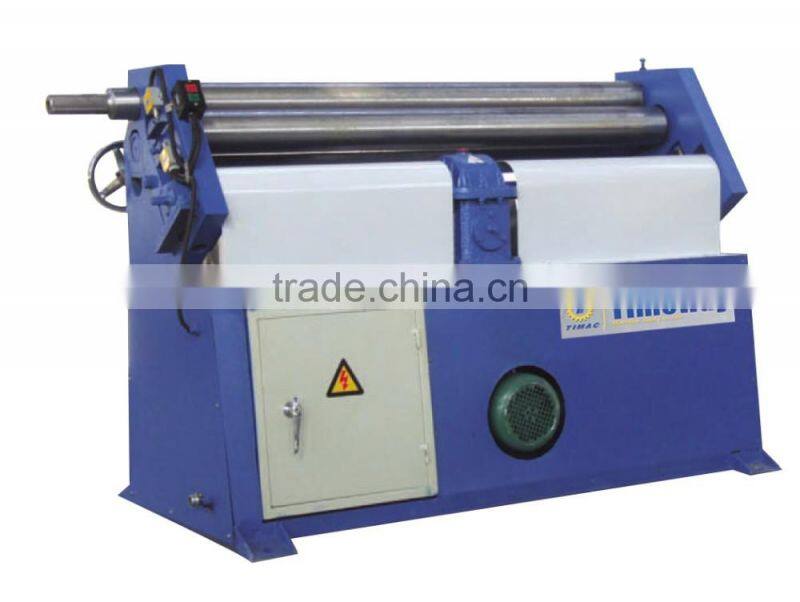

Manual Type

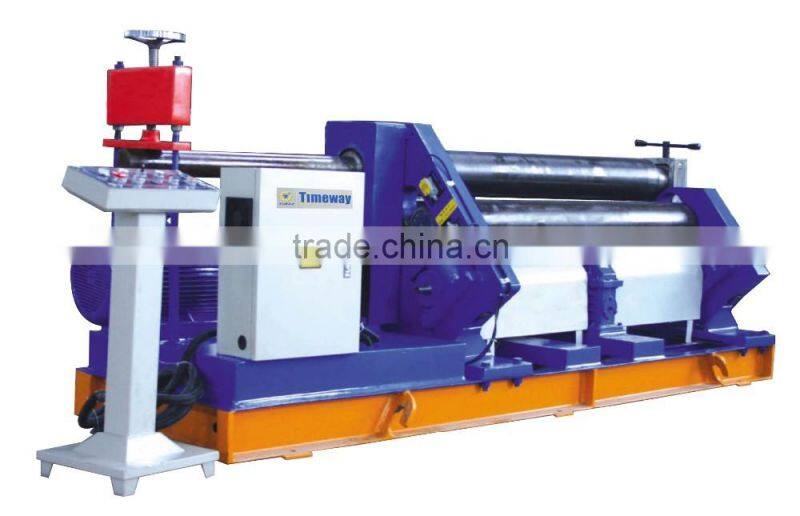

Mechanical Type

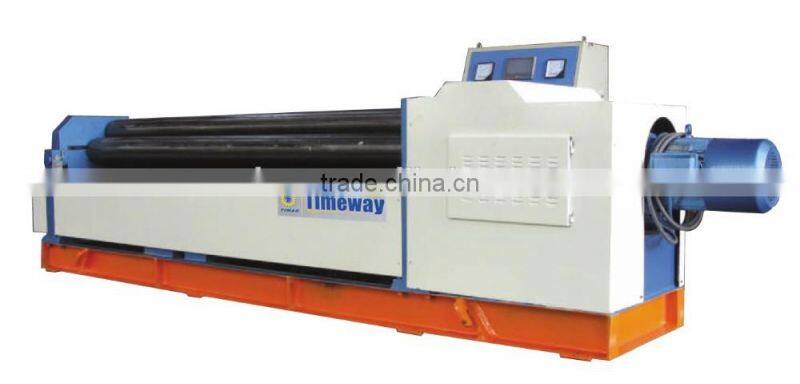

Hydraulic Type
