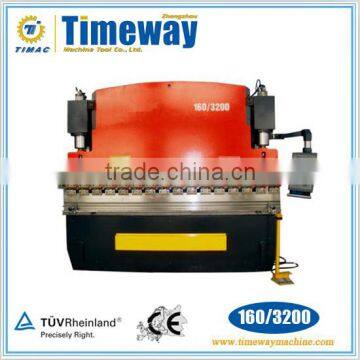

CNC Press Brake / CNC Sheet Metal Bending Machine
Features:
1.Equipped with Delem control sysytem made in Netherland (or Cybelec made in Switzerland). The Special
CNC System, Raster rule, Hydraulic valves, servo motor are all imported with original packaging
2.Adopting reliable electric-hydraulic proportional synchronization servo and its parallielism could reach 0.02mm. It has a strong ability of against unbalance loading.
3.Ram stroke (Y1,Y2) and back gauge (X,R,Z) are controlled by computer.
4.The backgauge adopts ball screw and linear guide way , which act smartly and reliably.with a high precision
of repeat positioning accuracy
Parameter:
Model |
Distance between Housings |
Throat Depth |
Stroke |
Open Height |
Main Motor |
Overall Dimensions |
Weight |
(mm) |
(mm) |
(mm-1) |
(mm) |
(KW) |
(mm) |
(kg) |
|
63/2500 |
2050 |
250 |
120 |
380 |
5.5 |
3000×1895×2480 |
6000 |
80/2500 |
2050 |
250 |
120 |
380 |
7.5 |
3000×1900×2480 |
6200 |
100/3200 |
2650 |
320 |
150 |
420 |
7.5 |
3700×1955×2565 |
8700 |
100/4000 |
3100 |
320 |
150 |
420 |
7.5 |
4500×1955×2855 |
11000 |
125/3200 |
2650 |
320 |
150 |
420 |
7.5 |
3700×1990×2610 |
8900 |
160/3200 |
2650 |
320 |
200 |
485 |
11 |
3700×2050×2915 |
11000 |
160/4000 |
3100 |
320 |
200 |
485 |
11 |
4500×2050×2915 |
12300 |
200/3200 |
2650 |
320 |
200 |
560 |
15 |
3700×2230×2930 |
13000 |
200/4000 |
3100 |
320 |
200 |
560 |
15 |
4500×2230×2930 |
14200 |
250/3200 |
2650 |
400 |
250 |
560 |
15 |
3700×2500×3065 |
15500 |
250/4000 |
3100 |
400 |
250 |
560 |
15 |
4500×2500×3065 |
17000 |
250/5000 |
4000 |
400 |
250 |
560 |
15 |
5500×2500×4160 |
20000 |
300/3200 |
2650 |
400 |
250 |
560 |
22 |
3700×2510×3320 |
19500 |
300/4000 |
3100 |
400 |
250 |
560 |
22 |
4700×2510×3320 |
21000 |
300/6000 |
4800 |
400 |
250 |
560 |
22 |
6500×2560×4560 |
28500 |
400/3200 |
2650 |
400 |
320 |
700 |
30 |
3700×3280×3565 |
22500 |
400/4000 |
3100 |
400 |
320 |
700 |
30 |
4500×3280×3565 |
25000 |
400/6000 |
4800 |
400 |
320 |
700 |
30 |
6500×3280×5300 |
38000 |
500/4000 |
3100 |
500 |
320 |
600 |
30 |
4500×3777×3980 |
38000 |
500/6000 |
4800 |
500 |
320 |
800 |
30 |
6500×3645×5300 |
43000 |
600/6000 |
4800 |
600 |
320 |
1000 |
37 |
6500×3960×5500 |
47000 |
800/6000 |
4800 |
600 |
350 |
1300 |
55 |
6500×7180×6000 |
90000 |
1000/6000 |
4800 |
600 |
400 |
1400 |
2×45 |
6500×8080×6600 |
125000 |
1600/6000 |
4800 |
600 |
450 |
1250 |
2×55 |
6500×8133×6050 |
165000 |
