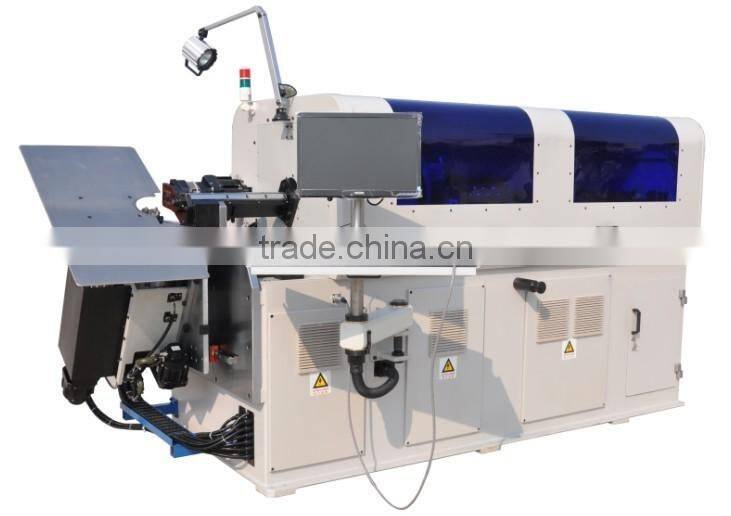

8 Axis CNC Wire Profile Forming Bending Machine
US$ 1,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
WBK-8
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PLC Control Hydraulic Horizontal Down-Adjusting Plate Rolling MachineUS$ 1,000 - 100,000MOQ: 1 Set -
NC Hydraulic Three Roller Symmetrical (Metal Sheet) Plate Rolling MachineUS$ 15,000 - 50,000MOQ: 1 Set
-
Manual or Mechanical or Hydraulic Three Roller Asymmetrical Steel Metal Plate Rolling MachineUS$ 16,000 - 50,000MOQ: 1 Set
-
Mechanical Three Roller Symmetrical Plate Bending Rolling MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
High Efficiency Hydraulic Full Automatic Two Rollers Rolling MachineUS$ 10,000 - 80,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
WBK-8
Machine Type
Coiling Bending Machine
Raw Material
Other, metal wire
Material / Metal Processed
Other, metal
Power
Cnc
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

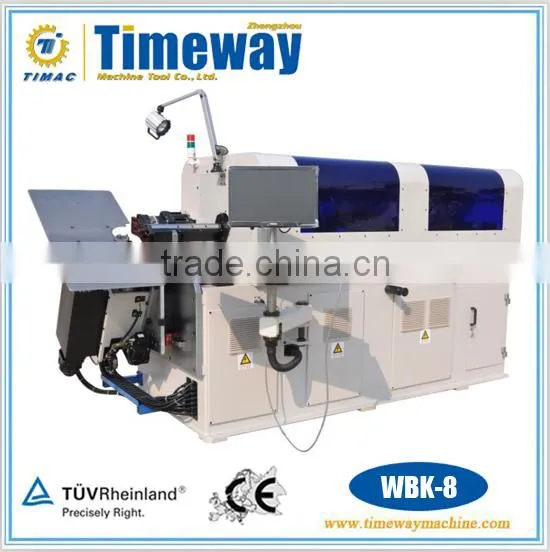

8 Axis CNC Wire Profile Forming Bending Machine
WBK-8
Main Outlook
Product Description
Technical parameter
Axes | Power |
Bending (inside) | 1.3kw |
Bending (outside) | 1.3kw |
Bending (U/D) | 1.3kw |
Bending (L/R) | 1.3kw |
Cutting axis | 1.3kw |
Support table U/D axis | 0.85kw |
Wire feed axis | 3.0kw |
Rotating wire axis | 3.0kw |
Model | WBK-8 |
Wire diameter | Φ2-6mm(soft wire) Φ2-4mm(hard wire) |
Max. wire feeding speed | 54m/min |
Distance between the bending head and machine body | 594mm |
Machine dimension(L*W*H) | 3333*2035*1620mm |
Machine weight | 3000kg |

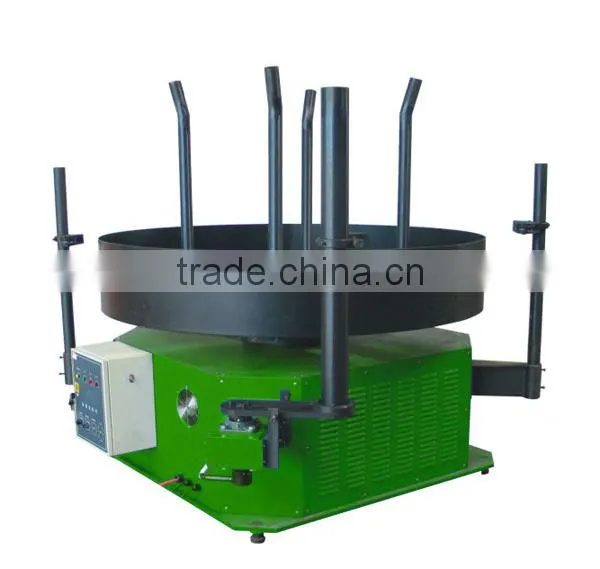

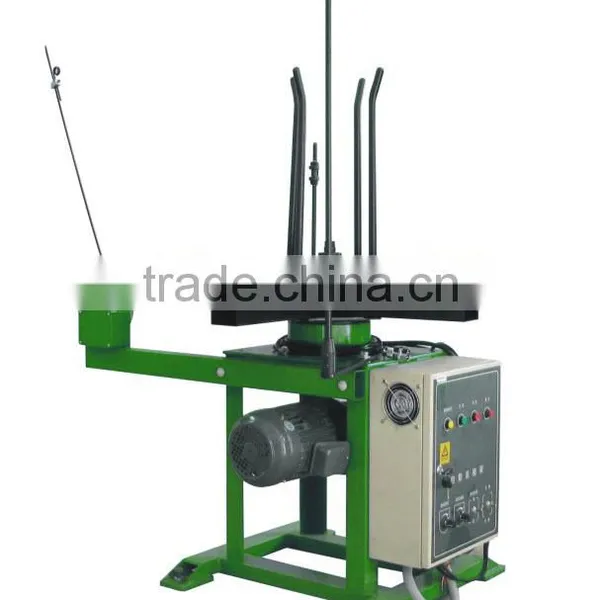

Automatic Decoiler
Model | Load | Reel Tray | Gear Rato | Speed |
FWA-60 | 60kg | 600mm | 1:20 | 70rpm |
FWA-100 | 100kg | 800mm | 1:30 | 45rpm |
FWA-200 | 200kg | 1000mm | 1:30 | 45rpm |
FWA-500 | 500kg | 1200mm | 1:30 | 50rpm |
FWA-1000 | 1000kg | 1500mm | 1:60 | 25rpm |
