Dongfeng kinland unload able garbage truck
1.factory direct sale
2.Certificate ISO9001,3C
3.New design
Specifications:
Main specifications | |||||||||
Product model,name |
SLA5250ZXXDFL6 Garbage Truck With Removable Box |
||||||||
Gross weight(Kg) |
25000 |
Driving type |
6*4 |
||||||
Payload (Kg) |
13570 |
Overall dimension (mm) |
8590×2495×3295 |
||||||
Curb weight(Kg) |
11300 |
cab seats (man) |
3 |
||||||
Approach/departure angle (°) |
20/21 |
Front/rear hang(mm) |
1460/1480 |
||||||
Axle No. |
3 |
Wheelbase (mm) |
4350+1300 |
||||||
Axle load(Kg) |
7000/18000(double axle) |
Max speed(Km/h) |
90 |
||||||
Chassis specifications | |||||||||
Chassis model |
DFL1250A8 |
Manufacture |
Dongfeng Motor Corporation |
||||||
Brand name |
Dongfeng |
Overall dimension (mm) |
9460×2480×3030 |
||||||
Tire specification |
11.00-20 |
Tires No. |
10+1 |
||||||
Steel spring number |
8/9 |
Front track(mm) |
1986 |
||||||
Fuel type |
Diesel |
Rear track(mm) |
1860 |
||||||
Emission standard |
Euro 3 |
Gear box |
9 forward and 1 reverse |
||||||
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
C260 33 |
Dongfeng cummins engine co.,ltd |
8300 |
191 |
||||||
Performance | |||||||||
Body capacity(m³) |
16 |
Box body material |
Q235 carbon steel |
||||||
Discharge Method |
Rear dump |
Operation control system |
Manuel + electric |
||||||
Characteristic | |||||||||
|
1,Detachable Container Garbage Truck also called pull arm garbage truck ; 2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab; 3,The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly; 4,The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency. | |||||||||

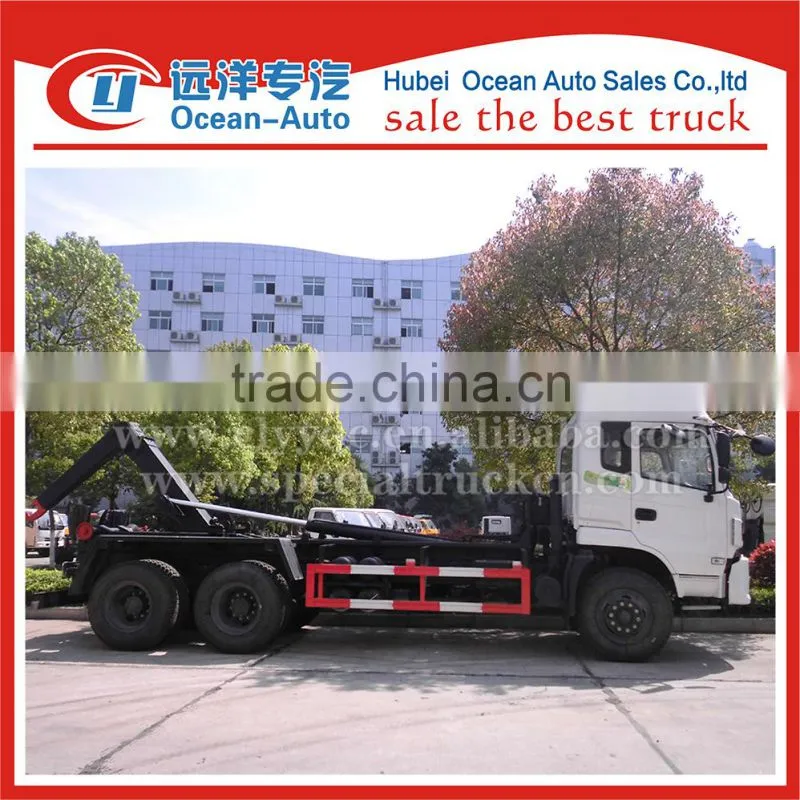

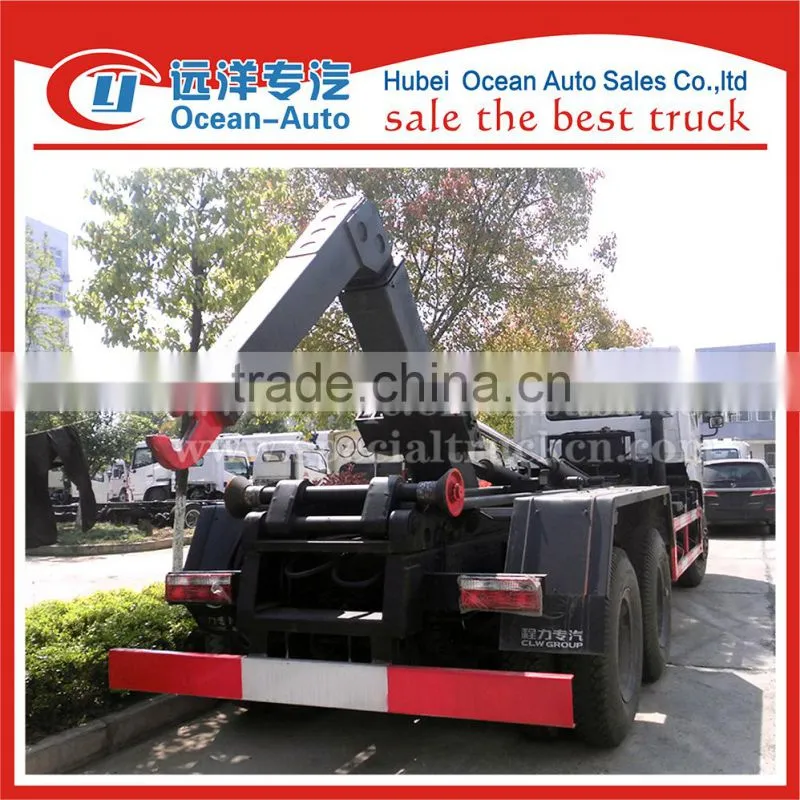

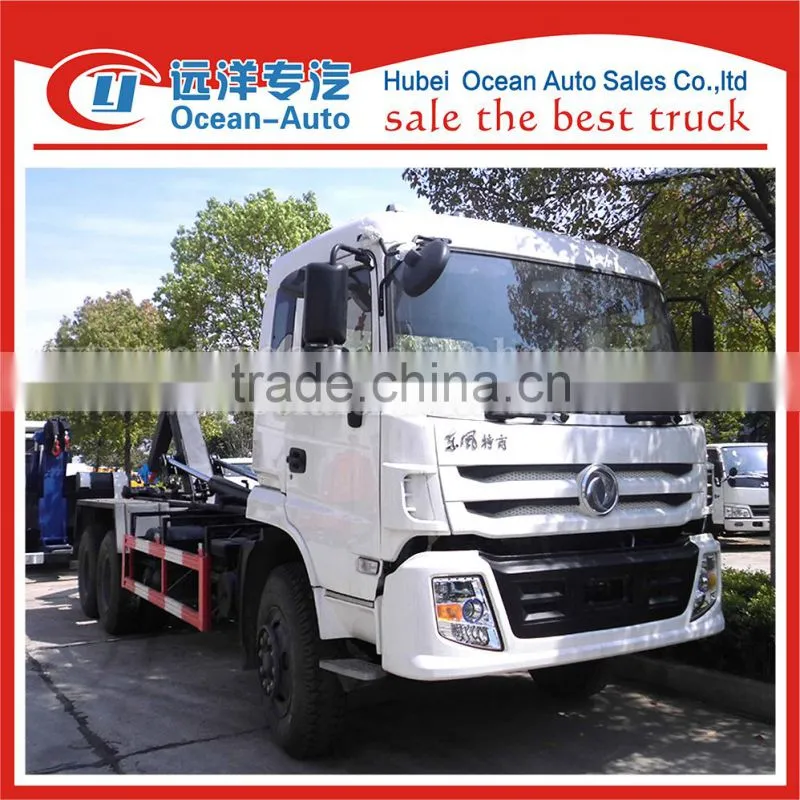

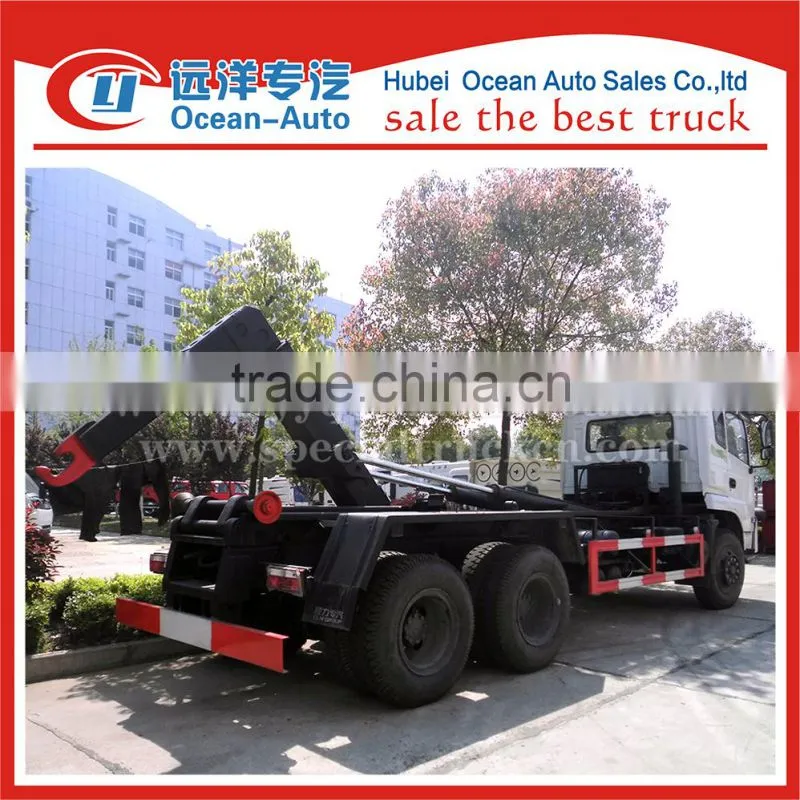

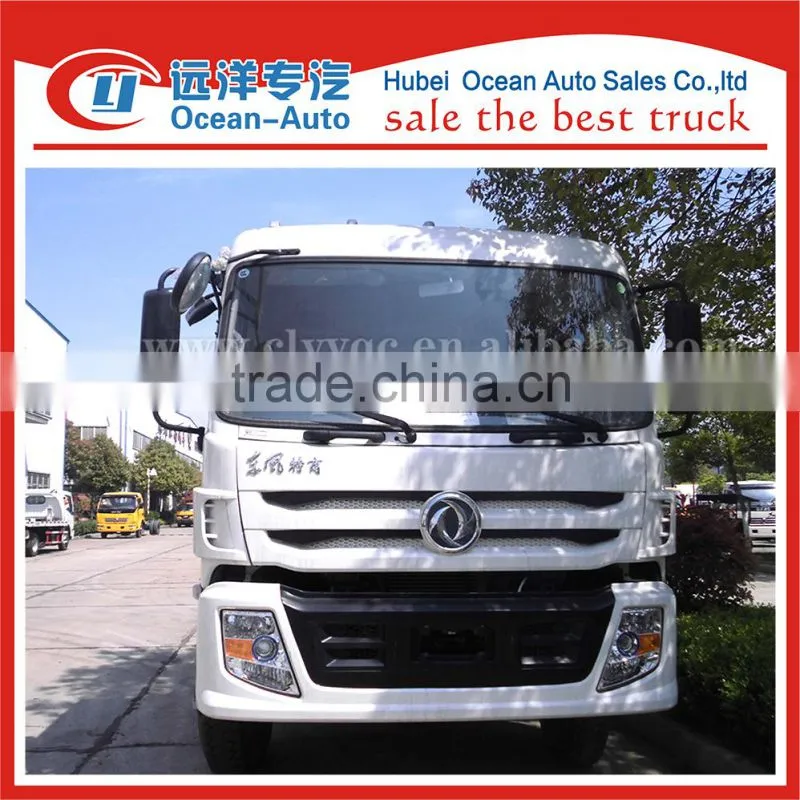

Product pictures:
Pictures About our factory:
