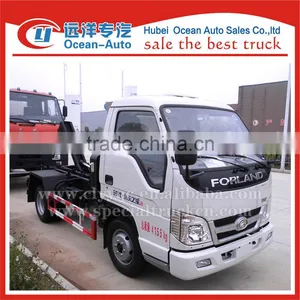

Foton Factory High Quality Arm-hook Garbage Truck

Name: Foton Factory High Quality Arm-hook Garbage Truck
Brand: FOTON
SKU: 140782488
Availability: InStock

US$ 12,000 - 14,000 MOQ: 1 Set

Key Specifications

Condition:

New

Drive Wheel:

4x2

Type:

Recycling

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Drive Wheel 4x2

Type Recycling

Transmission Type Manual

Emission Standard Euro 4

Volume 1000 - 3000L

Fuel Type Diesel

Engine Capacity 1809ml

Size 4560*1690*2080mm

Gross Vehicle Weight 4155

Place of Origin Hubei, China

Brand Name FOTON

Model Number CLQ5040ZXX4BJ

Certification ISO9001-2008 3C

After-sales Service Provided Engineers available to service machinery overseas

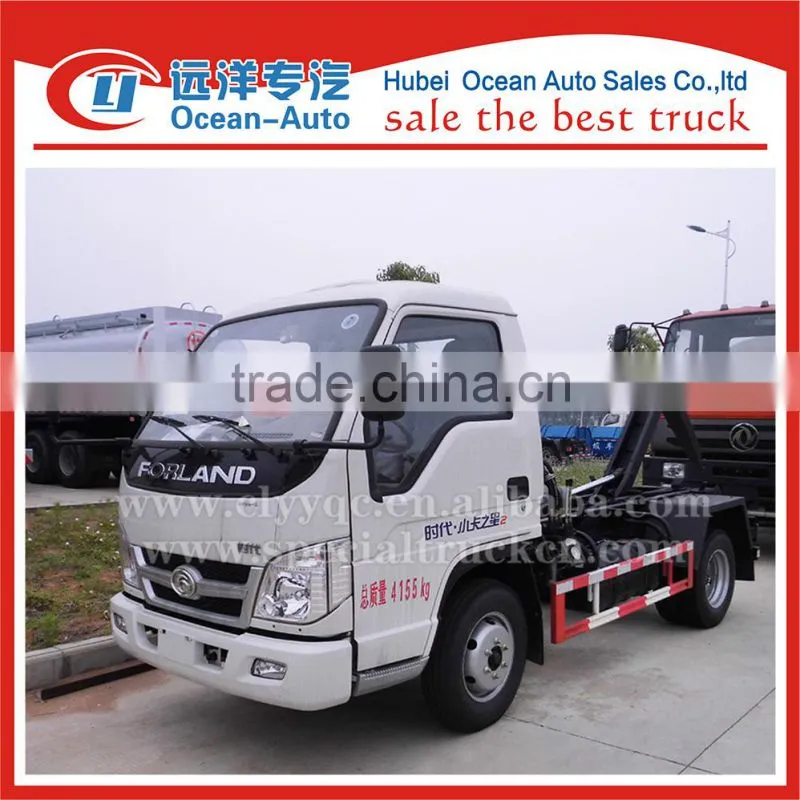

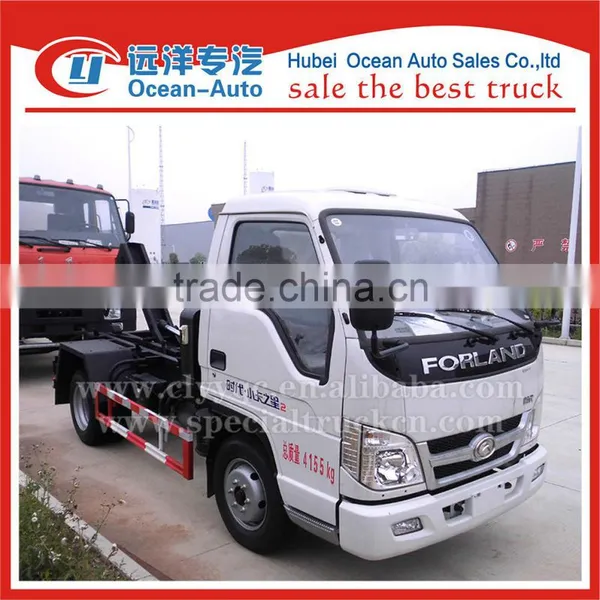

Foton factory high quality arm-hook garbage truck

Specifications:

Main specifications
Product model,name			CLQ5040ZXX4BJ Garbage Truck With Removable Box
Gross weight(Kg)			4155		Driving type			4×2
Payload (Kg)			1300		Overall dimension (mm)			4560×1690×2080
Curb weight(Kg)			2725		cab seats (man)			2
Approach/departure angle (°)			18/22		Front/rear hang(mm)			1100/860
Axle No.			2		Wheelbase (mm)			2600
Axle load(Kg)			1580/2575		Max speed(Km/h)			90
Chassis specifications
Chassis model	BJ1042V9JB4-X1			Manufacture		Foton motor co., LTD
Brand name	FOTON			Overall dimension (mm)		4820×1690×2080
Tire specification	6.00-15 10PR			Tires No.		6
Steel spring number	7/5+3			Front track(mm)		1345
Fuel type	Diesel			Rear track(mm)		1240
Emission standard	Euro 4			Gear box		5 forward and 1 reverse
Engine model	Engine manufacture					displacement(ml)			Power(Kw)
4A1-68C40	Anhui QuanChai power co., LTD					1809			50
Performance
Body capacity(m³)		3.0		Body material			Q235 carbon steel
Discharge Method		Rear dump		Operation control system			Manuel + electric
Characteristic
1,Detachable Container Garbage Truck also called pull arm garbage truck ; 2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab; 3,The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly; 4,The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency.
