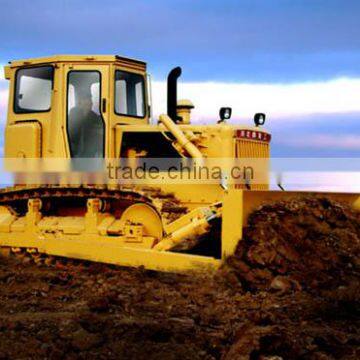

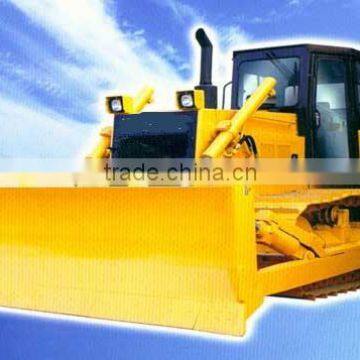

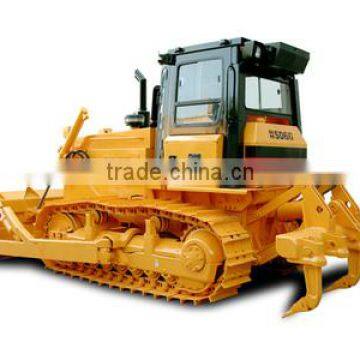

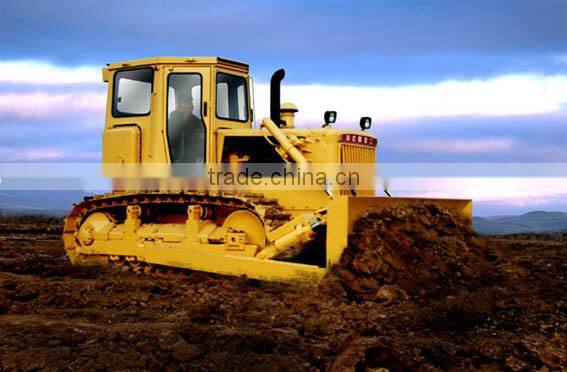

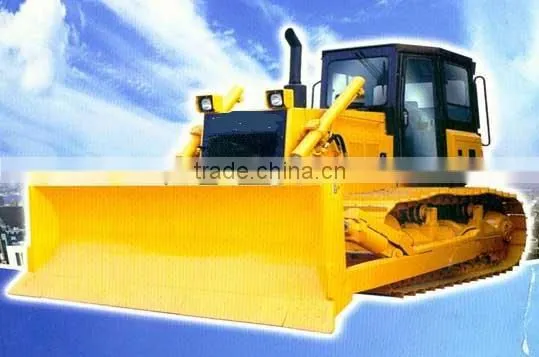

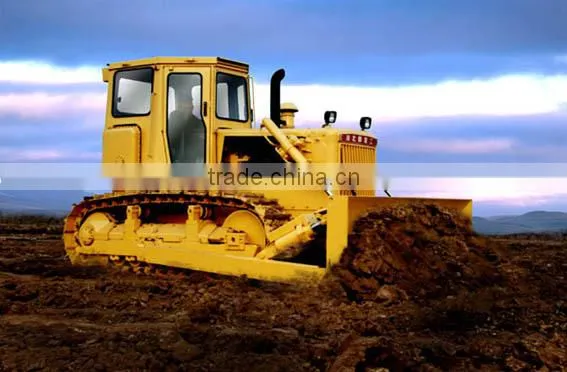

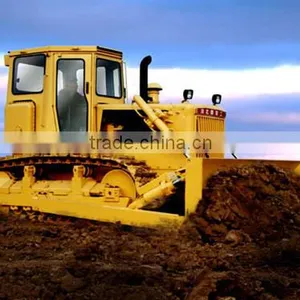

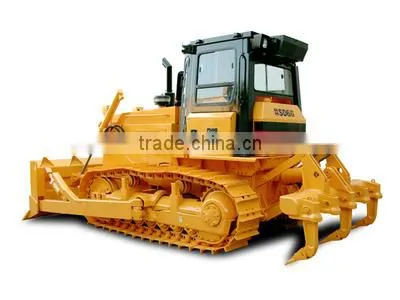

Mini Hydraulic Bolldozer For Sale
Dozer | Tilt | ||
(not including ripper) Operation weight | 16500kg | ||
Ground pressure | 55.23KPa | ||
Track gauge | 1880mm | ||
Gradient | 30°/25° | ||
Min. ground clearance | 445mm | ||
Dozing capacity | 4.5m³ | ||
Blade width | 3297mm | ||
Max. digging depth | 592mm | ||
Overall dimensions | 5037×3297×3077mm | ||
Type | SC C6121ZG55 | ||
Rated revolution | 1900rpm | ||
Flywheel power | 119/162KW/HP | ||
Max. torque | 700/1400N•m/rpm | ||
Rated fuel consumption | ≤215g/KW•h | ||
Type | Swing type of sprayed beam. Suspended structure of equalizer bar | ||
Number of track rollers (each side) | 7 | ||
Number of carrier rollers (each side) | 2 | ||
Pitch | 203mm | ||
Width of shoe | 560mm | ||
| 1st | 2nd | 3rd |
Forward | 0-4.0Km/h | 0-6.9Km/h | 0-10.9Km/h |
Backward | 0-4.8Km/h | 0-8.4Km/h | 0-12.9Km/h |
Max. system pressure | 15.5MPa | ||
Pump type | Gears pump | ||
System output | 178L/min | ||
Torque converter | Outside separating combination | ||
Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse,speed and direction can be quickly shifted. | ||
Steering clutch | Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated. | ||
Braking clutch | Brake is oil two direction floating band brake operated by mechanical foot pedal. | ||
Final drive | The final drive are double reduction with spur gear and segment sprocket. | ||
Features:
1.SD6G bulldozer is 160 horsepower track-type dozer with hydraulic direct drive.
semi-rigid suspended and hydraulic controls.
2. It is equipped with Shangchai C6121 diesel engine manufactured under Caterpillar license.
3.The engine has the characteristics of big torque reserve coefficient and capacity against over-load.
Packaging: Mini Hydraulic Bolldozer For Sale is shipped by container.
Delievery time:30days after receving desposit.
Pre-sale:we can help you select the product that you need and answer all kinds of problems you want know.
During production:we can provide a production schedule for you.
After sale:our warranty is 1 year.
Our company Shandong Hantang Machine Company Limited is engaged in exporting the heavy duty truck , large machinery and auto parts product. SINOTRUK, SHACMAN, XCMG,ZOOMLION are our important export partners.
Our main products include Forklift,Wheel loader,Crane,Excavator,Dump truck,Road roller,Bulldozer,Cargo truck and so on.You can look through from alibaba and you can contact us at any time.
Q1:What are your payment terms and trade terms?
A:Our payment terms is T/T or L/C,
Our trade terms is FOB or CIF.
Q2:Can I print my own logo?
A:Yes,we provide one-on-one designing assistance.
