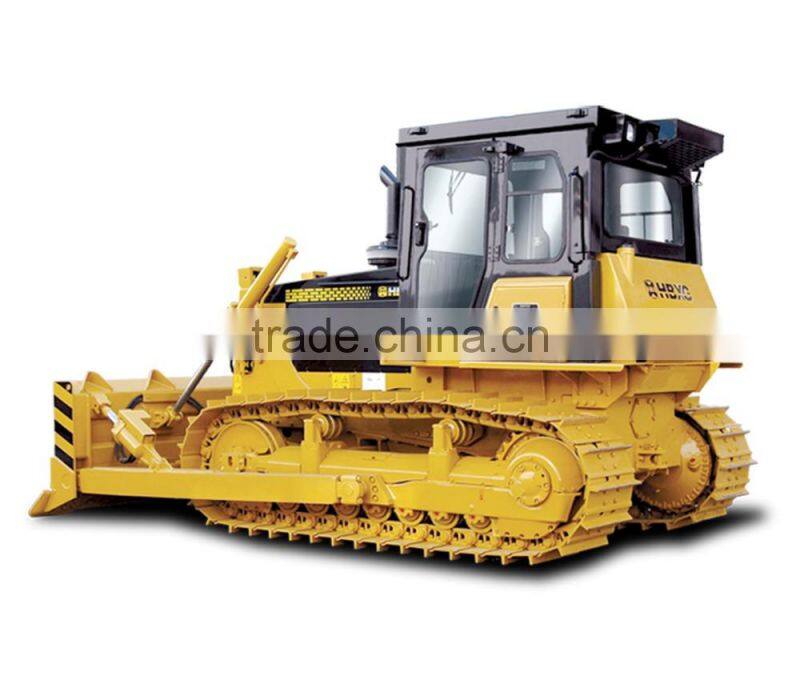

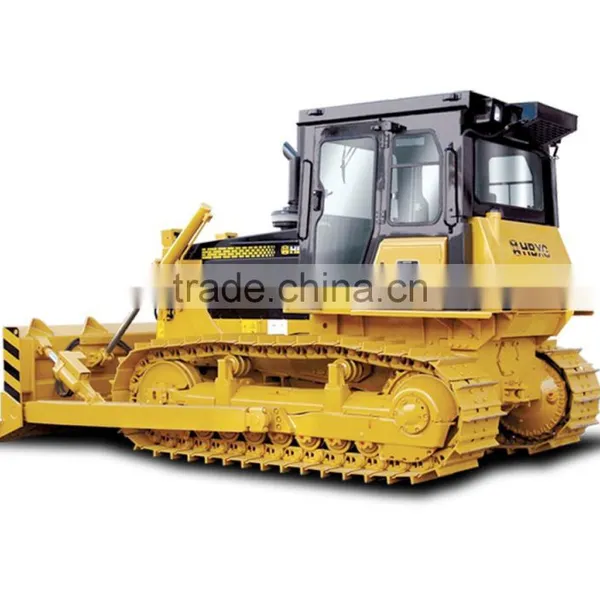

Shantui Earth Moving SD6G Crawler Bulldozer Price For Sale
shantui bulldozer for sale Specification:
Dozer |
Tilt |
||
(not including ripper) Operation weight |
16500kg |
||
Ground pressure |
55.23KPa |
||
Track gauge |
1880mm |
||
Gradient |
30°/25° |
||
Min. ground clearance |
445mm |
||
Dozing capacity |
4.5m³ |
||
Blade width |
3297mm |
||
Max. digging depth |
592mm |
||
Overall dimensions |
5037×3297×3077mm |
||
Type |
SC C6121ZG55 |
||
Rated revolution |
1900rpm |
||
Flywheel power |
119/162KW/HP |
||
Max. torque |
700/1400N•m/rpm |
||
Rated fuel consumption |
≤215g/KW•h |
||
Number of track rollers (each side) |
7 |
||
Number of carrier rollers (each side) |
2 |
||
Pitch |
203mm |
||
Width of shoe |
560mm |
||
Max. system pressure |
15.5MPa |
||
Pump type |
Gears pump |
||
System output |
178L/min |
||
Torque converter |
Outside separating combination |
||
Transmission |
Planetary, power shift transmission with three speeds forwardand three speeds reverse, speed and direction can be quickly shifted. |
||
Steering clutch |
Multipledisc oil power metallurgy disc compressed by spring. hydraulic operated. |
||
Braking clutch |
Brake is oil two direction floating band brake operated by mechanical foot pedal. |
crawler bulldozer price for sale
1.SD6G bulldozer is 160 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic controls.
2.It is equipped with Shangchai C6121 diesel engine manufactured under Caterpillar license.
The engine has the characteristics of big torque reserve coefficient and capacity against over-load.
3.Steering and braking can be controlled with the same control lever. Braking system utilizes hydraulic
boosting structure, which is convenient and labor-saving.
earth moving dozer

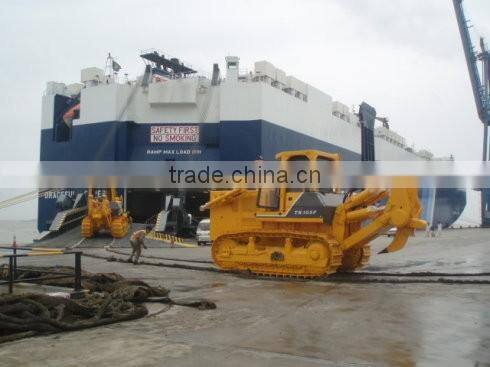

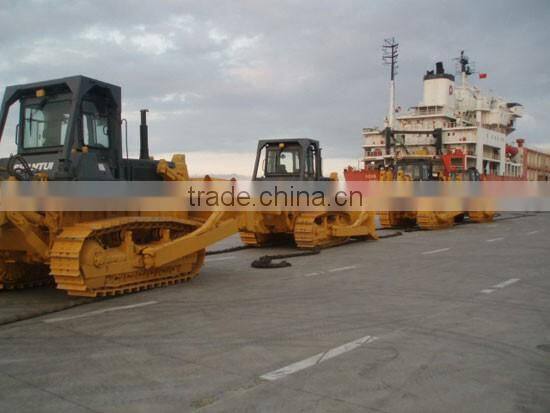

Packaging:Naked packaging,It is shipped by roll-on roll-off ship.
Shipping port: Usually is Qingdao port,within 30days after receiving the deposit of SD6G crawler bulldozer.
Shantui Earth Moving SD6G Crawler Bulldozer Price For Sale Serives:
1.One year warranty.
2.7x24hours hot service line.
3.If out of warranty, we provide spare parts with cost price.
4.We provide training for clients.
5.We have engineer on line to guide you how to operate the trucks and daily maintenance.
Crawler bulldozer for sale
Q1.Where have your products been sold to?
A:Our product have been exported all over the vering Asia,Africa,South America,Oceania ZXC and
parts of Europe and the United States.
Q2.What’s your annual production capacity?
A:Different type of truck have different production capacity,
usually annual product capacity around 10000 sets.
Q3.What dose your factory do regarding quality control?
A:Quality is priority!our factory strictly implements ISO9001 quality control system.
