Mini Bulldozer With Cheap Price
Dozer | Tilt | ||
Operation weight (not including ripper) | 23800kg | ||
Ground pressure (including ripper) | 71.9KPa | ||
Track gauge | 1980mm | ||
Gradient | 30°/25° | ||
Min. ground clearance | 404mm | ||
Dozing capacity | 8.4m³ | ||
Blade width | 3500mm | ||
Max. digging depth | 498mm | ||
Overall dimensions (not include ripper) | 5677×3500×3402mm | ||
Overall dimensions ( include ripper) | 7616x3500x3402 | ||
Type | Cummins NTA855-C280S10 | ||
Rated revolution | 2100rpm | ||
Flywheel power | 169/230 KW/HP | ||
Max. torque | 1097/150 (N•m/rpm) | ||
Rated fuel consumption | ≤235g/KW•h | ||
Type | The track is triangle shape. The sprocket is elevated elastic suspended. | ||
Number of track rollers (each side) | 7 | ||
Pitch | 216 | ||
Width of shoe | 560 mm | ||
| 1st | 2nd | 3rd |
Forward | 0-3.9Km/h | 0-6.5Km/h | 0-10.9Km/h |
Backward | 0-4.8Km/h | 0-8.2Km/h | 0-13.2Km/h |
Max. system pressure | 18.6MPa | ||
Pump type | High pressure gears pump | ||
System output | 194 L/min | ||
Features:

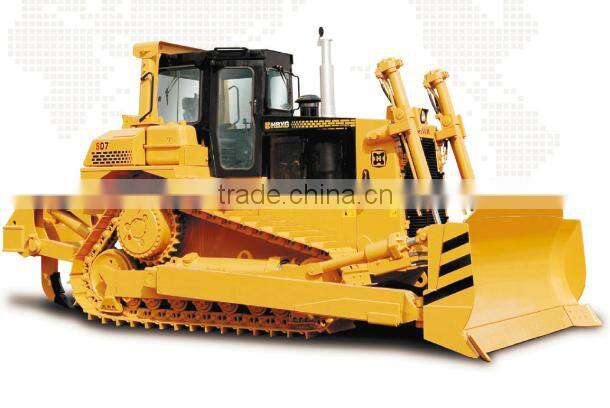

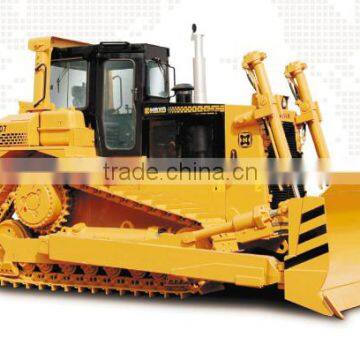

1.SD7 bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive,
semi-rigid suspended and hydraulic controls.
2.SD7-230 horsepower, elevated sprocket bulldozer integrate with modular design is
easy to repair & maintenance,
3.It relieves oil with difference pressure, the hydraulic system performs protecting
environment and save energy with high working efficiency.
Packaging: Mini Bulldozer With Cheap Price is nude packaging.
Shipping: Mini Bulldozer With Cheap Price is shippd by RORO.
Delievery Time:30days after receving desposit.
1.Pre-sale:we can help you select the product that you need and answer all kinds of problems you want know.
2.During production:we can provide a production schedule for you.
3.After sale:our warranty is 1 year.
4.We can according to your need provide options.
5.We provide 24 hours online service,you can contact us at your convenience time.
Our company Shandong Hantang Machine Company Limited is engaged in exporting the heavy duty truck ,
large machinery and auto parts product. SINOTRUK, SHACMAN, XCMG,ZOOMLION are our important
export partners.
Our main products include Forklift,Wheel loader,Crane,Excavator,Dump truck,Road roller,Bulldozer,
Cargo truck and so on.You can look through from alibaba and you can contact us at any time.
Q1:What are your payment terms and trade terms?
Our payment terms is T/T or L/C,
Our trade terms is FOB or CIF.
Q2:Can I print my own logo?
Yes,we provide one-on-one designing assistance.
