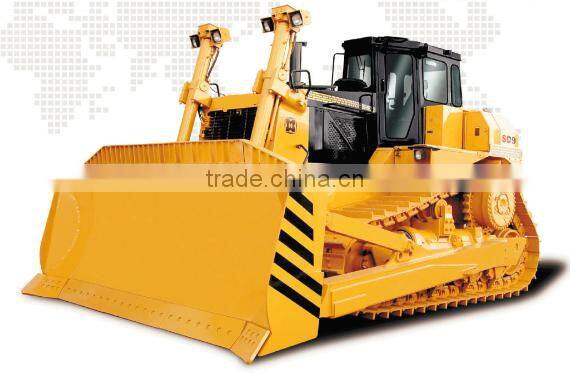

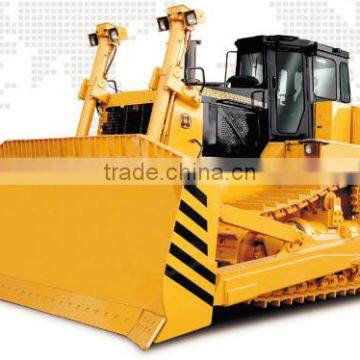

SD9 430HP Crawler Bulldozer For Sale
bulldozer for sale
Dozer |
Tilt |
||
Operation weight (including ripper) |
48880kg |
||
Ground pressure (including ripper) |
112KPa |
||
Track gauge |
2250mm |
||
Gradient |
30°/25° |
||
Min. ground clearance |
517mm |
||
Dozing capacity |
13.5m³ |
||
Blade width |
4314mm |
||
Max. digging depth |
614mm |
||
Overall dimensions(include ripper) |
8478×4314×3970mm |
||
Engine Type |
Cummins KTA19-C525S10 |
||
Rated revolution |
1800rpm |
||
Flywheel power |
316/430 KW/HP |
||
Torque storage coefficient |
18% |
||
Rated fuel consumption |
≤215g/KW•h |
||
Number of track rollers (each side) |
8 |
||
Pitch |
240 |
||
Width of shoe |
610 mm |
||
Max. system pressure |
18.3MPa |
||
Pump type |
Double vane pump |
||
System output |
358 L/min |
||
Torque converter |
power separating hydraulic-mechanic type |
||
Transmission |
Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. |
||
Steering clutch |
Hydraulic pressed, usually separated clutch. . |
||
Braking clutch |
Pressed by spring, separated hydraulic, meshed type. |
||
Final drive |
Two-stage planetary reduction gear mechanism, splash lubrication. |
Crawler bulldozer sd9
1.SD9 bulldozer:semi-rigid elasticity suspendin ,hydraulic mechanical transmission ,elevated sprocket track type.
2.Wholly hydraulic operation,pilot hydraulic controlling blade operation,portable laborsaving nicety man-
machine designing controlling system, electric monitoring, ROPS cabin.
3.Many optional equipments, broadly used in transport, desert, oil field, power station, mine, swamp etc.
large-scale stone construction. You can select original American Cummins engine, emission standard
meet with Tire 3 with lower fuel consumption and stronger power output.
430hp bulldozer for sale
Packaging:Naked packaging
Shipping:Crawler bulldozer SD9 is usually shipped by ro-ro ship.
Delivery:within 30days after receiving deposit of SD9 Bulldozer .
HBXG SD9 430HP Crawler Bulldozer For Sale
1.One year warranty.
2.7x24hours hot service line.
3.If out of warranty, we provide spare parts with cost price.
4.We provide training for clients.
5.We have engineer on line to guide you how to operate the trucks and daily maintenance.
6.Fast spare parts support.No matter where you are,the part will reach you within 7days.
HBXG SD9 430HP Crawler Bulldozer
Q1.What are your payment terms and trade terms?
Payment terms:T/T,L/C,Trade terms: FOB/CIF
Q2.What is the minimum quantity for your company?
Our company min order quantity is 1 unit .
Q3.What time is the shipment date of your company?
Our shipping date is usually 30days after receiving deposit.
