2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale

2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale thumbnail-1
2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale thumbnail-2
2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale thumbnail-3
2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale thumbnail-4
2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale photo-1
2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale photo-2

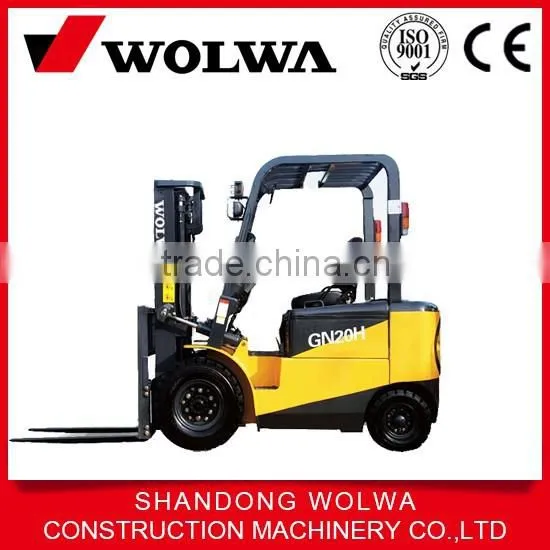

2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale photo-3

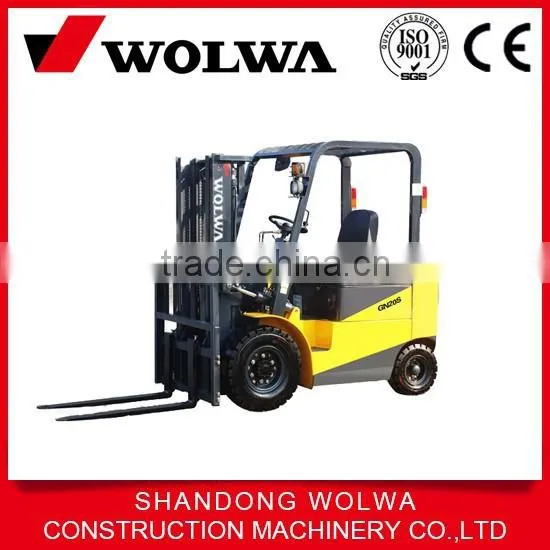

2 Ton Electric Forklift With Max Lifting Height 3 Meter for Sale photo-4
US$ 6,000 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
WOLWA
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name WOLWA
Model Number GN20D
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 2 kg
Max. Lifting Height 3000 mm
Min. Lifting Height 125mm
Fork Length 2137mm
Fork Width 2010mm
Overall Dimensions 3445MM1160MM 3210MM
Certification iso
After-sales Service Provided Engineers available to service machinery overseas



Product Description

   1.5 ton max lifting height 3 meter electric forklift



1. The excellent low speed and large torque DC lifting motor

2. It adopts excellent low speed DC motor and low noise gear pump and removes the steering motor and steering oil pump,

which achieves single pump bypass flow and reduces the noise

3. The advanced and reliable electric control system features high efficiency, low heat, low noise, as well as overheating protection, heating compensation, and overvoltage and low-voltage protection

4. In addition to the protection for electric control system, it also has other protection functions like improper operating sequence protection, seat power-off protection, travel brake steering retaining, etc.

5. The multifunctional interface-friendly interactive instruments can accurately display the electric quantity of battery, work time and trouble code, etc.

2 ton electric forklift with max lifting height 3 meter for sale2 ton electric forklift with max lifting height 3 meter for sale



Specification

Model

GN20D



Rated load weight

2000

Kg

Load center distance

500

mm

Power system

battery

Size

Lifting height

3000

mm

Mast Tilt Angle(Front/Rear)

6/12

deg

dimension

Overall length

3445

mm

Overall width

1160

mm

Overall height

2130

mm

Minimum turning radious

2050

mm

function

Max travelling speed(full load/empty load)

12/14

Km/h

Max lifting speed(full load/empty load)

265/435

mm/sec

Max climbing ability

15

%

weight

4050

kg

chassis

Tire(high elastic solid tire)

front

7.00-12-12PR

rear

18×7-8-14PR

Wheel base

1500

mm

battery

voltage/capacity

48/600

V/Ah

Electric motor and control

Drive electric motor power

 8(DC)

Kw

Pump electric motor power

 10(DC)

Kw

Control type

MOSpipe

Kw/rpm






 2 ton electric forklift with max lifting height 3 meter for sale



For anything,pls call me




Characteristics
