high quality powerful battery type mini electric forklift

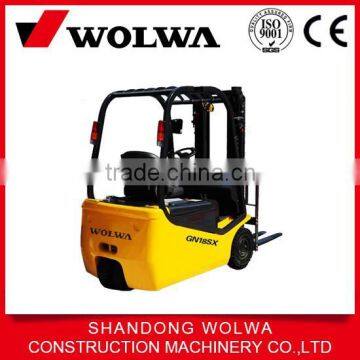

electric fork-liftGN18SX introduction
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no
pollution, easy operation, energy efficient.The operator's work intensity is much lighter than
internal-combustion forklift,The electric steering system,Speed control system,hydraulic control
system,braking systems Are controlled by electrical signals,Greatly reduces the labor intensity of
operators,So this supply big help to improve its efficiency and the accuracy of work .
electric fork-liftGN18SX characteristic
1.Reliable performance of the ac motor and ac pump motor, no carbon brush and free maintenance
2.CAN bus technology, reduce the wiring, the reliability of communication signal transmission
3.The vehicle structure is compact, small shape, small bending radius, good maneuverability, the operating system is designed according to the man-machine engineering, operation comfortable.
4.the advanced Double drive technology.
5.Reduce before hanging from,Increase the wheelbase,Longitudinal stability is extremely good.
6.Regenerative brake.
Main parameter
| Characteristics | Model | GN18SX | ||
| Capacity | 1800 | kg | ||
| Load center | 500 | mm | ||
| Power type | Battery | |||
| Dimensions | Total length (with/without fork) | 2864/1944 | mm | |
| Total width | 1070 | mm | ||
| Total height | 2050 | mm | ||
| Mast height | 2050 | mm | ||
| Max. height | 3945 | mm | ||
| Lift height | 3000 | mm | ||
| Free lift height | 135 | mm | ||
| Ground clearance | 85 | mm | ||
| Wheel & tire | Front overhang | 370 | mm | |
| Wheel base | 1386 | mm | ||
| Rear overhang | 189 | mm | ||
| Fork adjustment | 200/940 | mm | ||
| Front tread | 898 | mm | ||
| Rear tread | 170 | mm | ||
| Performance | Min. turning radius | 1580 | mm | |
| Mast tilting angle | 5/7 | o | ||
| Battery(voltage/capacity) | 48/480 | V/Ah | ||
| Travel speed(with/without load) | 12/13 | Km/h | ||
| Lift speed (with load) | 280 | mm/sec | ||
| Max. gradeability | 15 | % | ||
| Battery weight | 864 | kg | ||
| Tire | Front | 18×7-8 | ||
| Rear | 15×4.5-8 | |||
| Service weight | 3050 | kg | ||
