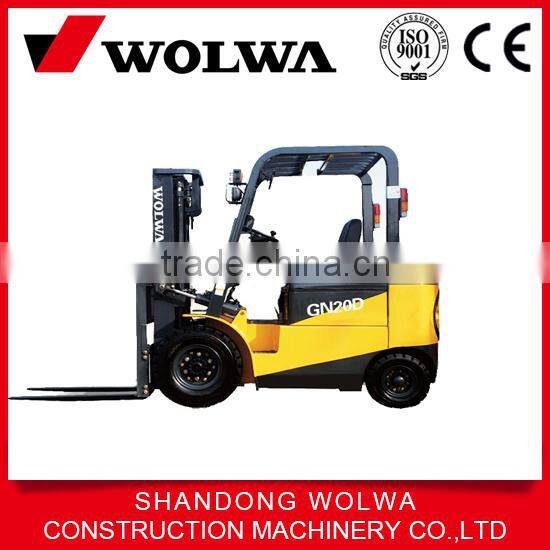

battery type 2 ton rated capacity forklift for sale
electric fork-lift GN20D introdcution
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no
pollution, easy operation, energy efficient.The operator's work intensity is much lighter than
internal-combustion forklift,The electric steering system,Speed control system,hydraulic control system,
braking systems Are controlled by electrical signals,Greatly reduces the labor intensity of operators,
So this supply big help to improve its efficiency and the accuracy of work .
electric fork-lift GN20D characteristic
1.Performance of low speed high torque dc series hoisting motor.
2.The performance of dc motor at low speed and low noise of gear pump,Cancel the steering motor and oil
pump,To achieve single pump bypass,Lowering the hoisting and in the form of noise of the vehicle.
3.Advanced and reliable electric control system,High efficiency and low fever, little noise,With thermal
protection and thermal compensation, overvoltage, undervoltage protection.
4.In addition to the electronic control system protection function,The vehicle also has the operating
sequence protection,Seat power-off protection,Brake to keep driving, and other functions.
Main parameter
| Characteristics | Model | GN20D | UNIT | |
| Capacity | 2000 | kg | ||
| Load center | 500 | mm | ||
| Power type | Battery | |||
| Dimensions | Total length (with/without fork) | 3445/2400 | mm | |
| Total width | 1160 | mm | ||
| Total height | 2130 | mm | ||
| Mast height | 1990 | mm | ||
| Max. height | 4030 | mm | ||
| Lift height | 3000 | mm | ||
| Free lift height | 80 | mm | ||
| Ground clearance | 140 | mm | ||
| Wheel & tire | Front overhang | 510 | mm | |
| Wheel base | 1500 | mm | ||
| Rear overhang | 392 | mm | ||
| Fork adjustment | 245/1020 | mm | ||
| Front tread | 980 | mm | ||
| Rear tread | 950 | mm | ||
| Performance | Min. turning radius | 2050 | mm | |
| Mast tilting angle | 6/12 | o | ||
| Battery(voltage/capacity) | 48/600 | V/Ah | ||
| Travel speed(with/without load) | 12/14 | Km/h | ||
| Lift speed (with load) | 265 | mm/sec | ||
| Max. gradeability | 15 | % | ||
| Battery weight | 1120 | kg | ||
| Tire | Front | 7.00-12-12PR | ||
| Rear | 18×7-8-14PR | |||
| Service weight | 4150 | kg | ||
