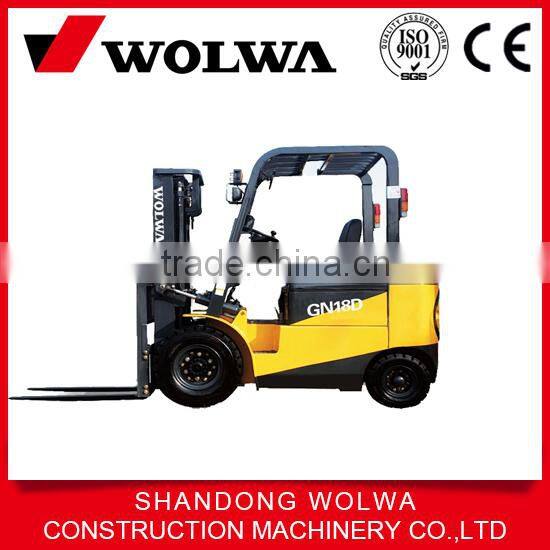

small electric forklift from china
electric fork-lift GN18D introduction
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no
pollution, easy operation, energy efficient.The operator's work intensity is much lighter
than internal-combustion forklift,The electric steering system,Speed control system,hydraulic
control system,braking systems Are controlled by electrical signals,Greatly reduces the labor
intensity of operators,So this supply big help to improve its efficiency and the accuracy of work .
electric fork-lift GN18D characteristic
1. performance of low speed high torque dc series hoisting motor.
2.The performance of dc motor at low speed and low noise of gear pump,Cancel the steering motor
and oil pump,To achieve single pump bypass,Lowering the hoisting and in the form of noise of the vehicle.
3.Advanced and reliable electric control system,High efficiency and low fever, little noise,With thermal
protection and thermal compensation, overvoltage, undervoltage protection.
4.In addition to the electronic control system protection function,The vehicle also has the operating
sequence protection,Seat power-off protection,Brake to keep driving, and other functions.
5.User-friendly interactive multifunction meter,Appearance is beautiful,Can accurately display battery power,
working time, fault code, etc
Main parameter
| Specification | Model | GN18D | |||
| Rated load weight | 1800 | Kg | |||
| Load center distance | 500 | mm | |||
| Power system | battery | ||||
| Size | Lifting height | 3000 | mm | ||
| Mast Tilt Angle(Front/Rear) | 6/12 | deg | |||
| dimension | Overall length | 3137 | mm | ||
| Overall width | 1100 | mm | |||
| Overall height | 2090 | mm | |||
| Minimum turning radious | 1900 | mm | |||
| function | Max travelling speed(full load/empty load) | 11/13 | Km/h | ||
| Max lifting speed(full load/empty load) | 380/410 | mm/sec | |||
| Max climbing ability | 15 | % | |||
| weight | 3430 | kg | |||
| chassis | Tire | front | 6.50-10NHS | ||
| rear | 5.00-8-8PR | ||||
| Wheel base | 1380 | mm | |||
| battery | voltage/capacity | 48/440 | V/Ah | ||
| Electric motor and control | Drive electric motor power | 6.3(DC) | Kw | ||
| Pump electric motor power | 8.2(DC) | Kw | |||
| Control type | MOSpipe | Kw/rpm | |||
About Us
We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.
We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our
pruducts.We are also pleased to welcome you to visit our factory.^^
contact:
skype:wolwahannah
QQ:2745940132
TEL:86-15205378664
