electric forklift from china direct supplier

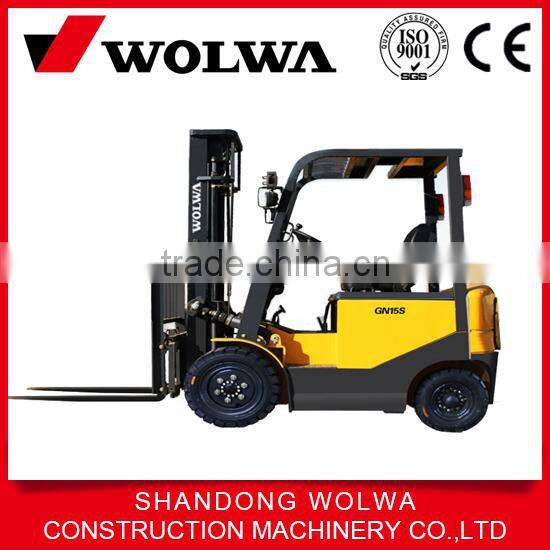

electric fork-lift GN15S intraduction
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no
pollution, easy operation, energy efficient.The operator's work intensity is much lighter than
internal-combustion forklift,The electric steering system,Speed control system,hydraulic control
system,braking systems Are controlled by electrical signals,Greatly reduces the labor intensity of
operators,So this supply big help to improve its efficiency and the accuracy of work .
electric fork-lift GN15S characteristic
1.Reliable performance of the ac motor and ac pump motor, no carbon brush and free maintenance
2.CAN bus technology, reduce the wiring, the reliability of communication signal transmission
3.Regenerative recovery system, environmental protection and energy saving.
4.Were placed horizontally drive motor, storage battery sink to the bottom frame, stability is good
5.Use large capacity battery, work longer hours.
Main parameter
| Specification | Model | GN15S | Unit | ||
| Rated load | 1500 | Kg | |||
| Load center | 500 | mm | |||
| Type | Battery | ||||
| Size | Lifting height | 3000 | mm | ||
| Mast tilt F/R | 6/12 | deg | |||
| Dimension | Total length | 3137 | mm | ||
| Total width | 1100 | mm | |||
| Total height | 2090 | mm | |||
| Min. turning radius | 1900 | mm | |||
| Performance | Max. travel speed (full load/idle load) | 12/13 | Km/h | ||
| Max. lifting speed (full load/idle load) | 280/430 | mm/s | |||
| Max. Grade ability | 15 | % | |||
| Machine weight | 3280 | kg | |||
| Chassis | Tyre | Front wheel | 6.50-10NHS | ||
| Rear wheel | 5.00-8-8PR | ||||
| Axle base | 1380 | mm | |||
| Battery | Voltage/capacity | 48/440 | V/Ah | ||
| Electric motor and control | Power of drive motor | 7.5(AC) | Kw | ||
| Power of pump motor | 9.2(AC) | Kw | |||
| Control mode | MOS tube | Kw/rpm | |||
About Us

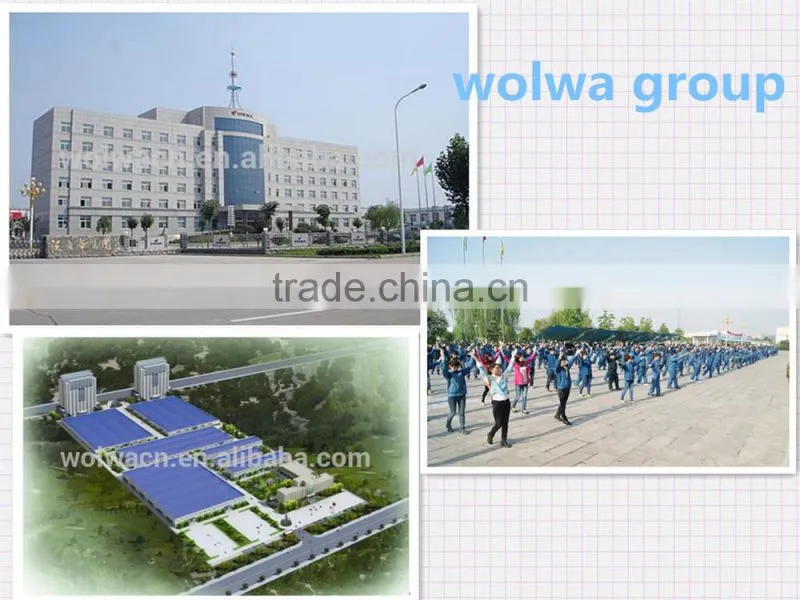

We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.

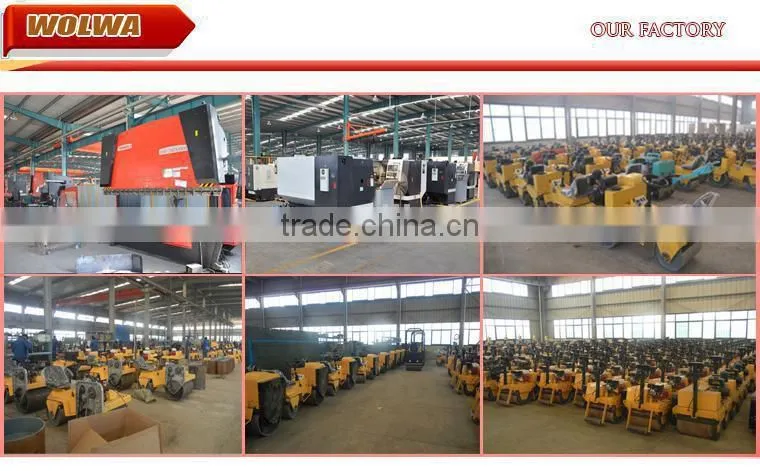

We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our
pruducts.We are also pleased to welcome you to visit our factory.^^
contact:
skype:wolwahannah
QQ:2745940132
TEL:86-15205378664
