Specifications
raw material: PE, PP, PVC, PC, ABS, TPU,lower energy consumption
Microcomputer intellectualized controlling
Self-diagnosis

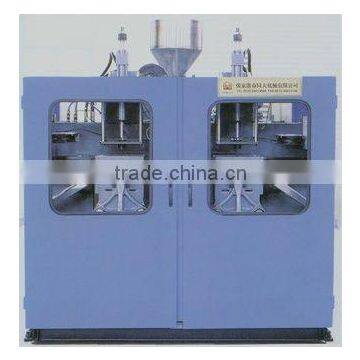

Fully Automatic Hydraulic Extrusion Blow Molding Machine
Application: All kinds of plastic bottle made of PE, PP, PVC, PC, ABS, TPU, etc.
Characteristic: 1, Microcomputer intellectualized controlling, self-diagnosis alarm, clear at a glance,
2, Hydraulic system with imported proportional valve, lower energy consumption. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
3, Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system, de-flashing system, etc.
Item |
Unit |
JKB50-2L |
Max. Product Volume |
L |
2 |
Dry Cycle |
pcs/h |
1500 |
Screw Diameter |
mm |
50 |
Screw L/D Ratio |
L/D |
24 |
Screw Drive Power |
kw |
11 |
Screw Heating Power |
3Φkw |
4.2 |
Screw Heating Zone |
Zone |
3 |
HPDE Output |
kg/h |
35 |
Oil Pump Power |
kw |
5.5 |
Clamping Force |
KN |
40 |
Mold Stroke |
mm |
138-368 |
Max. Mold Size |
W×H(mm) |
300×320 |
Max. Die Diameter |
mm |
100 |
Die Heating Power |
4Φkw |
1.8 |
NO. of Heating Zone |
Zone |
3 |
Blowing Pressure |
Mpa |
0.6 |
Air Consumption |
M³/min |
0.4 |
Cooling Water Pressure |
Mpa |
0.3 |
Water Consumption |
L/min |
35 |
Machine Size |
L×W×H(mm) |
2.5×1.5×2.4 |
Machine Weight |
Ton |
3.2 |
