Extrusion Blow Molding Machine
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Extrusion Blow Molding MachineUS$ 1,000 - 10,000MOQ: 1 Set -
JKBA Plastic Drum Extrusion Blow Molding Machine (CE)US$ 1,000 - 10,000MOQ: 1 Set
-
Plastic Pipe Extrusion Line (CE)US$ 10,000 - 100,000MOQ: 1 Set
-
JKB70-5LII Extrusion Blow Molding MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
JKBA100-90L Extrusion Blow Molding MachineUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PE
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Shanghai, China
Brand Name
JOYSUN
Model Number
JKBA
After-sales Service Provided
Overseas service center available
Specifications
Blow Molding Machine1. PLC intelligent control system
2. imported proportional valve
3.long service life
Extrusion Blow Molding Machine:
JKBA Extrusion blow molding machine is used to produce all kinds of plastic bottles such as PVC, PE, PP, barrels and other containers in regular shapes. Our extrusion blow molding machines are characterized by high productivity, energy efficiency, good molding quality and pollution-free quality.
Flow Chart
Product Description
Characteristics:
1. PLC+touch screen, making the operation easy. Automatic malfunction alarm with selfdiagnosis, making the malfunction clear at a glance.
2. Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and colour qucik reload.
3. Unique "linear guide" to the clamping structure to ensure mold-lock uniform, knit line smoother.
4. Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption.
Configuration:
Siemens PLC, Italy pneumatic component, international famous electric component.
Parameter:
| ITEM | UNIT | JKBA82-25PC | JKBA80-30l | JKBA90-60L |
| Max. Product VOLUME | L | 25 | 30 | 60 |
| Dry Cycle | pcs/h | 600 | 650 | 500 |
| Screw Diameter | mm | 82 | 80 | 90 |
| Screw L/D Ratio | L/D | 38 | 25 | 25 |
| Screw Drive Power | KW | 30 | 37 | |
| Screw Heating Power | 4Φkw | 16.7 | 16 | 21 |
| Screw Heating Zone | Zone | 8 | 4 | 4 |
| HPDE Output | kg/h | 160 | 100 | 140 |
| Oil Pump Power | kw | 11 | 15 | 18.5 |
| Clamping Force | kn | 215 | 220 | 350 |
| Mold Stroke | mm | 240-620 | 400-830 | 500-1050 |
| Max.Mold Size | W*H(mm) | 600*700 | 600*700 | 700*1050 |
| Accumulator Capacity | L | 1.85 | 4 | 6.6 |
| Max.Die Diameter | mm | 150 | 300 | 350 |
| Die Heating Power | 4Φkw | 4.5 | 11.9 | 17 |
| No. of Heating Zone | Zone | 4 | 4 | 4 |
| Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Air Consumption | m³/min | 0.4 | 0.8 | 1 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 30 | 60 | 85 |
| Machine Size | L*W*H(m) | 6.2*2.3*4.5 | 4.23*2.3*3.5 | 4.75*2.5*3.9 |
| Machine Weight | Ton | 11.8 | 11.5 | 12.8 |
| ITEM | UNIT | JKBA100-90L | JKBA100-120L | JKBA120-160L |
| Max. Product VOLUME | L | 90 | 120 | 160 |
| Dry Cycle | pcs/h | 360 | 360 | 300 |
| Screw Diameter | mm | 100 | 100 | 120 |
| Screw L/D Ratio | L/D | 25 | 28 | 28 |
| Screw Drive Power | KW | 45 | 55 | 75 |
| Screw Heating Power | 4Φkw | 24 | 24 | 30 |
| Screw Heating Zone | Zone | 4 | 4 | 5 |
| HPDE Output | kg/h | 180 | 200 | 250 |
| Oil Pump Power | kw | 22 | 37 | 45 |
| Clamping Force | kn | 500 | 650 | 800 |
| Mold Stroke | mm | 550-1250 | 550-1400 | 600-1500 |
| Max.Mold Size | W*H(mm) | 800*1000 | 800*1250 | 1100*1500 |
| Accumulator Capacity | L | 12 | 14 | 18 |
| Max.Die Diameter | mm | 430 | 450 | 520 |
| Die Heating Power | 4Φkw | 20 | 21 | 25 |
| No. of Heating Zone | Zone | 5 | 5 | 5 |
| Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Air Consumption | m³/min | 1.2 | 1.6 | 1.6 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 100 | 150 | 180 |
| Machine Size | L*W*H(m) | 5.4*2.5*4 | 5.4*2.6*4.2 | 5.8*2.6*4.4 |
| Machine Weight | Ton | 16 | 19 | 22 |

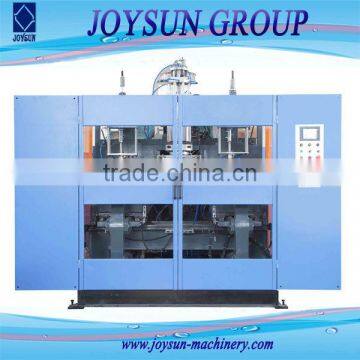

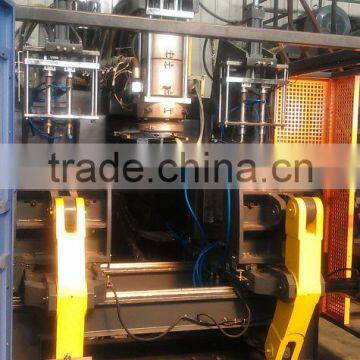

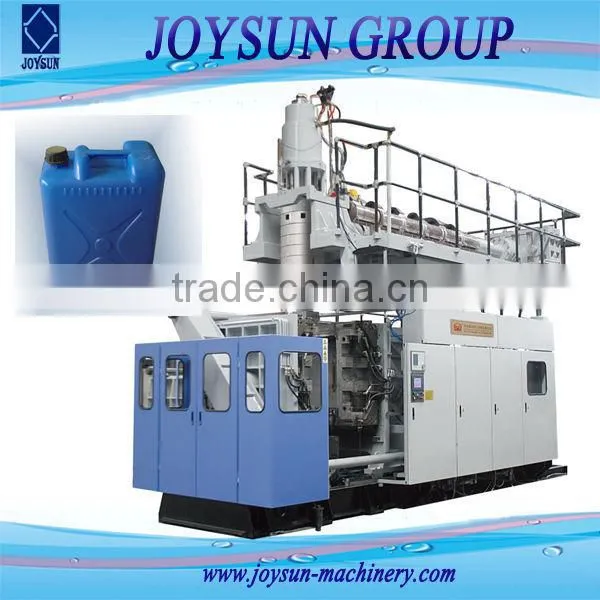

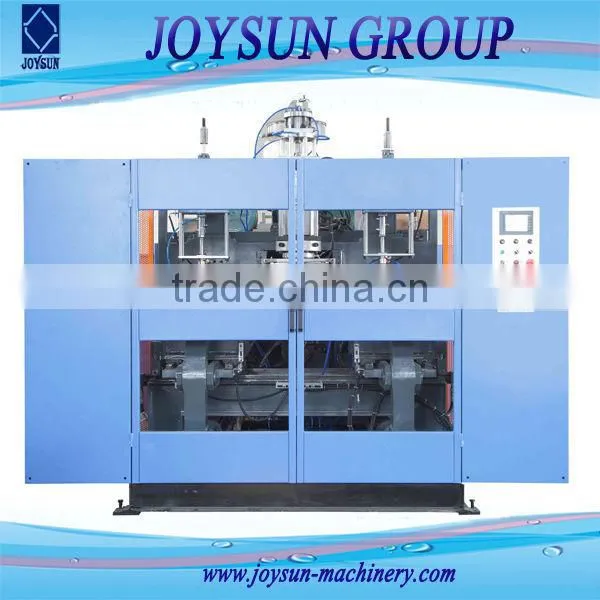

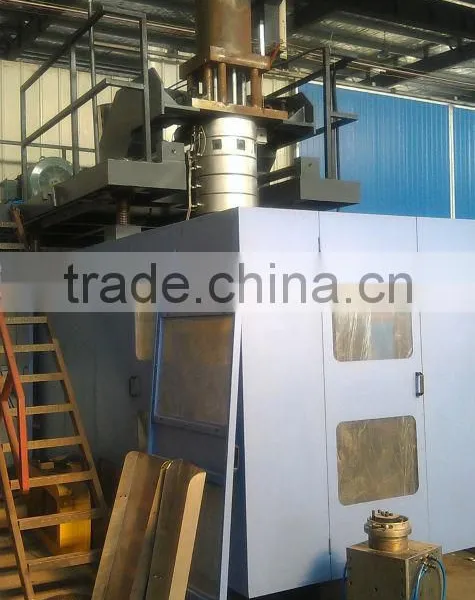

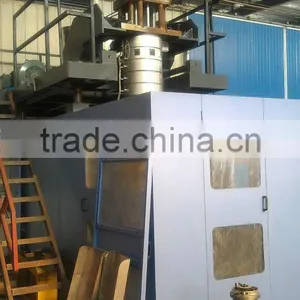

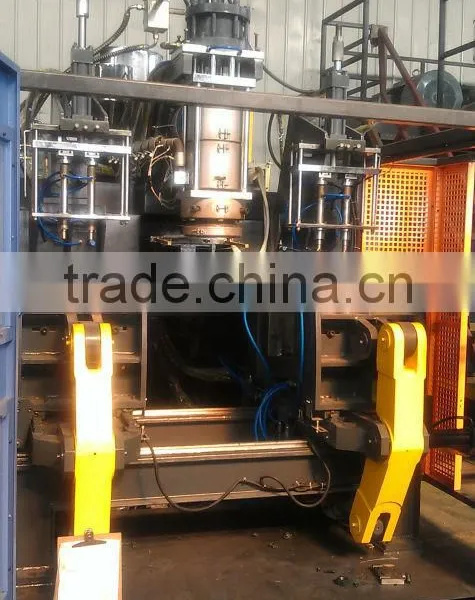

Machine Picture

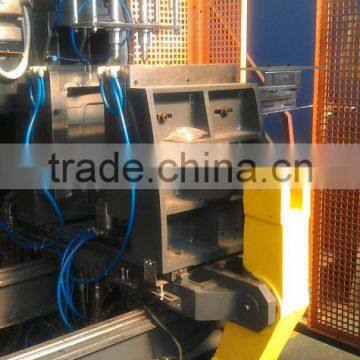

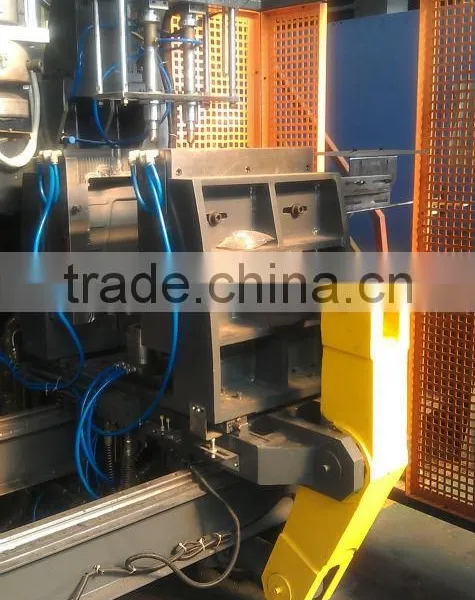

Mould Picture

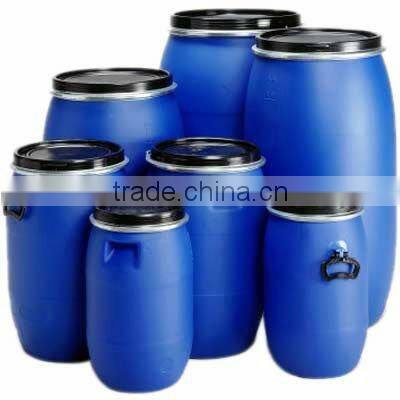

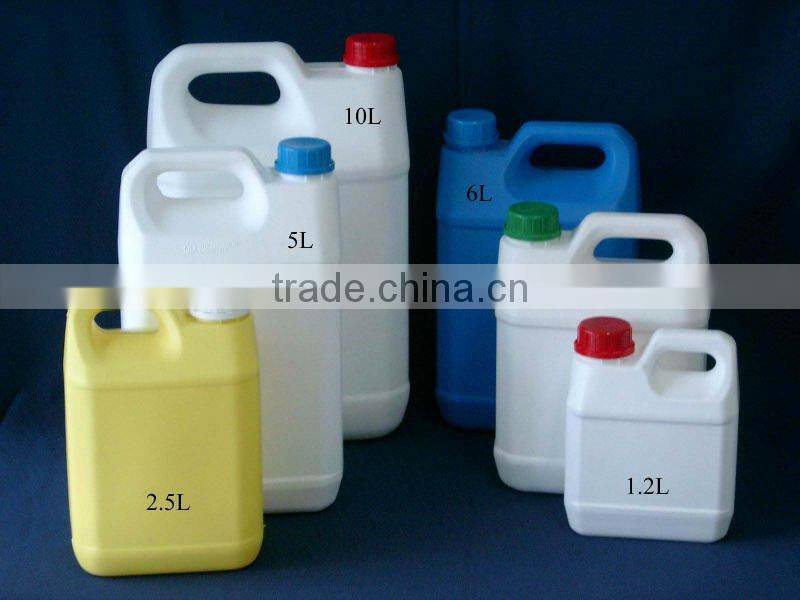

Production
