Specifications
Plastic Extrusion Blow Molding MachineBlow Molding Machine
Pneumatic,
Max volume: 1000L, for milk bottle, beverage bottle
Plastic Extrusion Blow Molding Machine
Description:
Extrusion blow molding machine is used to produce PVC, PE, PP bottles, jar, cans, barrels and other containers in regular shapes. Our extrusion blow molding machines include PC 5 gallon blow molding machine and hydraulic blow molding machine. These machines are characterized by high productivity, energy efficiency, good molding quality and pollution-free quality.
At Joysun, we aims to offer high quality extrusion blow molding machine at lowest costs. To this end, we purchase our raw materials in bulk and have established long-term partnership with our shippers and material suppliers. As a China manufacture, we enjoy low land, labor and material costs.
Configuration:
Siemens PLC, Italy pneumatic component, international famous electric component.
Characteristics:
1, Microcomputer intellectualized controlling, self-diagnosis alarm, clear at a glance,
2, Hydraulic system with imported proportional valve, lower energy consumption. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
3, Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parson control system, de-flashing system, etc.
Parameter:
| ITEM | UNIT | JKBA82-25PC | JKBA80-30l | JKBA90-60L |
| Max. Product VOLUME | L | 25 | 30 | 60 |
| Dry Cycle | pcs/h | 600 | 650 | 500 |
| Screw Diameter | mm | 82 | 80 | 90 |
| Screw L/D Ratio | L/D | 38 | 25 | 25 |
| Screw Drive Power | KW | 30 | 37 | |
| Screw Heating Power | 4Φkw | 16.7 | 16 | 21 |
| Screw Heating Zone | Zone | 8 | 4 | 4 |
| HPDE Output | kg/h | 160 | 100 | 140 |
| Oil Pump Power | kw | 11 | 15 | 18.5 |
| Clamping Force | kn | 215 | 220 | 350 |
| Mold Stroke | mm | 240-620 | 400-830 | 500-1050 |
| Max.Mold Size | W*H(mm) | 600*700 | 600*700 | 700*1050 |
| Accumulator Capacity | L | 1.85 | 4 | 6.6 |
| Max.Die Diameter | mm | 150 | 300 | 350 |
| Die Heating Power | 4Φkw | 4.5 | 11.9 | 17 |
| No. of Heating Zone | Zone | 4 | 4 | 4 |
| Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Air Consumption | m³/min | 0.4 | 0.8 | 1 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 30 | 60 | 85 |
| Machine Size | L*W*H(m) | 6.2*2.3*4.5 | 4.23*2.3*3.5 | 4.75*2.5*3.9 |
| Machine Weight | Ton | 11.8 | 11.5 | 12.8 |
| ITEM | UNIT | JKBA100-90L | JKBA100-120L | JKBA120-160L |
| Max. Product VOLUME | L | 90 | 120 | 160 |
| Dry Cycle | pcs/h | 360 | 360 | 300 |
| Screw Diameter | mm | 100 | 100 | 120 |
| Screw L/D Ratio | L/D | 25 | 28 | 28 |
| Screw Drive Power | KW | 45 | 55 | 75 |
| Screw Heating Power | 4Φkw | 24 | 24 | 30 |
| Screw Heating Zone | Zone | 4 | 4 | 5 |
| HPDE Output | kg/h | 180 | 200 | 250 |
| Oil Pump Power | kw | 22 | 37 | 45 |
| Clamping Force | kn | 500 | 650 | 800 |
| Mold Stroke | mm | 550-1250 | 550-1400 | 600-1500 |
| Max.Mold Size | W*H(mm) | 800*1000 | 800*1250 | 1100*1500 |
| Accumulator Capacity | L | 12 | 14 | 18 |
| Max.Die Diameter | mm | 430 | 450 | 520 |
| Die Heating Power | 4Φkw | 20 | 21 | 25 |
| No. of Heating Zone | Zone | 5 | 5 | 5 |
| Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Air Consumption | m³/min | 1.2 | 1.6 | 1.6 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 100 | 150 | 180 |
| Machine Size | L*W*H(m) | 5.4*2.5*4 | 5.4*2.6*4.2 | 5.8*2.6*4.4 |
| Machine Weight | Ton | 16 | 19 | 22 |
Flow Chart

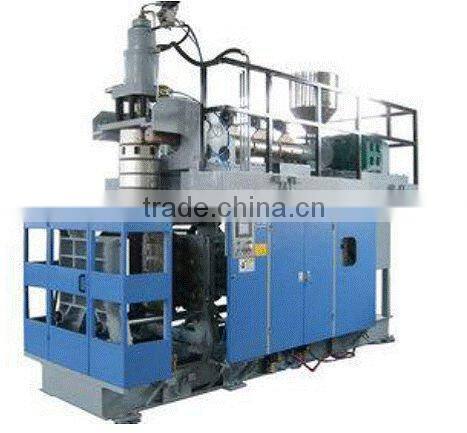

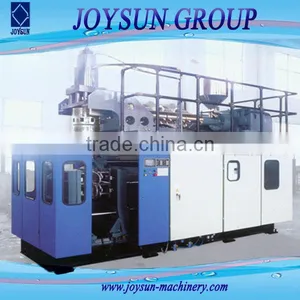

Machine Picture

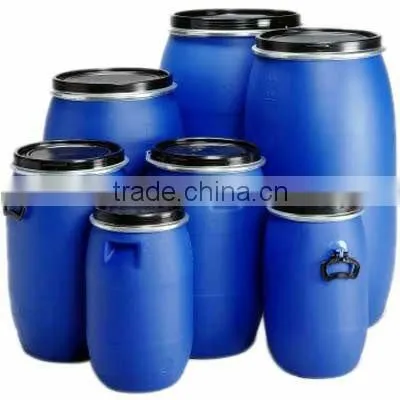

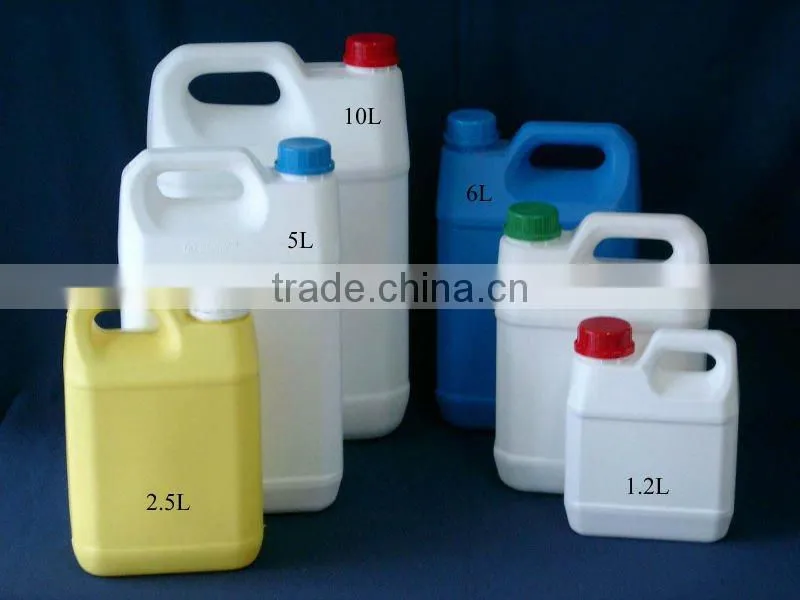

Production
