Specifications
JKB70-5LII Extrusion Blow Molding Machine1.microcomputer intelligent control system
2.imported proportional valve

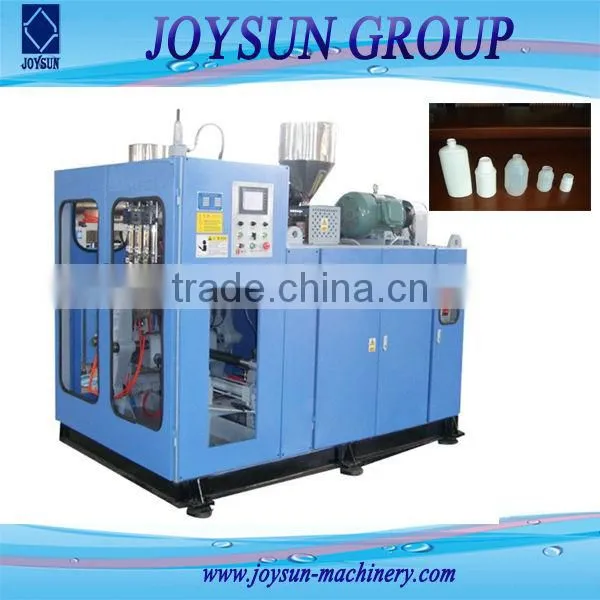

JKB70-5LII Extrusion Blow Molding Machine
Application

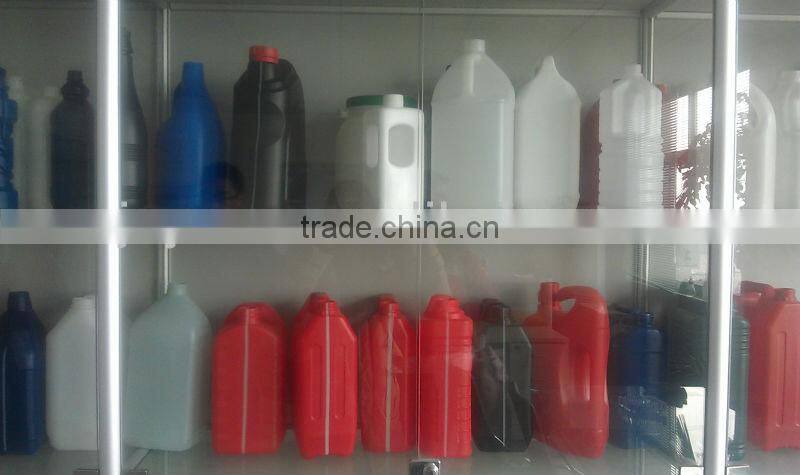

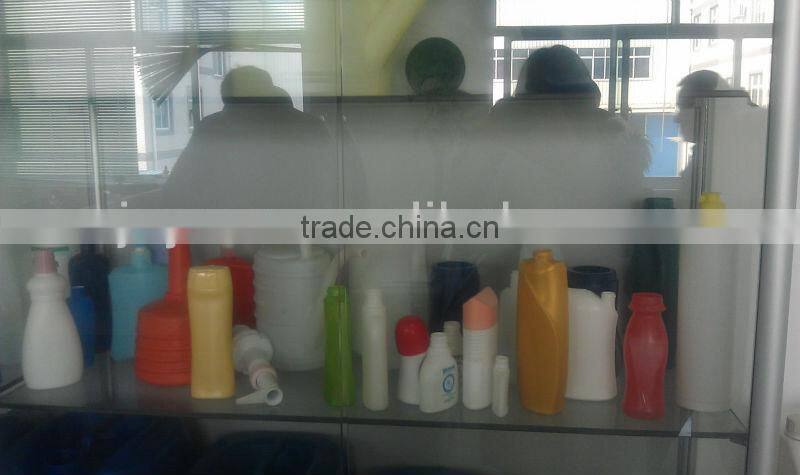

JKB Extrusion blow molding machine is used to produce all kinds of plastic bottles such as PVC, PE, PP bottles, jar, cans, barrels and other containers in regular shapes. Our extrusion blow molding machines are characterized by high productivity, energy efficiency, good molding quality and pollution-free quality.
Flow Chart
Characteristics:
1. With the use of microcomputer intelligent control system, it comes with self-diagnosis alarm, making malfunction clear at a glance.
2. The hydraulic system is equipped with imported proportional valve, greatly lessening the energy consumption. Meanwhile, the reduction of oil temperature lengthens the service life of hydraulic parts.
3. Various functions are optional because of different technical requirements such as bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, manipulator, thickness control system, and the like.
Configuration:
Siemens PLC, Italy pneumatic component, international famous electric component.
Parameter:
| ITEM | UNIT | JKB50-2L | JKB60-2LII | JKB60-5L |
| Max. Product VOLUME | L | 2 | 2 | 5 |
| Dry Cycle | pcs/h | 1500 | 900*2 | 1100 |
| Screw Diameter | mm | 50 | 60 | 60 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| Screw Drive Power | KW | 11 | 15 | 15 |
| Screw Heating Power | 3Φkw | 4.2 | 6.5 | 6.5 |
| Screw Heating Zone | Zone | 3 | 3 | 3 |
| HPDE Output | kg/h | 35 | 70 | 70 |
| Oil Pump Power | kw | 5.5 | 5.5 | 7.5 |
| Clamping Force | kn | 40 | 40 | 65 |
| Mold Stroke | mm | 138-368 | 138-368 | 148-508 |
| Max.Mold Size | W*H(mm) | 300*320 | 300*320 | 380*390 |
| Max.Die Diameter | mm | 100 | 100 | 140 |
| Die Heating Power | 4Φkw | 1.8 | 1.8 | 2.5 |
| No. of Heating Zone | Zone | 3 | 3 | 3 |
| Blowing Pressure | Mpa | 0.6 | 0.6 | 0.6 |
| Air Consumption | m³/min | 0.4 | 0.5 | 0.5 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 35 | 50 | 50 |
| Machine Size | L*W*H(m) | 2.5*1.5*2.4 | 2.7*2.1*2.6 | 2.9*1.8*2.6 |
| Machine Weight | Ton | 3.2 | 4.3 | 5.8 |
| ITEM | UNIT | JKB70-5LII | JKB70-12L | JKB90-12LII |
| Max. Product VOLUME | L | 5 | 12 | 12 |
| Dry Cycle | pcs/h | 700*2 | 900 | 600*2 |
| Screw Diameter | mm | 70 | 70 | 90 |
| Screw L/D Ratio | L/D | 24 | 24 | 25 |
| Screw Drive Power | KW | 22 | 22 | 37 |
| Screw Heating Power | 3Φkw | 7.2 | 7.8 | 8.8 |
| Screw Heating Zone | Zone | 3 | 4 | 4 |
| HPDE Output | kg/h | 90 | 90 | 130 |
| Oil Pump Power | kw | 7.5 | 11 | 11 |
| Clamping Force | kn | 65 | 110 | 110 |
| Mold Stroke | mm | 148-508 | 240-620 | 240-620 |
| Max.Mold Size | W*H(mm) | 380*390 | 530*520 | 530*520 |
| Max.Die Diameter | mm | 145 | 230 | 230 |
| Die Heating Power | 4Φkw | 2.5 | 3 | 3 |
| No. of Heating Zone | Zone | 3 | 3 | 3 |
| Blowing Pressure | Mpa | 0.6 | 0.6 | 0.6 |
| Air Consumption | m³/min | 0.6 | 0.8 | 0.8 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 60 | 60 | 60 |
| Machine Size | L*W*H(m) | 2.9*2.1*2.7 | 3.8*2.2*3.1 | 4.1*2.8*3.4 |
| Machine Weight | Ton | 7.8 | 7.8 | 11 |

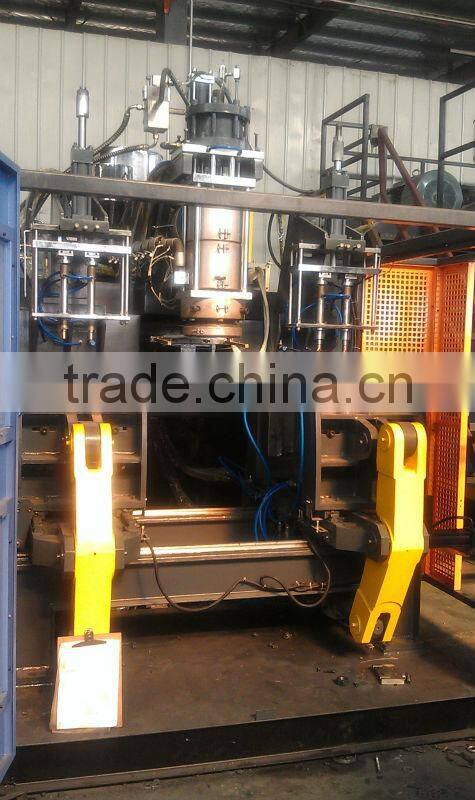

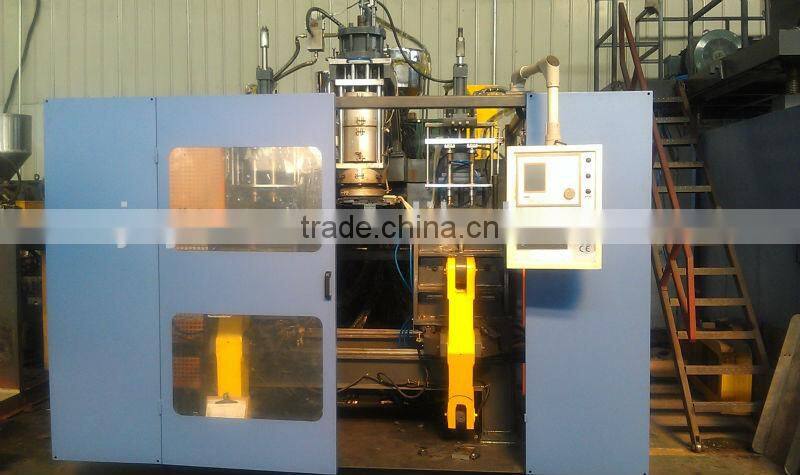

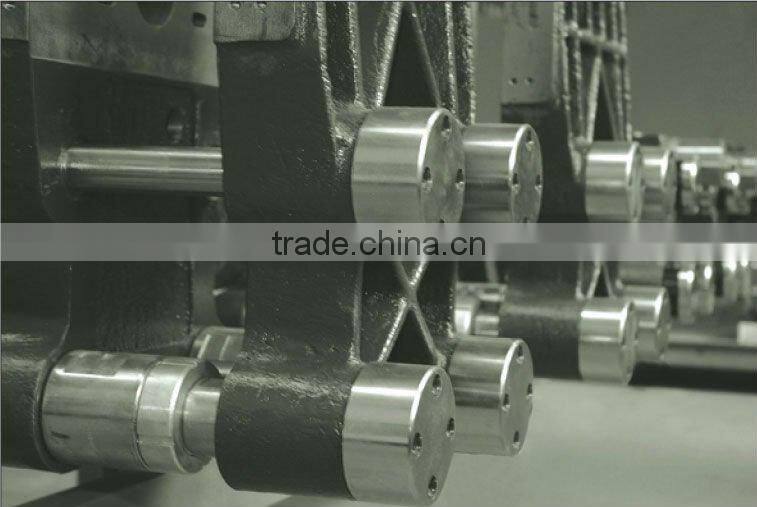

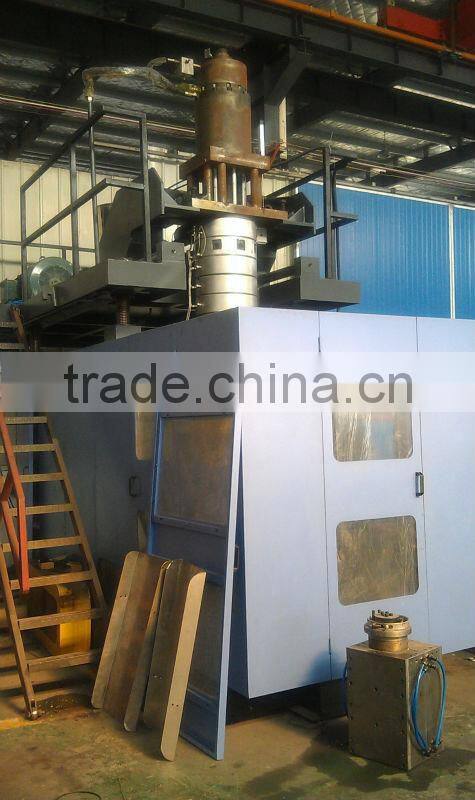

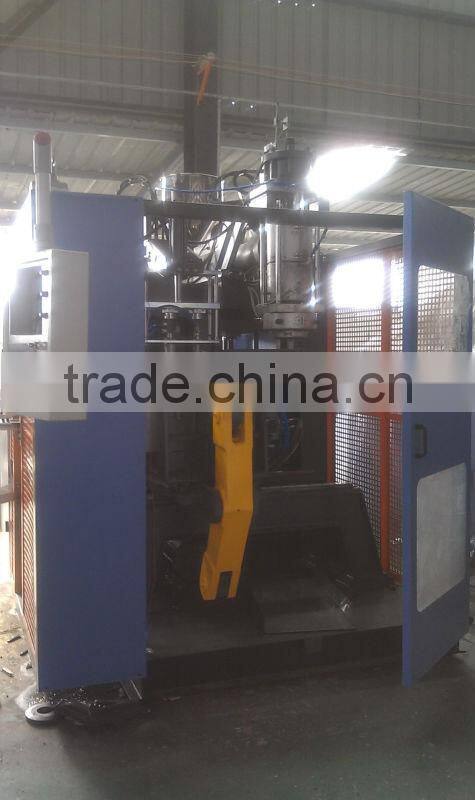

Machine Picture
