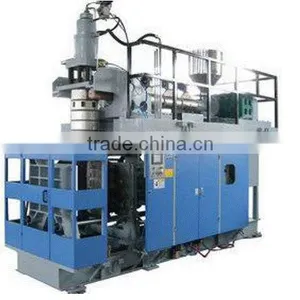

JKBA Plastic Drum Extrusion Blow Molding Machine (CE)

JKBA Plastic Drum Extrusion Blow Molding Machine (CE) thumbnail-1
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) thumbnail-2
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) thumbnail-3
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) thumbnail-4
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) thumbnail-5
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) thumbnail-6
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) photo-1
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) photo-2
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) photo-3
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) photo-4
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) photo-5
JKBA Plastic Drum Extrusion Blow Molding Machine (CE) photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Medical, Chemical
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Shanghai Joysun Machinery & Electric Equipment Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Commodity, Medical, Chemical
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Hydraulic
Place of Origin Shanghai, China
Brand Name JOYSUN
Model Number JKBA
After-sales Service Provided Overseas service center available

Specifications

Extrusion Blow Molding Machine
1. PLC intelligent control system
2. imported proportional valve
3.long service life



Application of JKBA Plastic Extrusion Blow Molding Machine:



JKBA Extrusion blow molding machine is used to produce all kinds of big plastic bottles such as PVC, PE, PP, barrels and other containers in regular shapes. Our extrusion blow molding machines are characterized by high productivity, energy efficiency, good molding quality and pollution-free quality.





Flow Chart



JKBA Plastic Drum Extrusion Blow Molding Machine (CE)





Characteristics:



1. PLC+touch screen, making the operation easy. Automatic malfunction alarm with selfdiagnosis, making the malfunction clear at a glance.

2. Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and colour qucik reload.

3. Unique "linear guide" to the clamping structure to ensure mold-lock uniform, knit line smoother.

4.  Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20%-40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.

5. Various functions are optional because of different technical requirements such as bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, manipulator, thickness control system, etc.





Configuration:



Siemens PLC, Italy pneumatic component, international famous electric component.





Parameter:

ITEM UNIT JKBA82-25PC JKBA80-30l JKBA90-60L
Max. Product VOLUME L 25 30 60
Dry Cycle pcs/h 600 650 500
Screw Diameter mm 82 80 90
Screw L/D Ratio L/D 38 25 25
Screw Drive Power KW   30 37
Screw Heating Power 4Φkw 16.7 16 21
Screw Heating Zone Zone 8 4 4
HPDE Output kg/h 160 100 140
Oil Pump Power kw 11 15 18.5
Clamping Force kn 215 220 350
Mold Stroke mm 240-620 400-830 500-1050
Max.Mold Size W*H(mm) 600*700 600*700 700*1050
Accumulator Capacity L 1.85 4 6.6
Max.Die Diameter mm 150 300 350
Die Heating Power 4Φkw 4.5 11.9 17
No. of Heating Zone Zone 4 4 4
Blowing Pressure Mpa 0.8 0.8 0.8
Air Consumption m³/min 0.4 0.8 1
Cooling Water Pressure Mpa 0.3 0.3 0.3
Water Consumption L/min 30 60 85
Machine Size L*W*H(m) 6.2*2.3*4.5 4.23*2.3*3.5 4.75*2.5*3.9
Machine Weight Ton 11.8 11.5 12.8



ITEM UNIT JKBA100-90L JKBA100-120L JKBA120-160L
Max. Product VOLUME L 90 120 160
Dry Cycle pcs/h 360 360 300
Screw Diameter mm 100 100 120
Screw L/D Ratio L/D 25 28 28
Screw Drive Power KW 45 55 75
Screw Heating Power 4Φkw 24 24 30
Screw Heating Zone Zone 4 4 5
HPDE Output kg/h 180 200 250
Oil Pump Power kw 22 37 45
Clamping Force kn 500 650 800
Mold Stroke mm 550-1250 550-1400 600-1500
Max.Mold Size W*H(mm) 800*1000 800*1250 1100*1500
Accumulator Capacity L 12 14 18
Max.Die Diameter mm 430 450 520
Die Heating Power 4Φkw 20 21 25
No. of Heating Zone Zone 5 5 5
Blowing Pressure Mpa 0.8 0.8 0.8
Air Consumption m³/min 1.2 1.6 1.6
Cooling Water Pressure Mpa 0.3 0.3 0.3
Water Consumption L/min 100 150 180
Machine Size L*W*H(m) 5.4*2.5*4 5.4*2.6*4.2 5.8*2.6*4.4
Machine Weight Ton 16 19 22

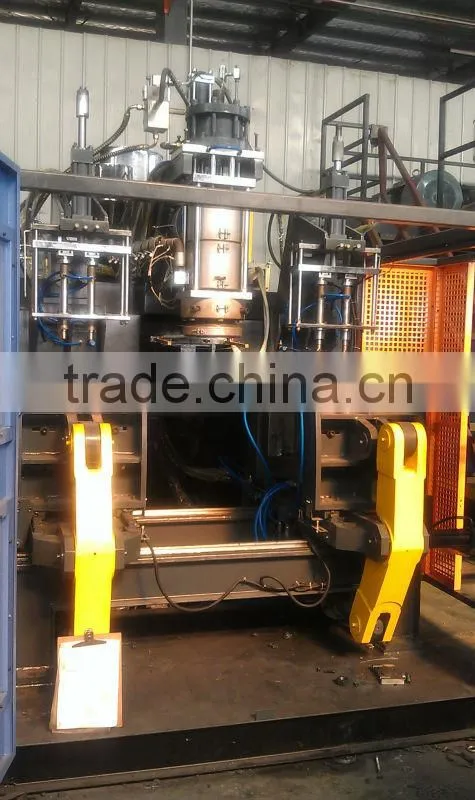

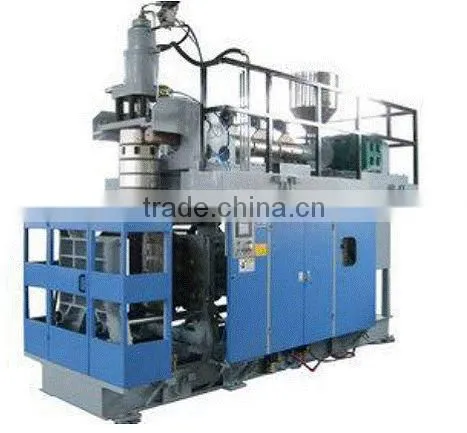

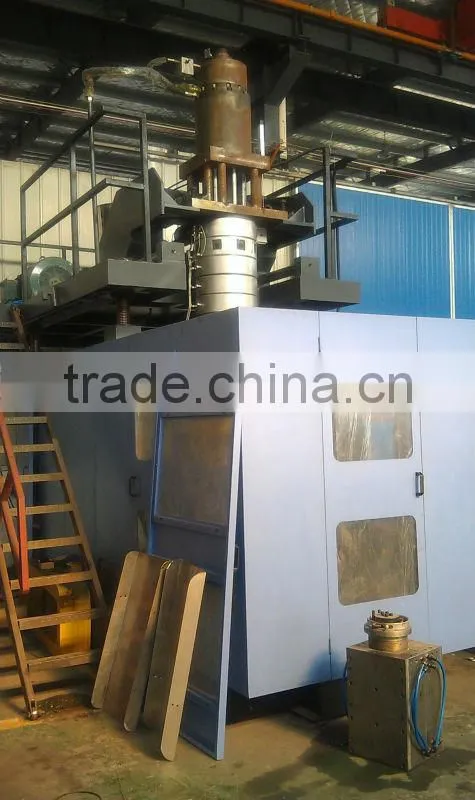

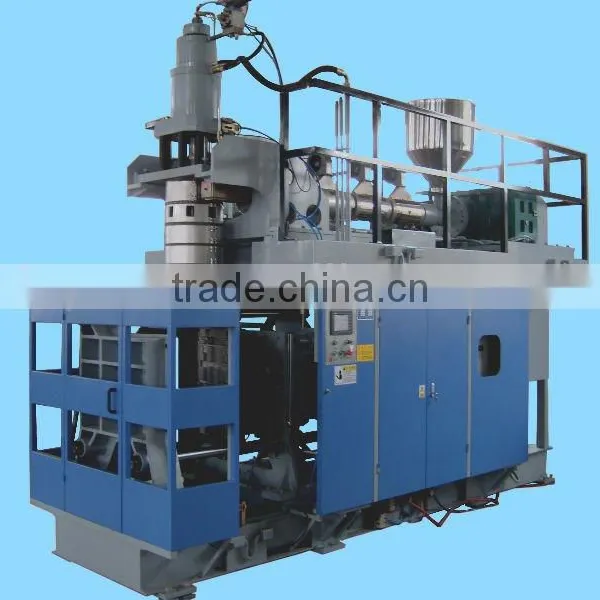

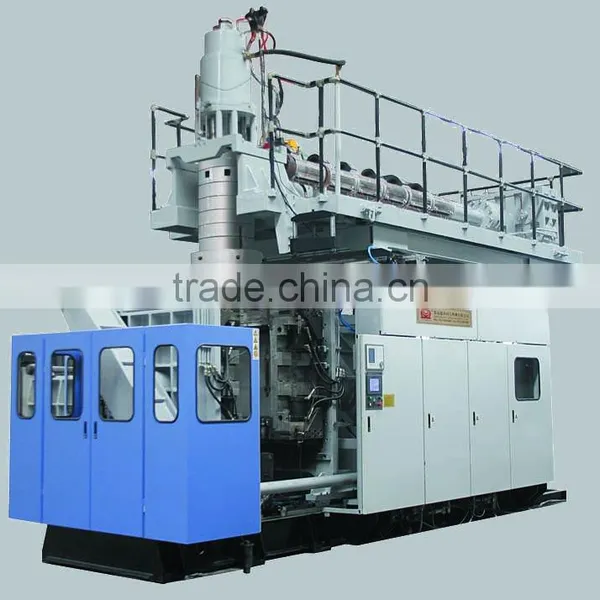

Machine Picture





JKBA Plastic Drum Extrusion Blow Molding Machine (CE)

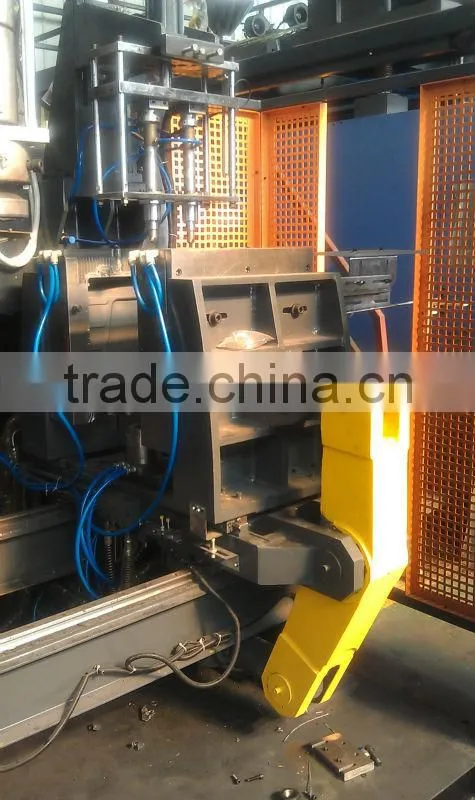

Mould Picture

JKBA Plastic Drum Extrusion Blow Molding Machine (CE)



JKBA Plastic Drum Extrusion Blow Molding Machine (CE)



JKBA Plastic Drum Extrusion Blow Molding Machine (CE)

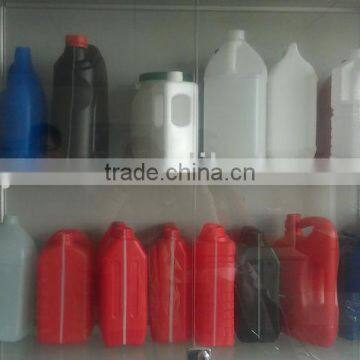

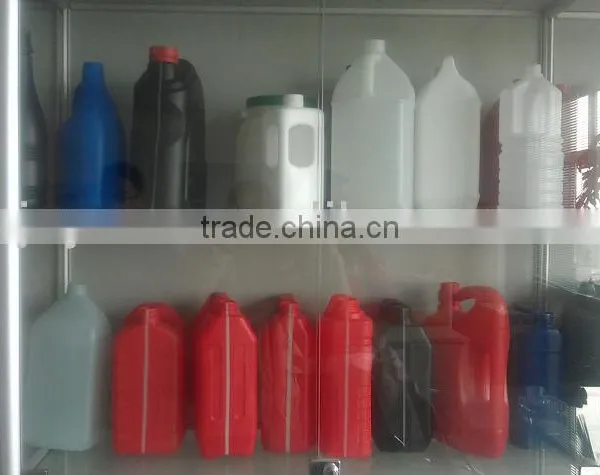

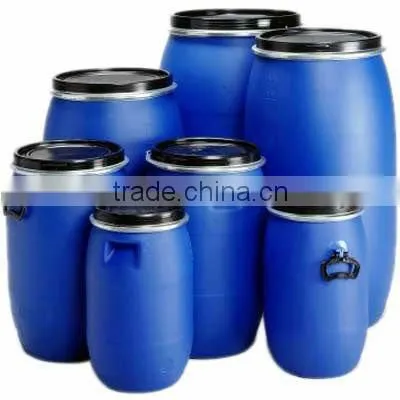

Production







       JKBA Plastic Drum Extrusion Blow Molding Machine (CE)               JKBA Plastic Drum Extrusion Blow Molding Machine (CE)
