36kw to 450kw Best Quality Generator USA With Cummins Diesel Engine

36kw to 450kw Best Quality Generator USA With Cummins Diesel Engine thumbnail-1
36kw to 450kw Best Quality Generator USA With Cummins Diesel Engine photo-1
US$ 3,145 - 139,595 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
genor power
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name genor power
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 20KVA to 2000KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 29A to 2880A

36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine



Generators engine are designed for many applications where power is needed. Generators with engine are manufactured to commercial specifications using the latest manufacturing technologies. All models are built with the quality and reliability you would expect from a leading generator manufacturer.





36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRC23 16 20 18 22.5 4B3.9-G ≤229 4 3.9 102*120
GNRC30 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
GNRC35 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
GNRC56 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
GNRC63 45 56 50 63 4BTA3.9-G ≤215 4 3.92 102*120
 GNRC70 50 63 56 70 6BT5.9G1 ≤215 6 5.88 102*120
GNRC106 78 98 85 106 6BT5.9G ≤215 6 5.88 102*120
GNRC125 90 113 100 125 6BT5.9G2 ≤215 6 5.88 102*120
GNRC150 104 130 120 150 6BT5.9G2 ≤215 6 5.88 102*120
GNRC165 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC200 140 175 160 200 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC225 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
GNRC275 200 250 220 275 MTA11-G2A ≤210 6 10.8 125*147
GNRC313 220 275 250 313 NTA855-G1A ≤206 6 14 140*152
GNRC350 250 313 275 350 NTA855-G2 ≤207 6 14 140*152
GNRC400 280 350 310 400 NTA855-G4 ≤208 6 14 140*152
GNRC413 300 375 330 413 NTAA855-G7 ≤206 6 14 140*152
GNRC450 320 400 360 450 NTAA855-G7A ≤206 6 14 140*152
GNRC500 360 450 400 500 KTA19-G3 ≤203 6 18.9 159*159
GNRC550 400 500 440 550 KTA19-G4 ≤203 6 18.9 159*159
GNRC605 440 550 484 605 KTAA19-G6 ≤204 6 18.9 159*159
GNRC625 450 563 500 625 KTAA19-G7 ≤204 6 18.9 159*159
GNRC700 500 625 560 700 KTA38-G ≤206 12 37.8 159*159
GNRC712 520 650 570 712 QSK19-G3 ≤206 6 19 159*159
GNRC800 580 720 640 800 KTA38-GA ≤209 12 37.8 159*159
GNRC825 600 750 660 825 KTA38-G2 ≤210 12 37.8 159*159
GNRC888 640 800 710 888 KTA38-G2B ≤210 12 37.8 159*159
GNRC975 720 900 780 975 KTA38-G2A ≤210 12 37.8 159*159
GNRC1075 800 1000 860 1075 KTA38-G5 ≤202 12 37.8 159*159
GNRC1375 1000 1250 1100 1375 KTA50-G3  ≤215 16 50.3 159*159
GNRC1650 1100 1375 1310 1650 KTA50-G8  ≤215 16 50.3 159*159
GNRC1675 1200 1500 1340 1675 KTA50-GS8  ≤215 16 50.3 159*159
GNRC1875 1350 1688 1500 1875 QSK60-G3  ≤215 16 60 159*190
GNRC2063 1500 1875 1650 2063 QSK60-G3  ≤215 16 60 159*190
GNRC2250 1600 2000 1800 2250 QSK60-G4  ≤215 16 60 159*190



Specification:

detailed product description:
1) Rated output: 20kva 2000kva
2) Rated voltage:  220V/380V, 230V/400V, 240V/415V

3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.

Engine: engine

1)Cooling method: closed water cooling

2)Multi-cylinder in-line or veer engine, 4-stroke, direct injection

2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm



Alternator:
1) Brand:  Stamford,LeroySomer, Marathon,Engga

2) Rated output: 20kva to 2000kva

3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP21-IP23

14)Connect with engine:Direct coupled with flywheel

Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification



Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.



Warranty policy



Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.





engine :



36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine



Original stamford alternator and certificate :

36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine

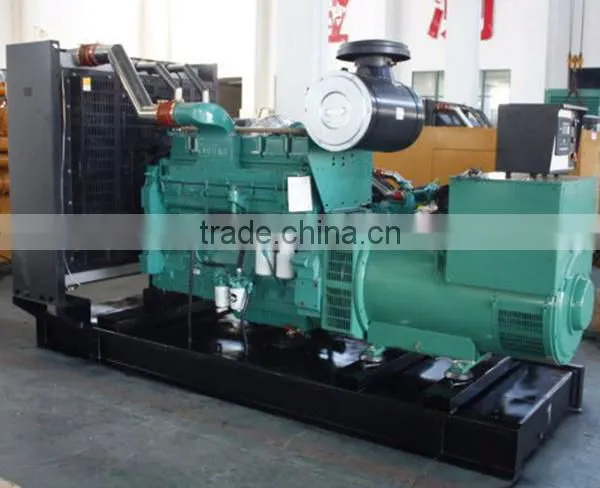

open type generator  :

36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine



silent type generator

36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine36kw to 450kw Best Quality Generator USA with Cummins Diesel Engine
