Silent 400kw Stamford Alternator Generator With Cummins Engine
specification of generator:
1.Main technical data of gensets | ||
1.1 |
Model |
GNRC400 |
1.2 |
Prime power |
400KW |
1.3 |
Prime voltage |
254V/440V |
1.4 |
Speed |
1800 rpm |
1.5 |
Weight |
3950kg |
1.6 |
Overall dimension |
3150×1000×2150mm (just for reference) |
2.Main technical data of engine | ||
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. | ||
2.1 |
Brand |
CUMMINS |
2.2 |
Model |
KTA19-DM |
2.3 |
Prime power |
463KW |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 6 cylinder in line |
2.6 |
Cooling method |
By heater exchanger |
2.7 |
Bore/Stroke |
159×159 mm |
2.8 |
Displacement |
19.0L |
2.9 |
Starting method |
Electric |
2.10 |
Fuel consumption |
203g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MX-H-400-4 |
3.3 |
Prime power |
400KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
254V/440V |
3.6 |
Frequency |
60 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
Engine :
Original stamford alternator and certificate :
Open type Genset

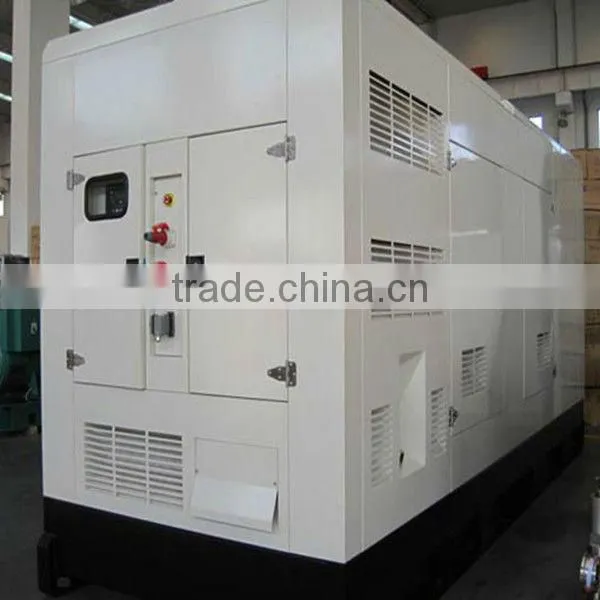

Silent Type Diesel Genset
