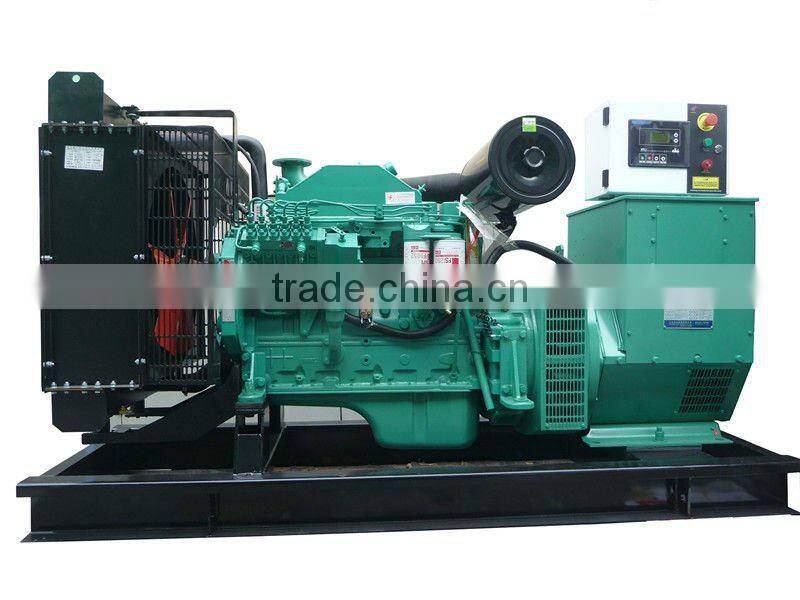

230V Industrial Power 250kva Diesel Generator Price
cummins 250kva diesel generator | |
Prime Power (50HZ) | 200KW/250KVA |
Standby Power (50HZ) | 220kw/275KVA |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | 6LTAA5.9-G2 |
Cylinders | 6 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 114X 135 |
Compression Ratio | 16.0:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 42.4 |
Engine Displacement (L) | 4 |
Inspiration (L) | Turbocharged Intercooled |
Lube Volume (L) | 14.3 |
Coolant Volume (L) | 25 |
Noise (Db) | ≤ 80 |
Alternator Brand | Stamford,LeroySomer, Marathon,Engga |
Alternator Power | 250kva |
Voltage | 220/380 V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 2350 |
Dimensions (L x W x H) mm | 3200*1500*2010 |
40FT Container | 4 units |
Optional | ATS (auto transfer switch) |
| Auto Battery Charger |
| Base Fuel Tank (for open type) |
| New canopy |
1. automatic cutter which is suitable for the generator power.
2. Turn on key.
3. A device to measure the generators speed.
4. Counter for measuring the Operating hours.
5. Device to measure the current overload with a switched current.
6. A device to measure the battery voltage.
7. Voltmeter with a voltage exchanger.
8. A device to measure the frequency.
9. Thermostat to regulate the voltage.
10. A device to measure the oil pressure.
11. Alerting lamps indicating low and high temperature.
12. Controller of the current increase and short circuit.
13. Emergency stop button.
6.Low/high charger 7. voltage Emergency 8.Common alarm Generating failure
Standard Supply Scope
| Exhaust silencer | Flexi pipes | AVR | Base frame |
| Starting battery | Battery wires | Battery charger | Main circuit breaker |
| Cooling radiator | Wire diagram | Manual books | Auto control panel |
Optional Supply Scopy
| Water preheater | PMG | ATS | External daily fuel tank | Silent canopy | ||
| Lube oil preheater | Spare parts | Parallel droop | Anti-condensation heater | ABB breaker | ||
| Automatic fuel pump | Oil drain pump | Mobile trailer | Weatherproof canopy | Synchronization panel | ||
