35kva to 150kva AC Power Silent Diesel Genset With Cummins Engine

Shenzhen Genor Power Equipment Co., Ltd.
35kva to 150kva AC Power Silent Diesel Genset With Cummins Engine thumbnail-1
35kva to 150kva AC Power Silent Diesel Genset With Cummins Engine photo-1
US$ 2,599 - 12,589 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GENOR POWER
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50HA or 60HZ
Rated Power 400KW TO 1000KW
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 720A TO 1800A

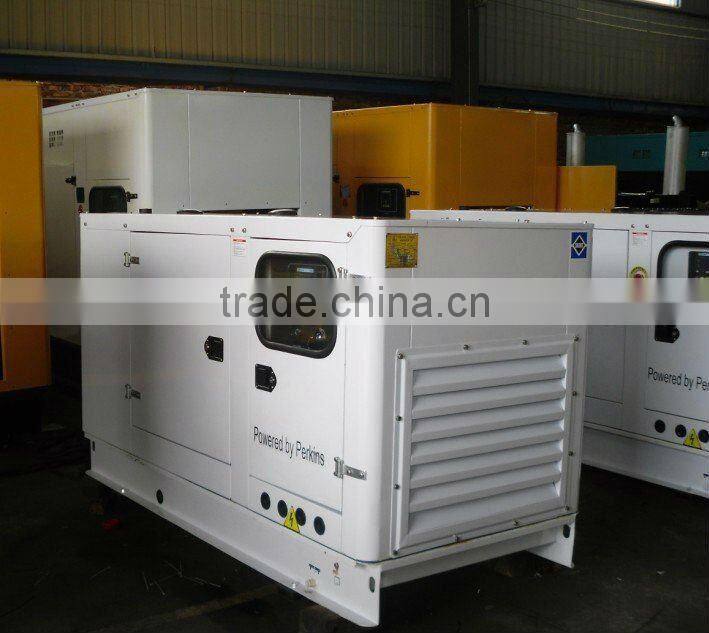

35kva to 150kva AC Power silent diesel genset With Cummins Engine



Our company is an approved OEM partner.So we can provide genuine genset with very competitive price and comprehensive technical support.So we have many genset for sale ( power range from 25kva to 1250kva)

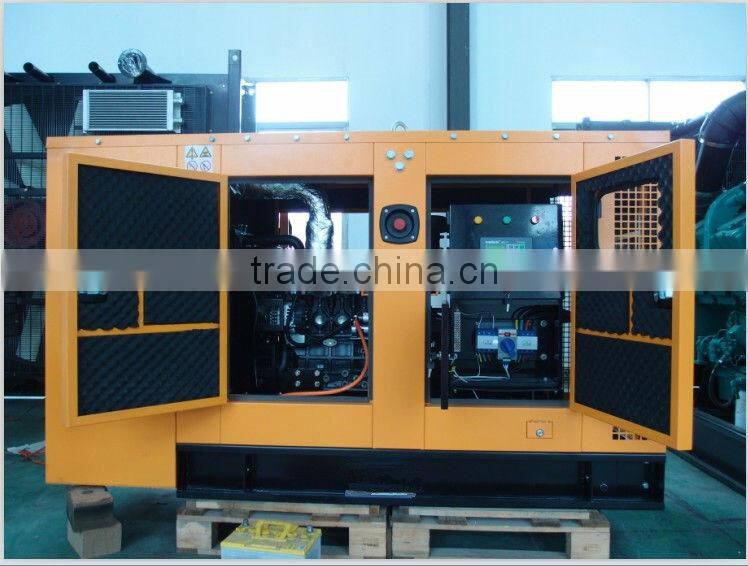

 35kva to 150kva AC Power silent diesel genset With Cummins Engine

Engine features of genset:

CUMMINS engine

Multi-cylinder in-line or veer engine.4-stroke,direct injection

Naturally aspirated,turbocharged,water cooled or turbocharged with air intercooler

Machinery or electronic governing

Fuel injection pump

Electric motor starting system

Forged steel crankshaft,castiron cylinder and replaceable wet type cylinder linder

Low discharge and low fuel consumption



Alternator features of genset:

World famous brand AC alternator:Leroy Somer,Stamford

Brushelss,e pole,rotation magnet

IP21-23(NEMA1) enclose is standard for all industrial alternators

H class insulation system

AVR self-regulated,voltage regulation rate:≤±1

Simple installation and maintenance with easy access to terminals,rotating diodes and coupling bolts

Wide range of flange adaptors and single bearing disc coupling

Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528



Controller system:

1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.

2.It can be with ATS electric control cabinet, including circuit breaker,  LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…



Genset ModelPrime PowerStandby PowerEngineFuel ConsumptionCylinder No.DisplacementBore X Stroke
KWKVAKWKVA(g/kwh) (L )(mm)
GNRC550400500440550KTA19-G4≤203618.9159*159
GNRC605440550484605KTAA19-G6≤204618.9159*159
GNRC625450563500625KTAA19-G7≤204618.9159*159
GNRC700500625560700KTA38-G≤2061237.8159*159
GNRC712520650570712QSK19-G3≤206619159*159
GNRC800580720640800KTA38-GA≤2091237.8159*159
GNRC825600750660825KTA38-G2≤2101237.8159*159
GNRC888640800710888KTA38-G2B≤2101237.8159*159
GNRC975720900780975KTA38-G2A≤2101237.8159*159
GNRC107580010008601075KTA38-G5≤2021237.8159*159
GNRC13751000125011001375KTA50-G3≤2151650.3159*159
GNRC15131100137512101513KTA50-G8 ≤2151650.3159*159
GNRC16751200150013401675KTA50-GS8 ≤2151650.3159*159
GNRC18751350168815001875QSK60-G3 ≤2151660159*159
GNRC20631500187516502063QSK60-G3 ≤2151660159*190

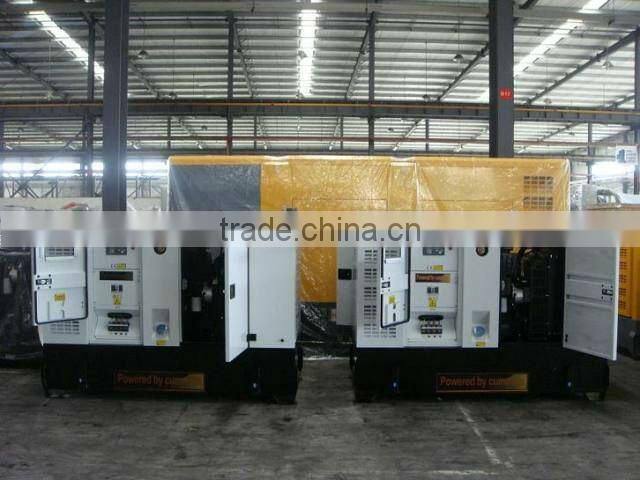

 35kva to 150kva AC Power silent diesel genset With Cummins Engine



 35kva to 150kva AC Power silent diesel genset With Cummins Engine35kva to 150kva AC Power silent diesel genset With Cummins Engine

 35kva to 150kva AC Power silent diesel genset With Cummins Engine
