1-5W Data Radio for Long Range Communication

Specifications

Introductions

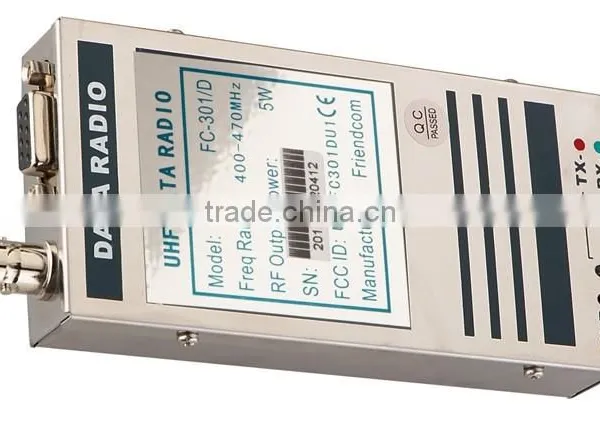

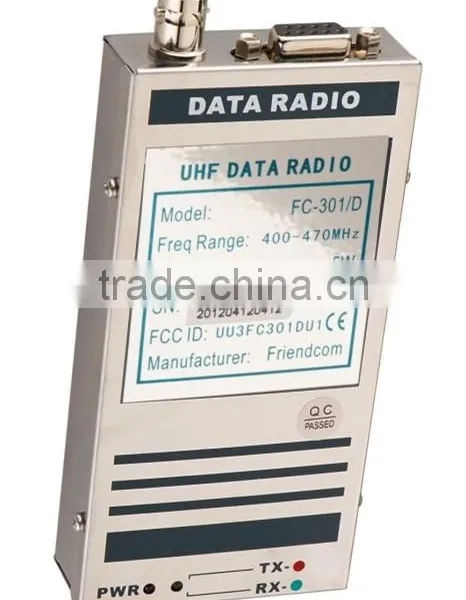

The FC-301/D Series of RF Link Modulesfrom Friendcom utilizes the latest technology in its design and manufacturing. Both the UHF and VHF models are PLL (Phase Lock Loop Synthesizer) / microprocessor controlled, and offer one to five watts of power with 16channel capability. Multiple functions including AC audio coupling, 1200 to 9600 baud rates GMSK and FSK modulation capability are standard in these fully programmable wide bandwidth RF Link Module units.

Features

• 16 Channels
• 1- 5 Watt Programmable Output
• 12.5 / 25 kHz Programmable Channel Spacing

Wiring diagram

The standard FC-301/D is shown as below picture. The pins of CON1, CON2 and CON3 are all connected via the bridge board

(As shown in Fig.2 and Fig.3).

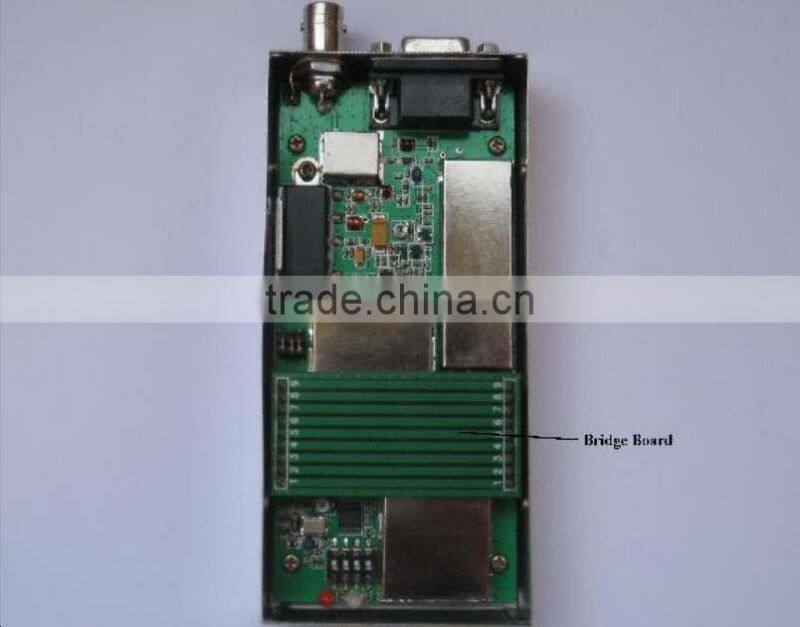

Fig.2. FC-301/D with bridge board

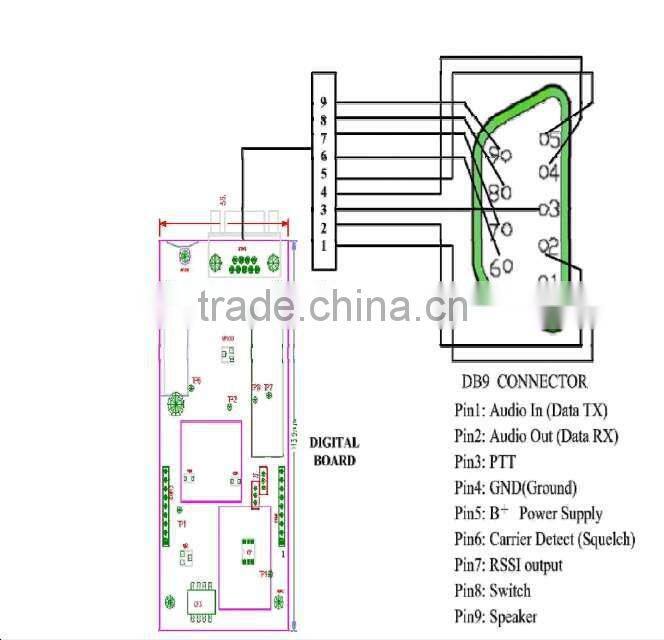

Fig.3. Wiring diagram
