Specifications
Point to point, or point to multi-points wireless data transmission systems such as electricity load monitor and controlProduct information

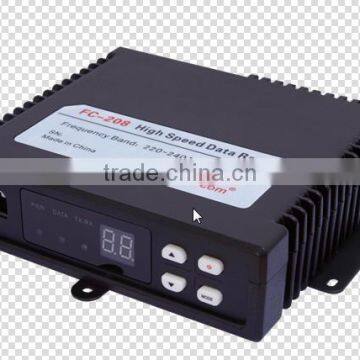

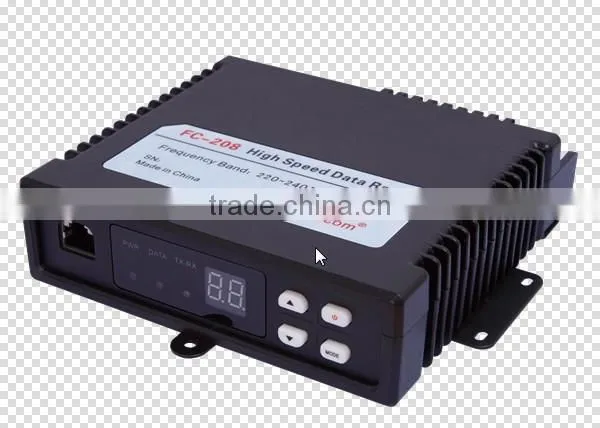

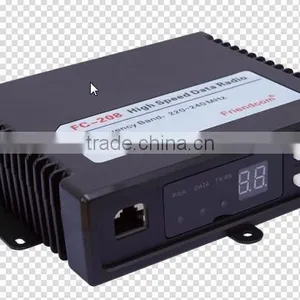

FC-208 is a low cost professional wireless communication FM data radio developed by Friendcom Technology. It works in band 230 MHz (223.025MHz~235MHz) and has a fast TX startup time. Two-points modulation is applied in the radio. Optional embedded data modem based on CMX969 can easily implement point to point, or point to multi-points wireless data transmission systems such as electricity load monitor and control, distribution automation or remote metering. FC-208 can be used as a Base radio working together with FC-206 as the Slave radio, and form a private radio network.
Key feature
- 5-25W RF power programmable
- Data transmission dedicated band (223.025-235MHz), preset on 99 channels with half duplex programmed, and be selectable by software
- Working temperature: -40℃~+70℃, meet industrial demand
- Transmission protection and can be set up for continuous transmission.
- TX startup time < 5ms. Fast RX/TX switch time.
- Provide internal, external modem interfaces. Highest date rate at19.2Kbps
- Built-in modem using forward error correction, interleaving / de-interleaving, error rate
- High receiver sensitivity, low data error rate
- Solid die-cast aluminum housing
- Strong anti-interference ability, long communication distance
- Operates from 12V to 16V, wide operating voltage
Description

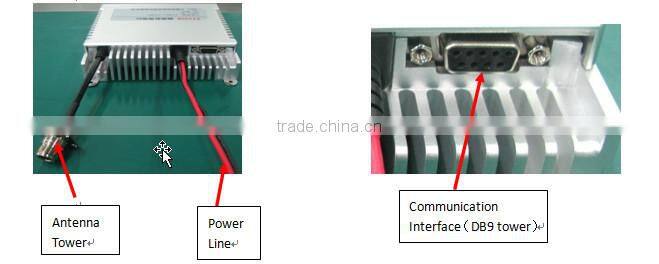

- DB9 tower when equipped with the built-in Modem for standard communication interface, otherwise analog interface.
- RJ45 data radio parameter setup
- Power line red, positive; black, negative,typical power supply DC +13.8V

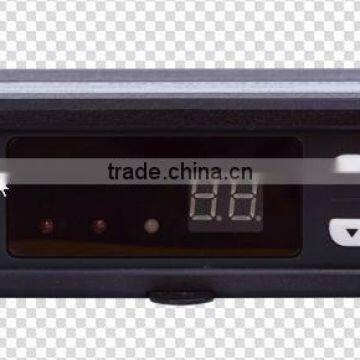

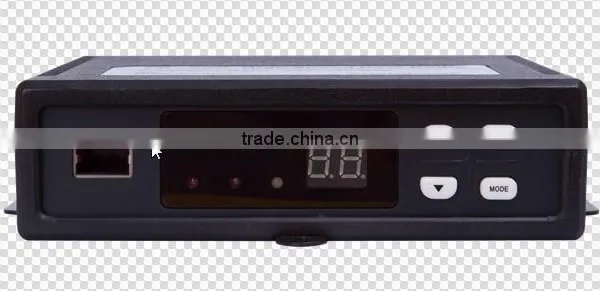

- LED indicator light the running state of radio
- Antenna tower connect to the 50Ω antenna
- Digital display display channel
- Function button modify radio channel, switch on the radio stations
Indictor light description
PWR indictor light: radio operation state,normally working state at frequency of 2Hz flash
TX/RX indictor light: RX/TX state,TX: red,RX: green
DATA indictor light: controlled by embedded Modem,defined according to the actual needs of specific circumstances.
