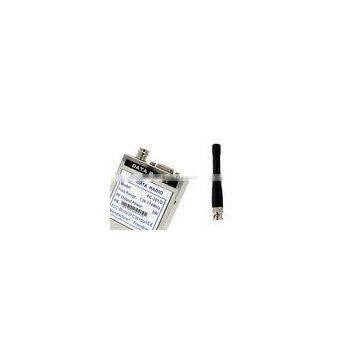

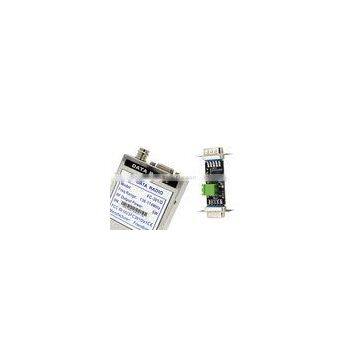

Help CenterFC-301D VHF 136MHz-174MHz 1-5W High Power Multi-channel Narrowband Data and Voice Radio Transceiver Module
Related Products
-
FC-1023 UHF 433MHz Transceiver ISM Free Band Wireless RF ModuleUS$ 2 - 3MOQ: 2 Pieces -
ISM Band Low Cost 500mW RF ModuleUS$ 10 - 15MOQ: 3 Pieces
-
Low Cost RF TX/RX Data ModuleNegotiableMOQ: 10 Pieces
-
Low Cost FSK ASK Wireless Transmit ModuleNegotiableMOQ: 10 Pieces
-
RF Transceiver ModuleNegotiableMOQ: 2 Pieces

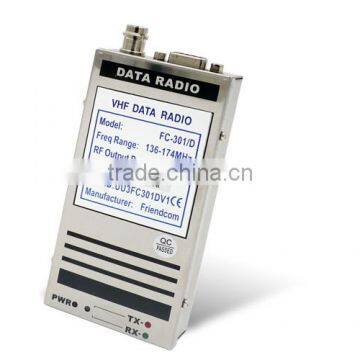

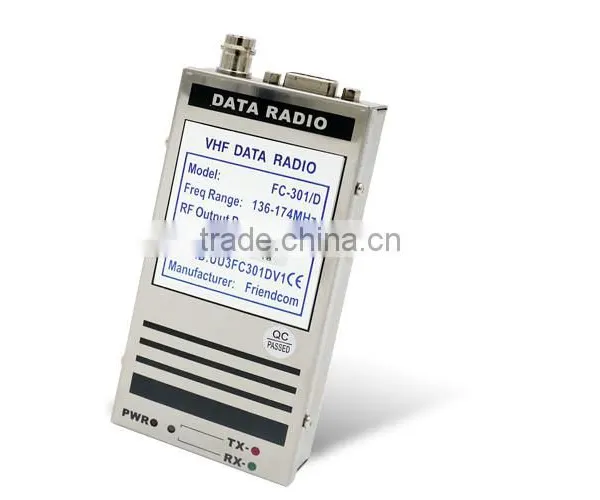

The FC-301/D Series of Radio Modem from Friendcom utilizes the latest technology in its design and manufacturing. Both the The VHF models which work at 136MHz-174MHz are PLL (Phase Lock Loop Synthesizer) / microprocessor controlled, and offer one to five watts of power with 16 channel capability. Multiple functions including AC audio coupling, 1200 to 9600 baud rates GMSK and FSK modulation capability are standard in these fully programmable wide bandwidth Radio Modem units.
Specifications
| Items | Parameters |
| Frequency Band | VHF:136-174MHz |
| Channel Spacing | 25KHz/12.5KHz optional |
| RF Output Power | 1W - 5W Programmable |
| Modulation type | 16K0F3E, 8K5F3E |
| Intermediate Frequency | 45.1MHz & 455KHz |
| Number of Channels | 16 |
| Frequency Stability | ±2.5ppm |
| RX Sensitivity(12dB Sinad) | VHF <-118 dBm |
| Operation Rating | Intermittent 5:5:90 ( TX: RX: Standby) |
| Power Supply | 12.5V DC Nominal Voltage |
| TX Current (5W RF Power, 12.5V) | < 1.5A |
| Standby (Muted) Current | ≤40mA |
| Operating Temperature Range | from –30°C to +65°C |
| Dimensions | (120mm)L x (60mm)W x (20mm)H |
| Time TX to RX | < 20 ms |
| Time RX to TX | < 25 ms |
| Weight | 200g |
| Antenna Impedance | 50 Ohm |
| Antenna Port | BNC connector, female |
Packages are generally dispatched within 3 days after receipt of payment and are shipped via DHL with tracking and drop-off without signature. If you prefer delivery by DHL Extra with required signature, an additional cost will be applied, so please contact us before choosing this method. Whichever shipment choice you make, we will provide you with a link to track your package online.
Shipping fees include handling and packing fees as well as postage costs. Handling fees are fixed, whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed separately, and shipping fees will apply to each of them. Your package will be dispatched at your own risk, but special care is taken to protect fragile objects.
The images shown are for your reference only and some parts may be little difference. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Boxes are amply sized and your items are well-protected.
Friendcom, a provider of wireless M2M solutions, who dedicated to wireless communications research for more than 10 years.
As an owner of independent intellectual property of CellMesh wireless fixed network, we provide comprehensive solutions for smart grid, utility metering, wireless connectivity and test equipment. We also serve in the area of smart home,intelligent security, intelligent transportation, precision agriculture, utilities meter data collection, etc.
We persist to create value for clients by continuous technology innovation and invest 10% of revenue for R&D. Hundreds of our engineers focus on technology innovation, establish joint laboratories with several world's first-class customers and industry-chain partners for collaborative innovation. We have nearly a hundred patents and software copyrights. We also play an important role in the establishment of Chinese wireless communication standard.
We cooperate closely with several domestic and overseas first-class universities, research institutions and laboratories, to consolidate and enhance our core competencies, to strive to be the leading supplier of wireless M2M solutions.
We’re ready to contribute our effort to promote wireless M2M development and application
