Low Cost FSK ASK Wireless Transmit Module

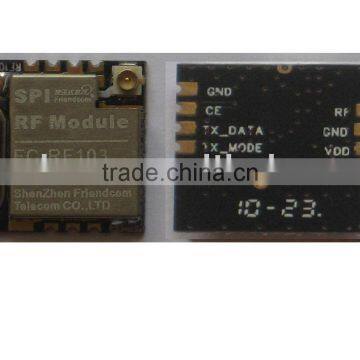

Low Cost FSK ASK Wireless Transmit Module thumbnail-1

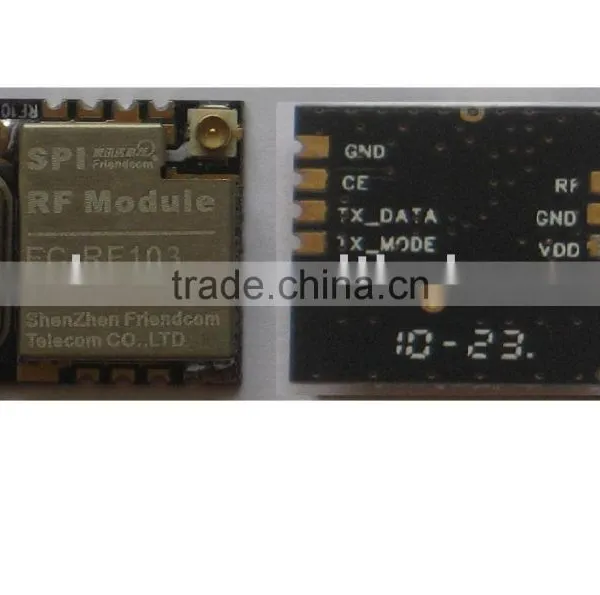

Low Cost FSK ASK Wireless Transmit Module photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Friendcom
Model Number:
FC-RF103
Contact Supplier Request Quote Chat Now
Shenzhen Friendcom Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Friendcom
Model Number FC-RF103

Specifications

RF transmit module (FC-RF103)
433Mhz , Low-cost and small size
FSK,ASK optional, work with PT2262

RF transmit module (FC-RF103)

Applications:

remote control, TMP,

Wireless sensor

wireless data communication ,

Keyless entry,

home automation,

wireless toy. Etc.



Technical Specifications:

Work frequency:  433MHz/ 420-440MHz

Work voltage:  DC3V(2.2--3.3V)

TX  current:  16mA@10dbm

RF power : Max 10dbm

Sleep current:  <1uA

 Max RF Data rate:  20kbps

Modulation: FSK/ASK optional

Programming interface:  SPI

Dimension: 17.6mm×16.1mm×5mm

Working temperature: -40C degree--+85C degree

Storage temperature::  -55C degree--+125C degree



Pin Description:



Pin No.

Name

Description

1

RF

Antenna port

2

GND

GND

3

VDD

Power supply

4

SPIS

Digital input, control mode selection: 0 for hardware control mode; 1 for SPI control mode

5

TX_MODE

Modulation selection / SPI enable, Modulation selection: 0 for ASK;  1 for FSK

6

TX_DATA

TX Data / SPI Data

7

CE

Enable / SPI Clock

8

GND

GND
