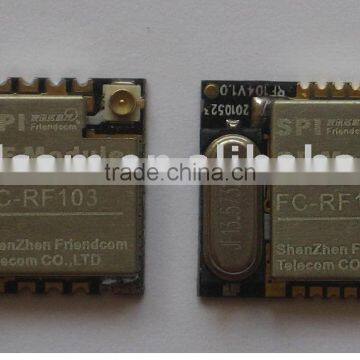

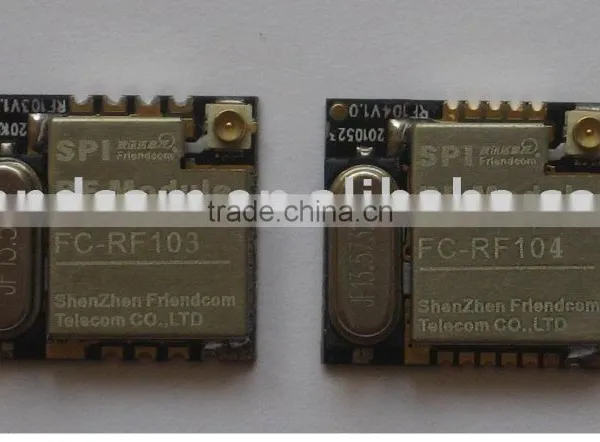

Low Cost RF TX/RX Data Module

Low Cost RF TX/RX Data Module thumbnail-1
Low Cost RF TX/RX Data Module photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Friendcom
Model Number:
FC-RF103_104
Contact Supplier Request Quote Chat Now
Shenzhen Friendcom Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Friendcom
Model Number FC-RF103_104

Specifications

RF data module (FC-RF103_104)
Low-cost and small size
ISM ,20kbps

RF TX/RX module (/FC-RF104)

Applications:

wireless data communication ,

remote control,

Keyless entry,

home automation,

wireless toy. Etc.



Specifications:

TX Module : FC-RF103

Work frequency:  433MHz

Work voltage:  DC3V(2.2--3.3V), typical 2.8VDC

Tx current:  16mA @ 10dBm

Sleep current::  1uA

Max RF Data rate:  Max 20kbps

Modulation: FSK/ASK optional

Programming interface:  SPI

Dimension: 17.6mm×16.2mm×5mm

Working temperature: -40C degree--+85C degree

Storage temperature::  -55C degree--+125C degree



RX Module : FC-RF104

Work frequency:  433MHz

Work voltage:  DC3V(2.2--3.3V), typical 2.8VDC

Receive current:: <10mA

Sleep current::  1uA

Max RF Data rate:  20kbps

Sensitivity:

             -105dBm @20Kbps DEV = 12KHz BER = 1E-3

Modulation: FSK/ASK optional

Programming interface:  SPI

Dimension: 17.6mm×16.2mm×5mm

Working temperature: -40C degree--+85C degree

Storage temperature::  -55C degree--+125C degree

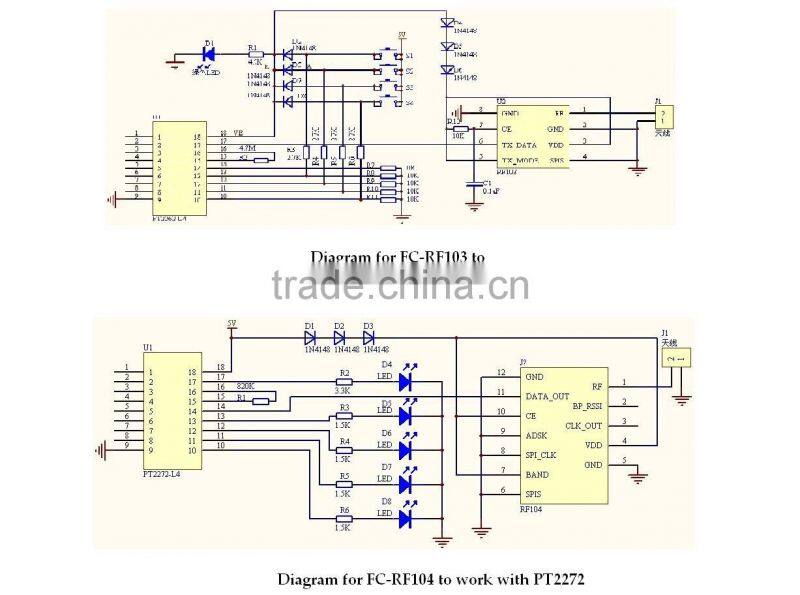

 Typical application diagram(work with PT2262 /PT2272):

low cost RF TX/RX data module
