Home > Products > RF module for AMR > Wireless transmitter and receiver 250kbps
Wireless transmitter and receiver 250kbps
- 5000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Friendcom | Model Number: | FC-RF1023 |
Product Description
Specifications
1 Frequency band: 315MHz 433MHz 470MHz 868MHz 915MHz2 Data Rate: 250kbps
3 Dimension: 18.6*17.55*5mm
4 Low price

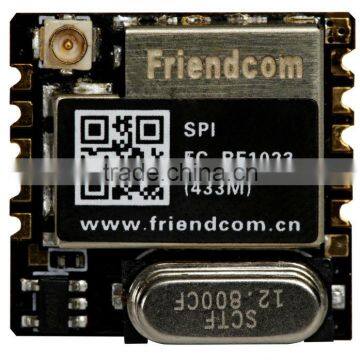

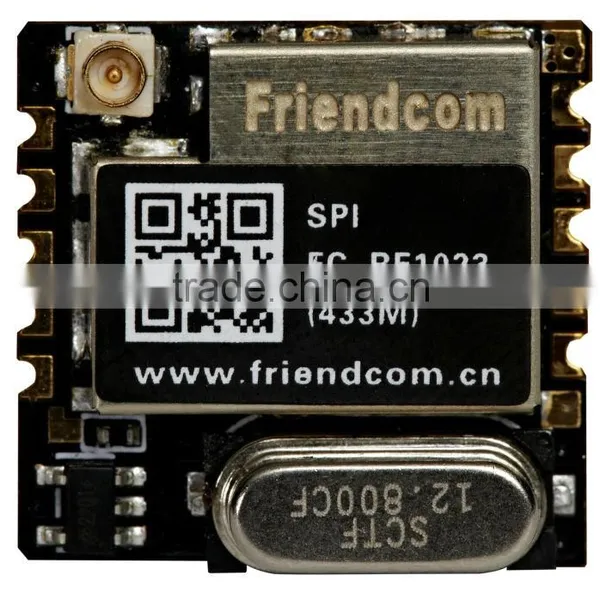

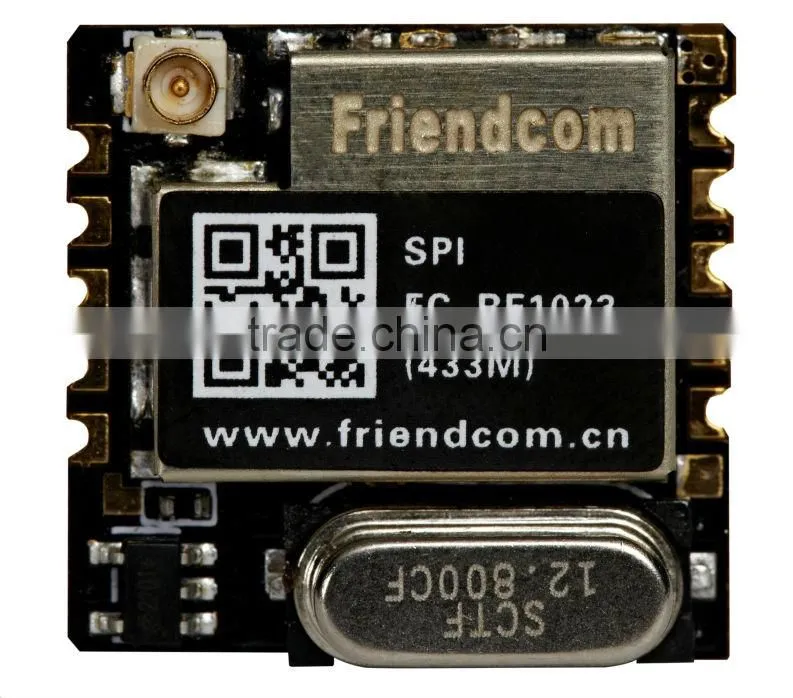

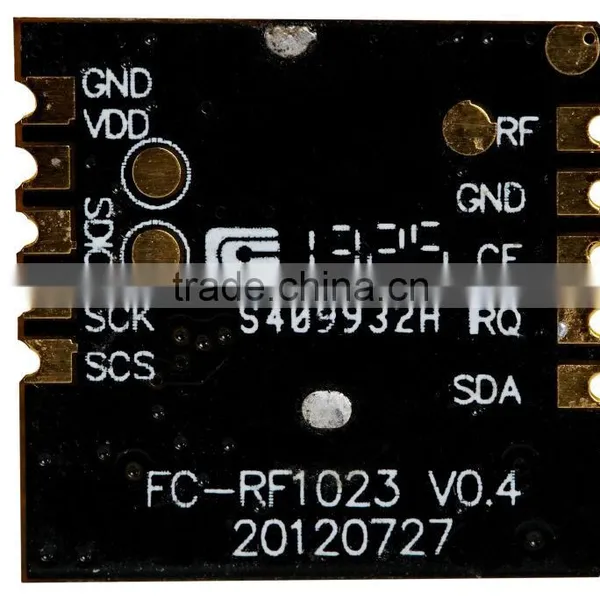

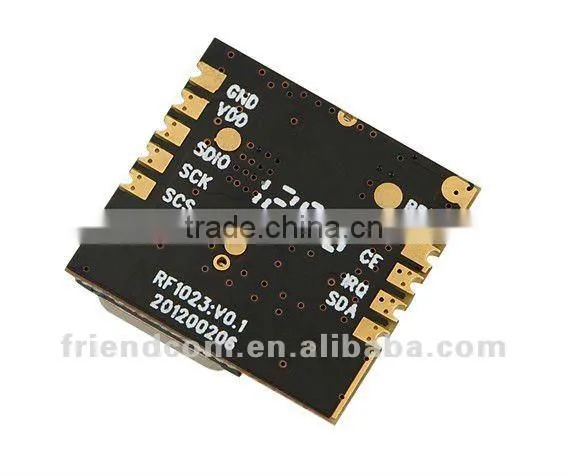

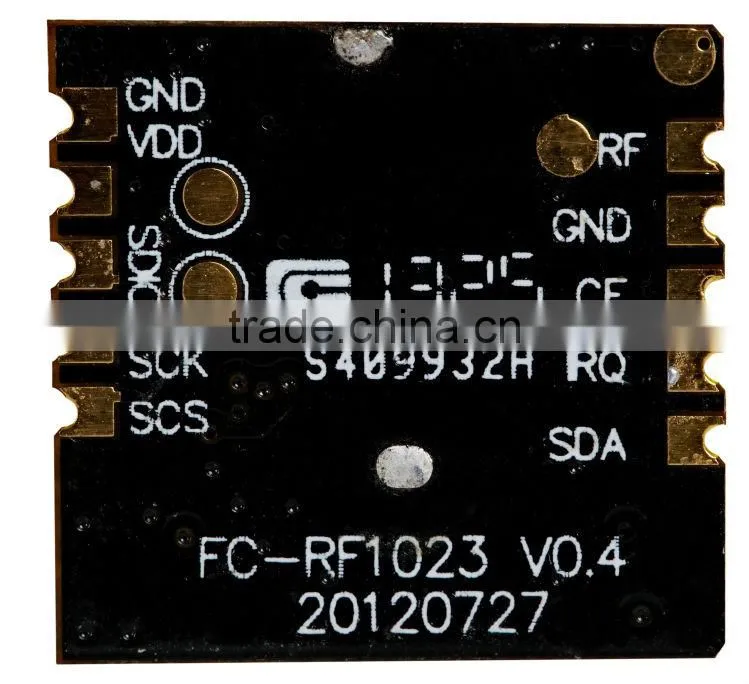

FC-RF1023 Wireless transceiver
Technical Specification
No. | Items |
1 | Frequency band: 315MHz / 433MHz /470MHz / 868MHz / 915MHz optional |
2 | Operation voltage: DC3V(2.2--3.6V) |
3 | TX current: 90mA @ 20dBm |
4 | RX current: 14mA |
5 | Sleep current: 1uA |
6 | RF output power: maximum 20dBm(0dBm,5dBm,10dBm,15dBm, 20dBm programmable ) |
7 | RF data rate: 250kbps |
8 | Receiver sensitivity: -120dBm@2Kbps Dev = 8K -116dBm@10Kbps Dev = 12.5K -110dBm@50kbps Dev = 18.75K -107dBm@100Kbps Dev = 37.5K -104dBm@150Kbps Dev = 56.25K |
9 | Modulation mode: FSK |
10 | Program interfaces: SPI and IIC digital interface |
11 | Dimension: 18.6×17.55×5mm(Length X width X height) |
12 | Operation temperature: -40°C -- +85°C Storage temperature: -55 °C -- +125°C |
