Oven Capacitor CH85 2100VAC Capacitor for Microwave
- T/T Credit Card
You May Like
-
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor
-
Microwave Oven Magnetron 6 Holes for Mounting Foot Magnetron
-
Microwave Oven Magnetron 2m261-m32
-
4 Sheet 6 Holes Magnetron 500W Microwave Oven Magnetron for LG
-
Microwave Oven Parts Magnetron Original Quality Magnetron LG
-
900W Microwave Oven Part Magnetron 6 Holes
Product Description

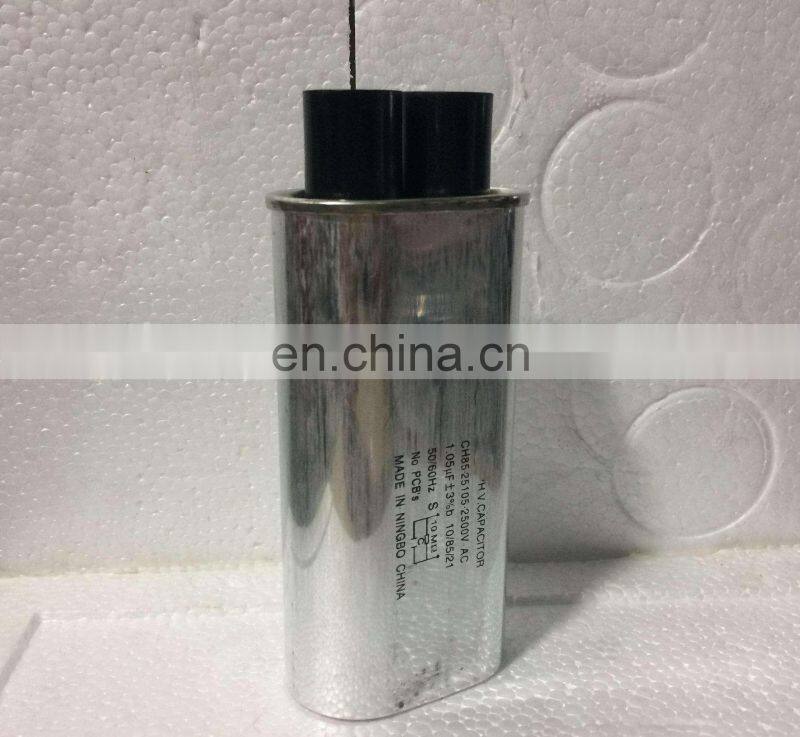

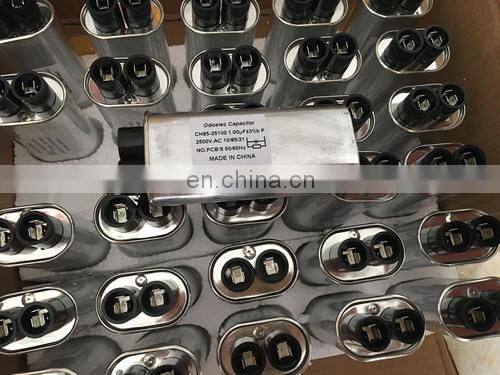

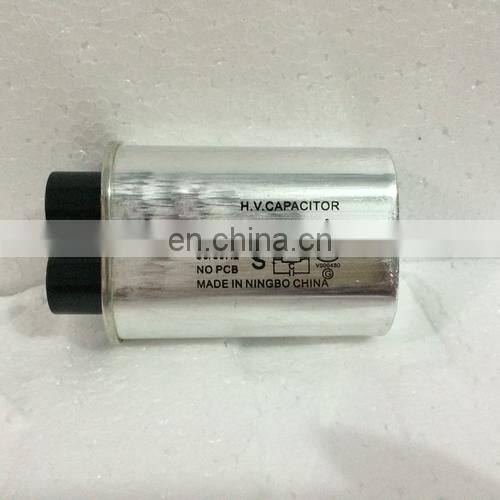

CH85/CH86 Capacitor for Microwave Ovens
Features:
The capacitor is applied in industry and Mirrowave Ovens etc. The product is composite dielectric structure by oil immersion
The capacitor has advantage of good heat dissipation ,high pressure value,small dimension,small dielectric loss,high capacity precision,And it can be work stably with voltage for long time ,it is safe and reliable
Ambient Temp. | Rated Voltage | Range of Capacitance | Testing Volatge | Discharge Resistance | Operating Frequency |
-10~85°C | ≦3000VAC | 0.5~1.4uF | T_T : DC4.3Un*1.05/10S T_C : AC 10000V/60S | 10±20% | 50/60Hz |
Outline Size: | ||||||||||||||
Rated Cap | L±1 | B±1 | H±5 | Rated Cap | L±1 | B±1 | H±5 | |||||||
0.50uf | 32 | 52 | 60 | 0.92uf | 32 | 52 | 70 | |||||||
0.60uf | 32 | 52 | 60 | 0.95uf | 32 | 52 | 75 | |||||||
0.65uf | 32 | 52 | 60 | 1.00uf | 32 | 52 | 75 | |||||||
0.70uf | 32 | 52 | 65 | 1.05uf | 32 | 52 | 75 | |||||||
0.75uf | 32 | 52 | 65 | 1.07uf | 32 | 52 | 80 | |||||||
0.80uf | 32 | 52 | 70 | 1.10uf | 32 | 52 | 80 | |||||||
0.85uf | 32 | 52 | 70 | 1.15uf | 32 | 52 | 85 | |||||||
0.90uf | 32 | 52 | 70 | 1.20uf | 32 | 52 | 90 | |||||||
Technical Parameters: | ||||||
Reference standard | GB/T18939.1,IEC61270-1,VDE0560 PART2,JIS C 4908 | |||||
Climatic category | 10/85/21 | |||||
Rated voltage | 2100VAC/2500VAC(50/60Hz) | |||||
Capacitance range | 0.5uf~1.2uf | |||||
Capacitance tolerance | ±3% ~ ±4% | |||||
Test voltage | T-T | 4.3*UN (VCD)/10s | ||||
T-C | 2.4*Um + 1200 (VAC)/1s | |||||
Dissipation factor (at 20 °C) | ≦0.003(1KHz) | |||||
Service Rating | Standard (S) | |||||

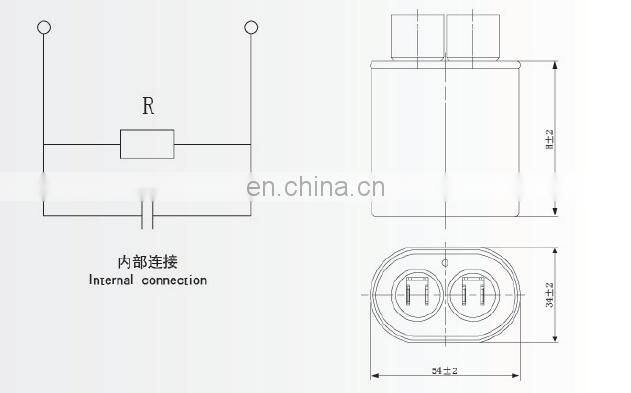

Standard Outline size (Unit :mm) | ||||||

CBB65 ROUND RUN CAPACITOR

SPP SERIES STATR CAPACITOR

CBB65 OVAL RUN CAPACITORS

CBB60 SERIES RUN CAPACITORS


CBB61 SERIES RUN CAPACITOR





1.Accept OEM & ODM for customer
2.Free samples offer &Small order welcomed
3.Two years quality guarantee
4.Printing : ink & laser , aslo have sticker label
5.Packing : 50PCS/CTN , have industrial packing and color box packing


ARH Exhibition in USA

IHE Exhibition in Iran

ISK-SODEX Exhibition in Turkey

Vietnam Exhibition

Thailand Exhibition

Indonesia Exhibition
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
