Help CenterNfc Card Reader Writer Support ISO/IEC 18092,ISO14443A Protocol to Read and Write Can be Used for Access Control System
Related Products
-
RFID Reader 125KHz EM4100 With USB and RS232 OptionalUS$ 5 - 10MOQ: 1 Piece -
HF Desktop Rfid Ethernet Card Reader TCP/IP InterfaceUS$ 78 - 85MOQ: 1 Piece
-
ISO 15693 Standard Rfid Card Reader 13.56 Mhz Rfid ReaderUS$ 20 - 25MOQ: 1 Piece
-
13.56mhz Rfid Card Reader Writer Usb/rs232 Interface Support ISO14443A/B/ISO15693 Protocol Come With SDK,demo SoftwareNegotiableMOQ: 10 Pieces
-
Smartphone RFID Reader With Micro Usb InterfaceUS$ 7.5 - 15MOQ: 1 Piece
Specifications
1.nfc card reader writer2 13.56MHz
3.ISO/IEC 18092,ISO14443A
4.USB interface
5.Size:98mmX65mmX12.8mm
nfc card reader writer support ISO/IEC 18092,ISO14443A protocol to read and write can be used for access control system
Features
l CCID-compliant
l PC/SC-compliant
l Read/write speed up to 424 kbps
l Built-in antenna for contactless tag access, with card reading distance of up to 50mm(depends on tag type)
l Supports ISO14443 Type A and B, FeliCa, and all 4 types of NFC (ISO/IEC 18092) TAG
l Supports all 3 modes of NFC reader mode, card emulation and peer-to-peer mode
l Built-in anti-collision featured( at least 1 card is detected when multiple cards are presented)
l USB PnP
l Bi-color LED
l Compact size: 98mm(L)X65mm(W)X12.8mm(H)
l Light Weight:70g
l Compliance with CE, FCC,VCCI and ROHS
l User-controllable buzzer (optional)
Technical Specification
Universal Serial Bus Interface | |
Power source | From USB |
Speed | 12 Mbps(Full Speed) |
Supply voltage | Regulated 5V DC |
Supply Current | 200mA (maximum) 50Ma (standby),100Ma (normal) |
Contactless smart card interface | |
Standard | ISO/IEC 18092,ISO14443A and B, FeliCa |
Protocol | Felica protocol, T=CL protocol |
Operation Frequency | 13.56MHz |
Smart card read/write speed | 106kbps, 212 kbps, 424 kbps |
Casing | |
Dimensions | 98mm(L)X65mm(W)X12.8mm(H) |
Weight | 70 grams |
Material | Polycartionate (PC) |
Color | Pearl White |
Antenna size | 50X40mm |
Operating distance | Up to 50mm |
Built-in Peripherals | |
BI-Color LED | Bi-color LED, red and green |
Buzzer | Monotone (optional) |
Operating Conditions | |
Temperature | 0~50 C |
Humidity | 10%~80% |
Cable connector | |
Length | 1m(USB) |
Certifications/Compliance | |
PC/SC ,CCID,CE,FCC,VCCL,ROHS compliant | |
Microsoft WHOL 2000,XP,Vista 7 | |
Device driver operating system support | |
Windows 2000, Server 2003,XP, Vista, Server 2008,7 Windows CE 5.0 Linux, Mac OS X | |
Typical Applications
l Network access control
l Micro-payment
l NFC mobile tag
l Public transportation terminals
l Automatic fare collection
l Physical access control
l Customer loyalty
l Time and attendance
l Contactless public phones
l Vending machines
1.Much more detailed information,please come to below link to check:
/productdetails.aspx?pid=485
2.We can provide SDK,demo software,user manual,these documents will help you develop the software for your application.
3.When you buy our reader,we also can provide free sample card to you for testing.

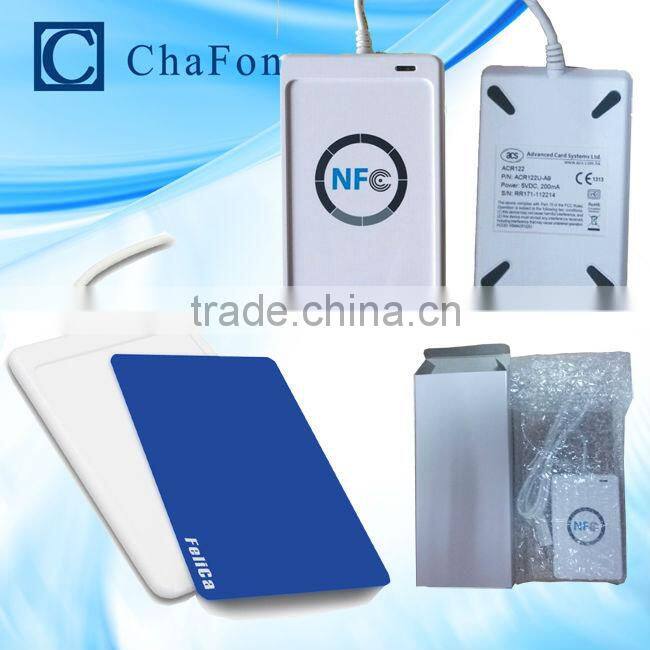

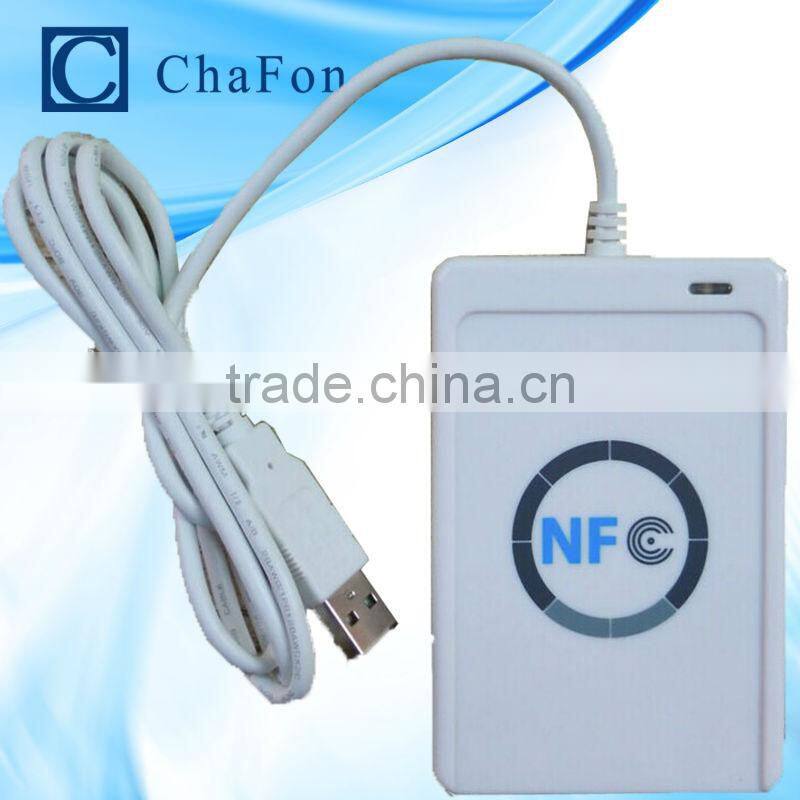

Product picture
