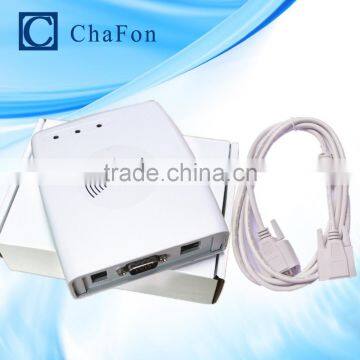

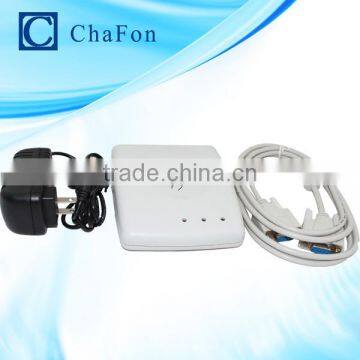

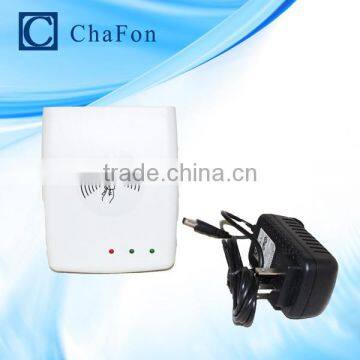

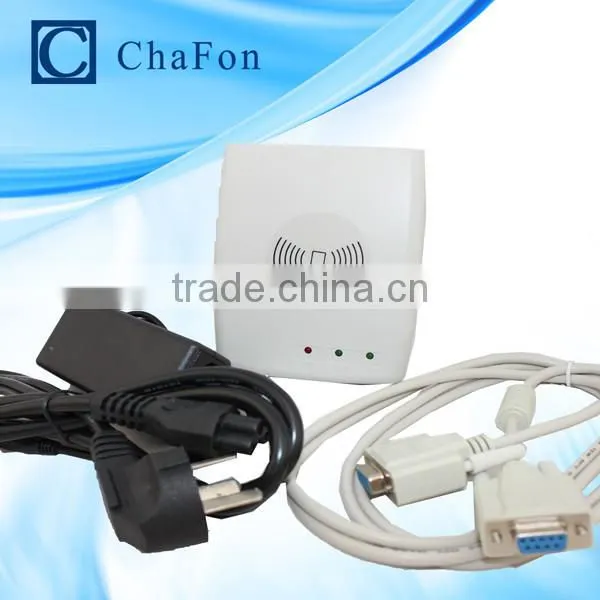

HF desktop rfid ethernet card reader TCP/IP interface
Product Description
CF-RH390 is a high performance Multi-Protocol HF tag reader supporting ISO/IEC15693, ISO14443TypeA/TypeB. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
Product mode explanation
Model |
Standard |
interface |
CF-RH391 |
IS014443A |
R(RS232)/TCP/IP |
CF-RH392 |
IS014443A/B |
R(RS232)/TCP/IP |
CF-RH393 |
ISO15693 |
R(RS232)/TCP/IP |
CF-RH394 |
ISO/IEC14443A/B,ISO15693 |
R(RS232)/TCP/IP |
Features
1.Self-intellectual property;
2.Support mainstream ISO/IEC15693, ISO14443TypeA/TypeB protocol tag (TI, PHILIPS, ST, FUJITSU, EM);
3.Advanced tag processing algorithm, high identification rate;
4.Built-in TX/RX antenna with effective distance up to 100mm *;
5.Low power dissipation design with single DC+12V power source needed;
6.Support TCP/IP and RS232 interface and provide DLL and demonstration software to 7.facilitate development;
8.Provide DLL and demonstration software to facilitate development.
Parameter
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC |
12 |
V |
Operating Temp. |
TOPR |
-10~+60 |
°C |
Storage Temp. |
TSTR |
-25~+80 |
°C |
Electrical and Mechanical Specification
Under TA=25°C,VCC=+12V unless specified
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC |
11.5 |
12 |
15 |
V |
Current Dissipation |
IC |
|
150 |
200 |
mA |
Frequency |
FREQ |
|
13.56 |
|
MHz |
Effective Distance * |
DIS |
0 |
80 |
100 |
mm |
