13.56mhz Rfid Card Reader Writer Usb/rs232 Interface Support ISO14443A/B/ISO15693 Protocol Come With SDK,demo Software

Name: 13.56mhz Rfid Card Reader Writer Usb/rs232 Interface Support ISO14443A/B/ISO15693 Protocol Come With SDK,demo Software
Brand: ChaFon
SKU: 140576064
Availability: InStock

Shenzhen Chafon Technology Co., Ltd.

13.56mhz Rfid Card Reader Writer Usb/rs232 Interface Support ISO14443A/B/ISO15693 Protocol Come With SDK,demo Software thumbnail-1

13.56mhz Rfid Card Reader Writer Usb/rs232 Interface Support ISO14443A/B/ISO15693 Protocol Come With SDK,demo Software photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ChaFon

Model Number:

CF-RH320

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ChaFon

Model Number CF-RH320

13.56MHz rfid card reader writer usb/rs232 interface

Product Description

Product description

CF-RH320 series desktop readers are smart modules without touching based on international standard agreement ISO14443A/B,ISO15693

CF-RH320 are equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC by means of interface.

CF-RH320 are of high capability, anti-jamming, small size and good quality, which brings more convenience.

Product mode explanation

Model	standard	interface	color
CF-RH321	IS014443A	U(USB)/R(RS232)	B(black)/W(white)
CF-RH322	IS014443A/B	U(USB)/R(RS232)	B(black)/W(white)
CF-RH323	ISO15693	U(USB)/R(RS232)	B(black)/W(white)
CF-RH324	ISO/IEC14443A/B,ISO15693	U(USB)/R(RS232)	B(black)/W(white)

Capability specifications

Name	HF Reader&write
Dimension	104x68x10mm
Standard	ISO 14443A,ISO15693
Support	MIF 1K; MIF 4K ;MIF UltraLight; Mif Pro; AT88RF020;66CL160S;SR176; SRIX4K(TYPE-B); I-Code2; TI RFid Tag-it,EM4135,EM4034 etc.
Frequency	13.56MHz
speed	106kbit/s
Baud Rate	9600 bit/s
Power Supply	+5V DC
Consumed Current	< 80Ma
Operating Distance	50--70mm
Interface	USB/RS232
Status Indication	1pcs LED;1pcd buzzer
Service Temperature	-10℃ ~ +70℃
Store Temperature	-20℃ ~ +80℃

Product application

Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, public transportation, such as toll collection system.

Packaging & Shipping

1.Packing: one reader with one box

2.Shipping:we will delivery goods by Express,such as DHL,FedEx,UPS,TNT etc

Our Services

1.Our reader come with completed English SDK,demo software,user manual and source code,and those documents will help you develop the software for your application.

2.When you buy our reader,we can provide free sample card to you for testing

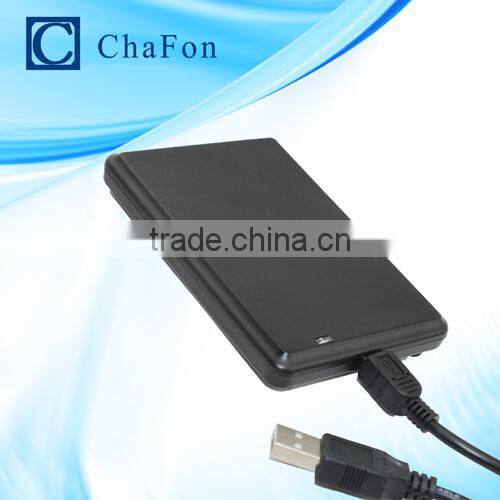

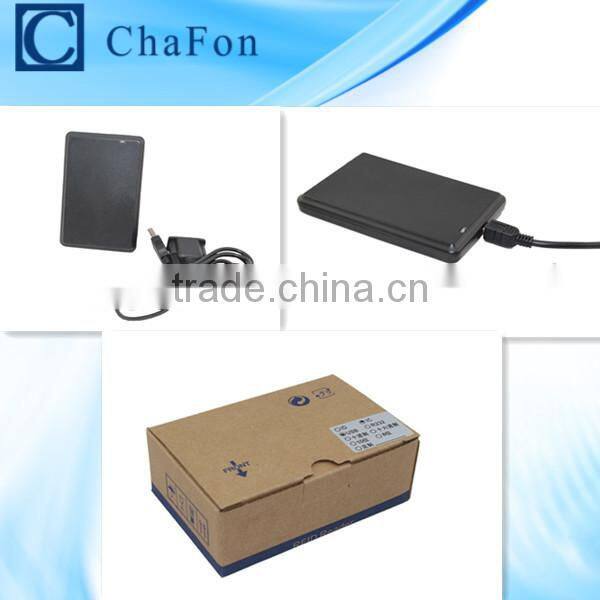

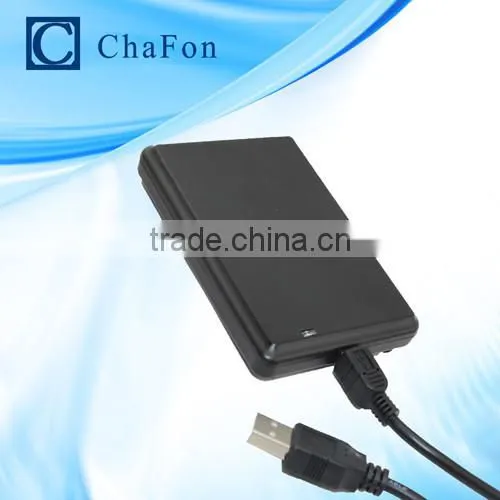

Product picture
