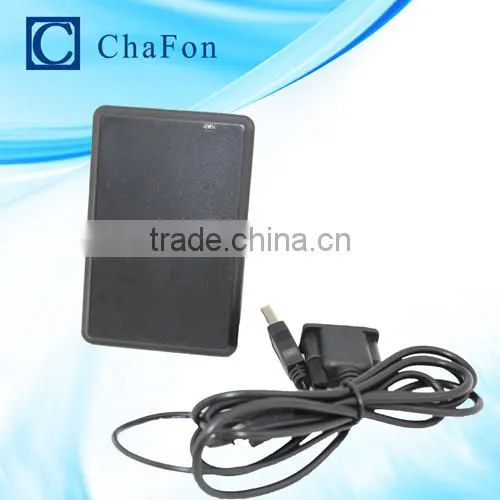

ISO 15693 Standard Rfid Card Reader 13.56 mhz rfid reader
Product description
CF-RH320 series desktop readers are smart modules without touching based on international standard agreement ISO14443A/B,ISO15693
CF-RH320 are equipped with high capability chip, processor, security and electric monitor. The readercan communicate with PC by means of interface.
CF-RH320 are of high capability, anti-jamming, small size and good quality, which brings more convenience.
Product mode explanation
Model | standard | interface | color |
CF-RH321 | IS014443A | U(USB)/R(RS232) | B(black)/W(white) |
CF-RH322 | IS014443A/B | U(USB)/R(RS232) | B(black)/W(white) |
CF-RH323 | ISO15693 | U(USB)/R(RS232) | B(black)/W(white) |
CF-RH324 | ISO/IEC14443A/B,ISO15693 | U(USB)/R(RS232) | B(black)/W(white) |
Capability specifications
Name | HF Reader&write |
Dimension | 104x68x10mm |
Standard | ISO 14443A/ISO15693 |
Support | MF One S70; MF One UltraLight; MF One S50 ects |
Frequency | 13.56MHz |
speed | 106kbit/s |
Baud Rate | 9600 bit/s |
Power Supply | +5V DC |
Consumed Current | < 80Ma |
Operating Distance | 50--70mm |
Interface | USB/RS232 |
Status Indication | 1pcs LED;1pcd buzzer |
Service Temperature | -10℃ ~ +70℃ |
Store Temperature | -20℃ ~ +80℃ |
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, public transportation, such as toll collection system.
1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antenna,
include 125KHz , 13.56MHz and 860-960MHz three frequency.
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
