Smartphone RFID Reader with micro usb interface
Product Description
CF-RH400 is a portable 13.56mhz reader only, can connect with Android device via mini USB interface. Plug&play, don’t need additional power supply.
Exquisite and small design not only simple and convenient in using, but also reading accurately and reliable.
It not only can be used on Android system mobile phone and tablet, can be also used in pc via OTG Converter. Will output ID number in output software (such as notepad, WORD, EXCEL, etc editor).
Parameter
v Frequency:13.56mHZ
v Support:ISO14443A protocol
v Operate system:Android(testing mobile: Samsung,Sony,VIVO,MIUI)

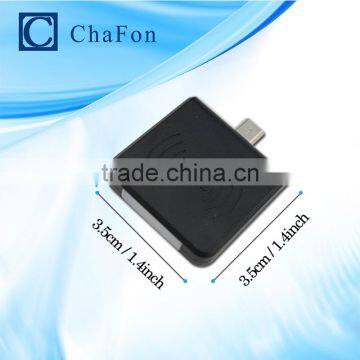

v Product size(interface not included): 35MM×35MM×7MM
v Package size: 71mm×71mm×19mm
v Read range : 0-30MM(front/back side reading);0-10MM(flank reading)
v Reader time: <100MS
v Read speed: 0.5S/time
v Read interval: 0.3S
v Interface: mini USB
v Power supply: USB
v Weight: 20G(NW)/50G(GW)
v Service Temperature:(-20℃~85℃)
v Humidity:(5%~95%)
v Power supply: 5V
v Consumed Current:100mA
v Status Indication:2 co lour LED(blue lighting or green lighting)
Using method

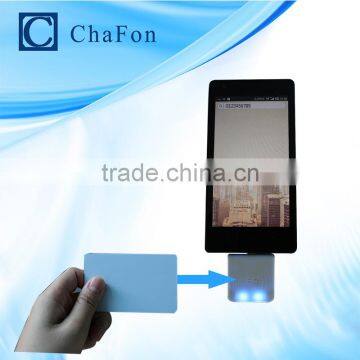

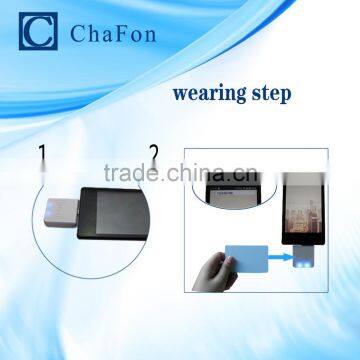

The reader connect with Android mobile phone through Micro USB interface,LED co lour in blue ,it means reader is waiting for reading cards.
Open ooutput software(such as memorandum/Note editor) in mobile/tablet, put card close to reader,will output the ID card number in output software, and enter a new line..
Packing: 1pc packed in carton
Shipping:We can choose DHL,Fedex,UPS ect to ship.
