Specifications
1,acr122 nfc contactless smart card reader2.ISO/IEC 18092,ISO14443A and B, FeliCa, Mf Classics standard
3,USB PnP
4,PC/SC
acr122 nfc contactless smart card reader PC/SC-compliant support ISO14443A/B/ISO18092 nfc tags
Product Features
- CCID-compliant
- PC/SC-compliant
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50mm(depends on tag type)
- Supports ISO14443 Type A and B, Mi*fare , FeliCa, and all 4 types of NFC (ISO/IEC 18092) TAG
- Supports all 3 modes of NFC reader mode, card emulation and peer-to-peer mode
- Built-in anti-collision featured( at least 1 card is detected when multiple cards are presented)
- USB PnP
- Bi-color LED
- Compact size: 98mm(L)X65mm(W)X12.8mm(H)
- Light Weight:70g
- Compliance with CE, FCC,VCCI and ROHS
- User-controllable buzzer (optional)
Technical Specification
Universal Serial Bus Interface | |
Power source | From USB |
Speed | 12 Mbps(Full Speed) |
Supply voltage | Regulated 5V DC |
Supply Current | 200mA (maximum) 50Ma (standby),100Ma (normal) |
Contactless smart card interface | |
Standard | ISO/IEC 18092,ISO14443A and B, FeliCa, Mi*fare Classics |
Protocol | Felica protocol, T=CL protocol |
Operation Frequency | 13.56MHz |
Smart card read/write speed | 106kbps, 212 kbps, 424 kbps |
Casing | |
Dimensions | 98mm(L)X65mm(W)X12.8mm(H) |
Weight | 70 grams |
Material | Polycartionate (PC) |
Color | Pearl White |
Antenna size | 50X40mm |
Operating distance | Up to 50mm |
Built-in Peripherals | |
BI-Color LED | Bi-color LED, red and green |
Buzzer | Monotone (optional) |
Operating Conditions | |
Temperature | 0~50 C |
Humidity | 10%~80% |
Cable connector | |
Length | 1m(USB) |
Certifications/Compliance | |
PC/SC ,CCID,CE,FCC,VCCL,ROHS compliant | |
Microsoft WHOL 2000,XP,Vista 7 | |
Device driver operating system support | |
Windows 2000, Server 2003,XP, Vista, Server 2008,7 Windows CE 5.0 Linux, Mac OS X | |
Typical Applications
- Network access control
- Micro-payment
- NFC mobile tag
- Public transportation terminals
- Automatic fare collection
- Physical access control
- Customer loyalty
- Time and attendance
- Contactless public phones
- Vending machines
Please check detailed specification from this link:
/productdetails.aspx?pid=485

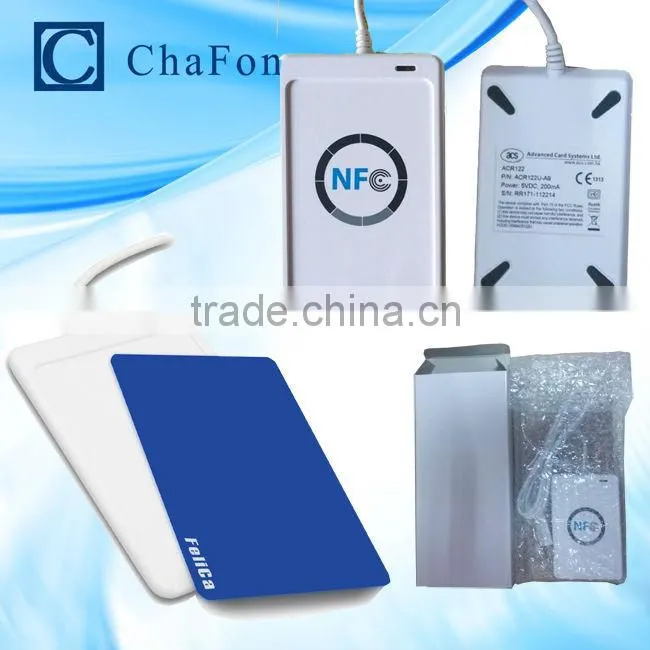

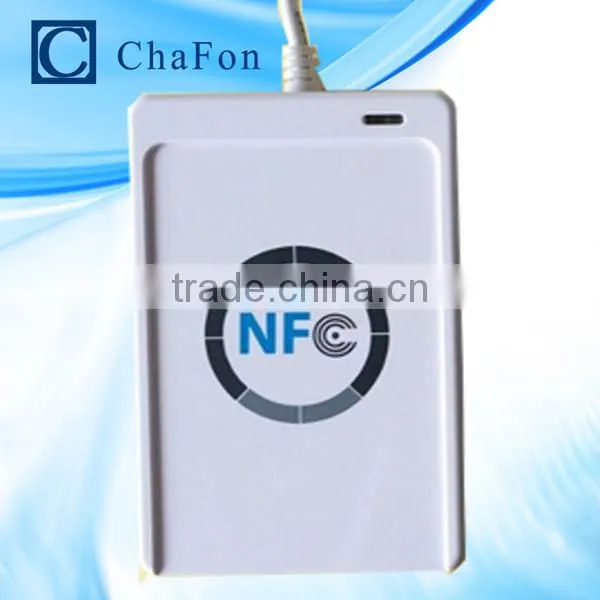

Product Picture:
