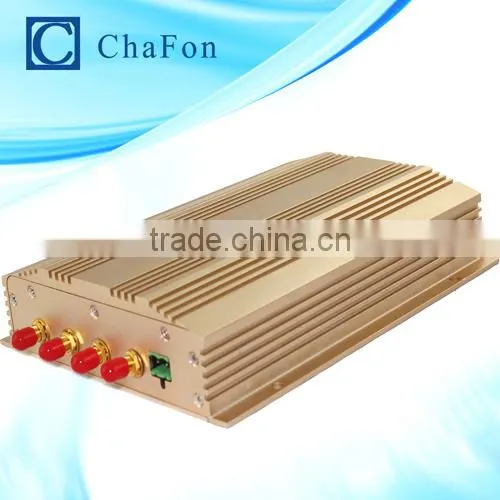

13.56mhz rfid high power reader with four antenna ports

Product Description



CF-RH9044 is a high performance ISO15693 protocol HF tag reader. It is designed upon fully self-intellectual property. Based on proprietary efficient anti-collision algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system



Features

  • Self-intellectual property;
  • Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM…);
  • RF output power over 4W;
  • Advanced anti-collision algorithm. High identification rate with tag processing speed 30~50pcs/s);
  • SMA RF interface to support standard 50ohm RFID antenna. Effective distance up to 90cm;
  • Support TRANSPARENT COMMAND;
  • Support optional DPPM and WPPM;
  • Support multiple readers network;
  • Low power dissipation;
  • Provide DLL and demonstration software to facilitate development





Interface Description



1.Power Supply Socket J1



No.

SYMBOL

COMMENT

J1-1

PWR

                                    +11.6~15V

J1-2

GND

                                        Ground





2. SMA Antenna Socket J21, J22, J23, J24



3.Communication Socket J3

Standard DB9 Female Socket to be directly connected to the host.



No.

SYMBOL

COMMENT

1

G_IN1

General TTL level input with internal 20kΩ pull-up resistor to +5V

2

TXD(R-)

RS232 serial data output or RS485 R-

3

RXD(R+)

RS232 serial data input or RS485 R+

4

G_OUT1

General TTL level output with drive/sink 5mA current (max.)

5

GND

Ground

6

G_OUT2

General TTL level output with drive/sink 5mA current (max.)

7

COMMON

Common contact of built-in relay

8

N_C

Normally close contact of built-in relay

9

N_O

Normally open contact of built-in relay









Parameter



1.Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

G_IN1,G_OUT1,G_OUT2 I/O Voltage

VIO

7

V

Operating Temp.

TOPR

-25~+60

°C

Storage Temp.

TSTR

-25~+80

°C



2. Electrical and Mechanical Specification

Under TA=25°C,VCC=+12.6V unless specified



ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

11.6

12.6

15

V

Current Dissipation

IC



0.8

1.2

A

Frequency

FREQ



13.56



MHz

Effective Distance*

DIS

0

900

1000

mm

G_IN1 Input Level

VIH

VIL

3.5

2.6

2.3



1.55

V

V

G_OUT1, G_OUT2

Output Current

±IO





5

mA

G_OUT1,G_OUT2

Output Level

VOH(IO=-5mA)

VOL(IO=5mA)

3.95





0.73

V



Relay

Rated Load

CLOAD





0.5A at 125VAC

1A at 24VDC



Operating Voltage







125VAC

60VDC

V

Operating Current







1

A

Size

L x W x H



215 x 138 x 39



mm







Product picture
