ISO15693 rfid gate antenna reader 13.56mhz with RS232/RS485/TCP/IP interface provide SDK,demo software,user manual,source code

General description

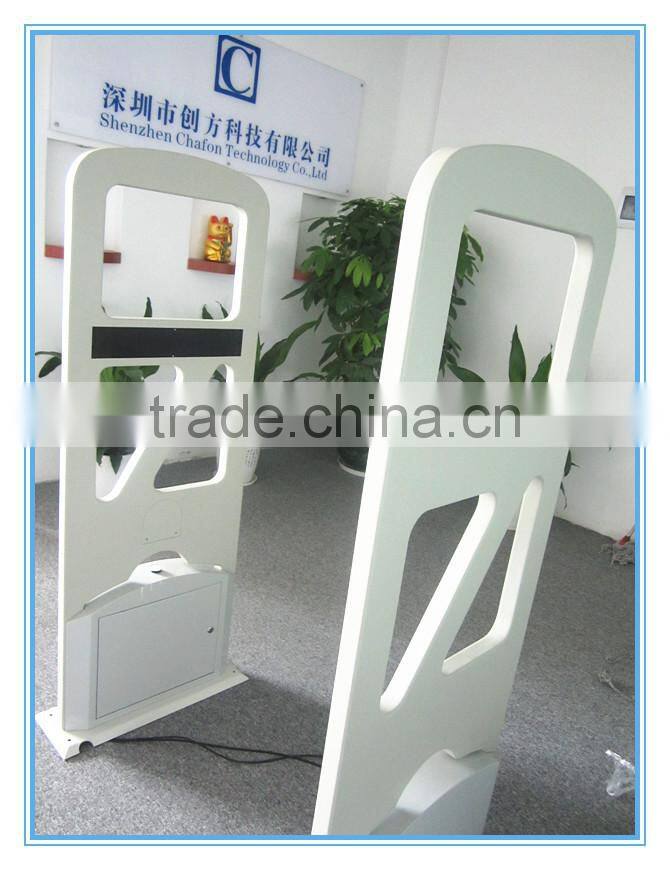

HF Gate Device “CF-CH900” are designed for high performance channel management applications. The series support fast tag anti-collision and read/write operations (include EAS function of ISO15693 tag). Equipped with main/auxiliary channel antenna, 4 line infrared motion detection sensor, control board and standard RS232, RS485 serial communication ports and RJ45 (TCP/IP) network port, the series are top choice for open mass flow RFID applications, such as: Conference Attendance, Access Control, Library Entrance Control, Process Control, etc.

Features

1.Self-intellectual property;

2.Support ISO/IEC15693, EPC, UID, HF EPC protocol tags;

3.Advanced anti-collision algorithm, high identification rate;

4.Built-in TX/RX antenna and channel width up to 120cm^*;

5.Built-in 4 line infrared motion detection sensor;

6.Low power dissipation design with RF power over 4W;

7.The storage capacity of gate is 30000 messages;

8.Configuration various alarm modes;

9.Support ISO15693 tag/label EAS function;

10.Support RS232, RS485 and RJ45 (TCP/IP) network interface;

11.Support plug-in camera, large screen display/ television to realize control and management in a more intuitive way.

*Effective distance depends on protocol, tag and working environment.

Components

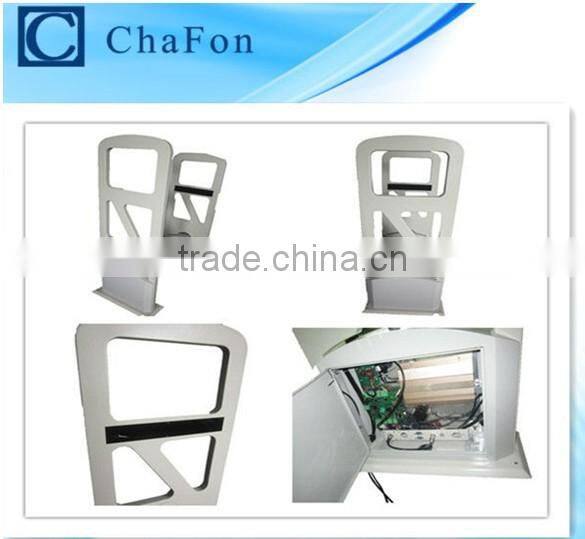

CF-RH900comprises main antenna, auxiliary antenna. Main antenna base box is integrated with high RF power tag reader, power splitter, 4 line infrared receiver parts, controller board and interface board. Auxiliary antenna base box is integrated with power source, 4 line infrared transmitter parts and interface board.

Other accessories include AC power cable, RF cable connecting main/auxiliary antenna, DC power cable connecting main/auxiliary antenna and RS232 communication cable.

Wiring Information

1:Power splitter

2:High RF power reader CF-RH900

3:Buzzer

4:Controller board

5:Main/auxiliary antenna RF cable socket

6:Serial port IF1

7:Serial port IF2

8:Main/auxiliary antenna DC power cable socket

9:LED indicator

* Components location may be slightly adjusted

Application

Serial communication setting: 38400bps, E, 8, 1

Serial port IF1 and IF2 DB9 socket definition:

Please refer to CF-RH900 user’s manual for communication protocol details.

Remark:

1. Specifications are subject to change, please pay attention to our latest one.

2. Shenzhen Chafon Technology Co., Ltd. reserves the right to the final interpretation of the above terms.

Other Support

1.It come with completed English SDK,demo software,user manual and source code,and these documents will help you develop the software for your application.

2.When you buy our reader,we can provide free sample card or tag to you for testing.

3.More information about this product , please visit this link:

/productdetails.aspx?pid=380

Product picture
