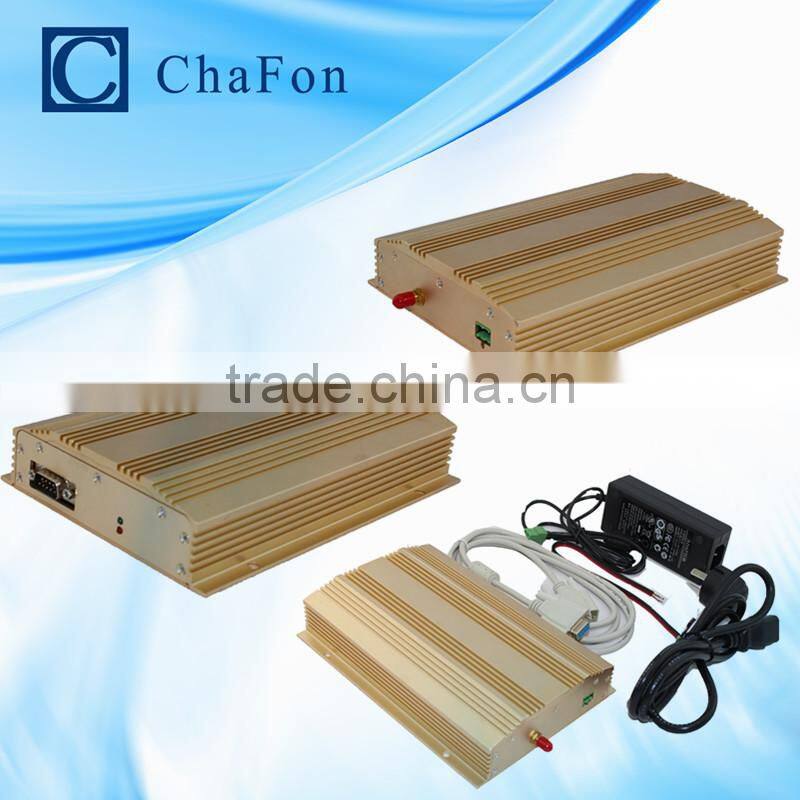

ISO15693 Rfid hf High Power Reader With One Antenna Port and RS232 Interface Provide SDK,demo Software,user Manual,source Code

Specifications

ISO15693 rfid hf high power reader with one antenna port and RS232 interface provide SDK,demo software,user manual,source code

Generally Description

CF-RH9041 is a high performance ISO15693 protocol HF tag reader. It is designed

upon fully self-intellectual property. Based on proprietory efficient anticollision

algorithm, it supports fast tag read/write operation with high identification rate.It can

be widely applied in many RFID application systems such as logistics, personnel

identification, conference attendance system, access control, anti-counterfeit and

industrial production process control system.

FEATURES

l Self-intellectual property;

l Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM…);

l RF output power over 4W;

l Advanced anti-collision algorithm. High identification rate with tag processing speed 30~50pcs/s);

l SMA RF interface to support standard 50ohm RFID antenna. Effective distance up to 90cm;

l Support TRANSPARENT COMMAND;

l Support optional DPPM and WPPM;

l Support multiple readers network;

l Low power dissipation;

l Provide DLL and demonstration software to facilitate development

1.Power Supply Socket J1

2.SMA Antenna Socket J2

3.Communication Socket J3

Standard DB9 Female Socket to be directly connected to the host.

CHARACTERISTICS

l  Absolute Maximum Rating

l  Electrical and Mechanical Specification

Under T_A=25°C,VCC=+12.6V unless specified
