Specifications
1.rfid hf ethernet reader2.13.56mhz
3.ISO14443A/B,ISO15693
4.RS232/TCP/IP
5.123*94*29mm
rfid hf ethernet reader support ISO14443A/ISO15693 protocol with SDK,demo software,user manual and free sample card for testing
Product Description
CF-RH390 is a high performance Multi-Protocol HF tag reader supporting ISO/IEC15693, ISO14443TypeA/TypeB. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
Features
1.Self-intellectual property;
2.Support mainstream ISO/IEC15693, ISO14443TypeA/TypeB protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM);
3.Advanced tag processing algorithm, high identification rate;
4.Built-in TX/RX antenna with effective distance up to 100mm *;
5.Low power dissipation design with single DC+12V power source needed;
6.Support TCP/IP and RS232 interface and provide DLL and demonstration software to
7.facilitate development;
8.Provide DLL and demonstration software to facilitate development.
Parameter
1.Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 12 | V |
| Operating Temp. | TOPR | -10~+60 | °C |
| Storage Temp. | TSTR | -25~+80 | °C |
2.Electrical and Mechanical Specification Under TA=25°C,VCC=+12V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 11.5 | 12 | 15 | V |
| Current Dissipation | IC | 150 | 200 | mA | |
| Frequency | FREQ | 13.56 | MHz | ||
| Effective Distance * | DIS | 0 | 80 | 100 | mm |
Product mode explanation
| Model | Standard | interface |
| CF-RH391 | IS014443A | R(RS232)/TCP/IP |
| CF-RH392 | IS014443A/B | R(RS232)/TCP/IP |
| CF-RH393 | ISO15693 | R(RS232)/TCP/IP |
| CF-RH394 | ISO/IEC14443A/B,ISO15693 | R(RS232)/TCP/IP |
Other Support
More information about this product,please visit follow link:
/productdetails.aspx?pid=369

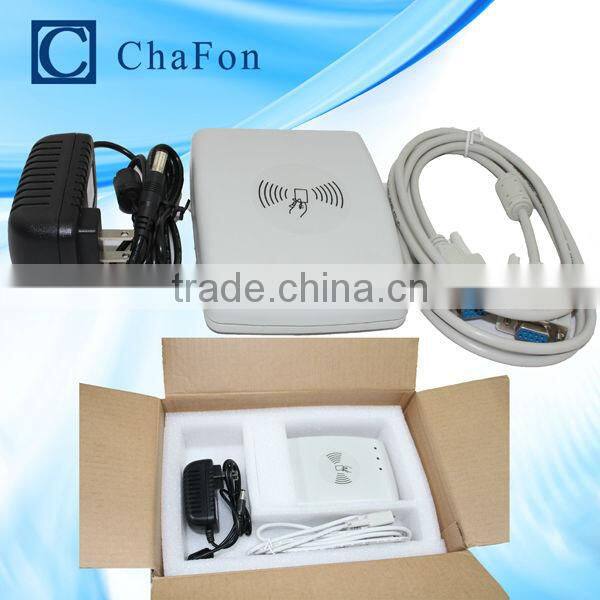

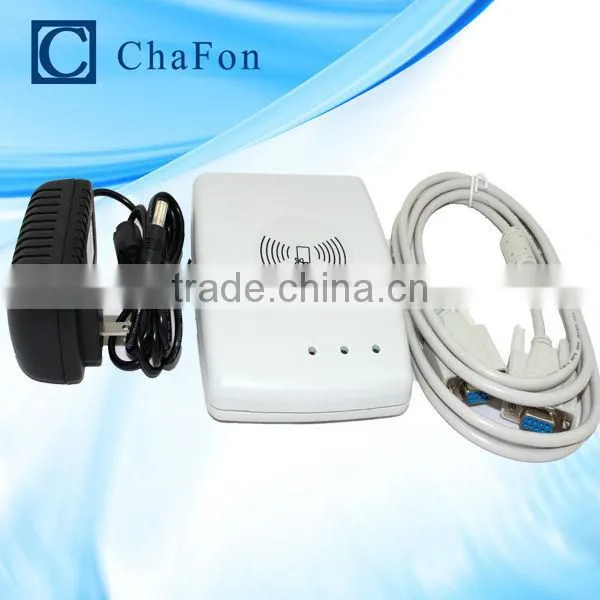

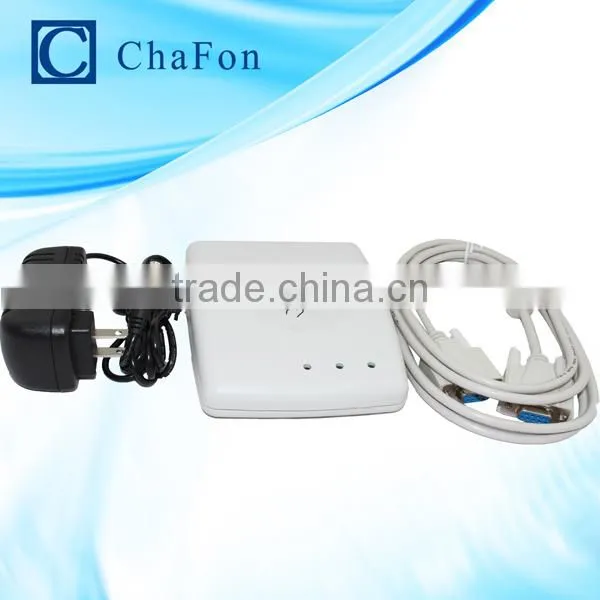

Product picture
