Rfid Gate Antenna 13.56mhz With SDK,demo Software,use Manual

HF Gate Device “CF-CH900” are designed for high performance channel management applications. The series support fast tag anti-collision and read/write operations (include EAS function of ISO15693 tag). Equipped with main/auxiliary channel antenna, 4 line infrared motion detection sensor, control board and standard RS232, RS485 serial communication ports and RJ45 (TCP/IP) network port, the series are top choice for open mass flow RFID applications, such as: Conference Attendance, Access Control, Library Entrance Control, Process Control, etc.

CF-RH900comprises main antenna, auxiliary antenna. Main antenna base box is integrated with high RF power tag reader, power splitter, 4 line infrared receiver parts, controller board and interface board. Auxiliary antenna base box is integrated with power source, 4 line infrared transmitter parts and interface board.

Other accessories include AC power cable, RF cable connecting main/auxiliary antenna, DC power cable connecting main/auxiliary antenna and RS232 communication cable.

Wiring Information

1:Power splitter

2:High RF power reader CF-RH900

3:Buzzer

4:Controller board

5:Main/auxiliary antenna RF cable socket

6:Serial port IF1

7:Serial port IF2

8:Main/auxiliary antenna DC power cable socket

9:LED indicator

* Components location may be slightly adjusted

Application

Serial communication setting: 38400bps, E, 8, 1

Serial port IF1 and IF2 DB9 socket definition:

Please refer to CF-RH900 user’s manual for communication protocol details.

Remark:

1. Specifications are subject to change, please pay attention to our latest one.

2. Shenzhen Chafon Technology Co., Ltd. reserves the right to the final interpretation of the above terms.

Other Support

More information about this product , please visit this link:

/productdetails.aspx?pid=380

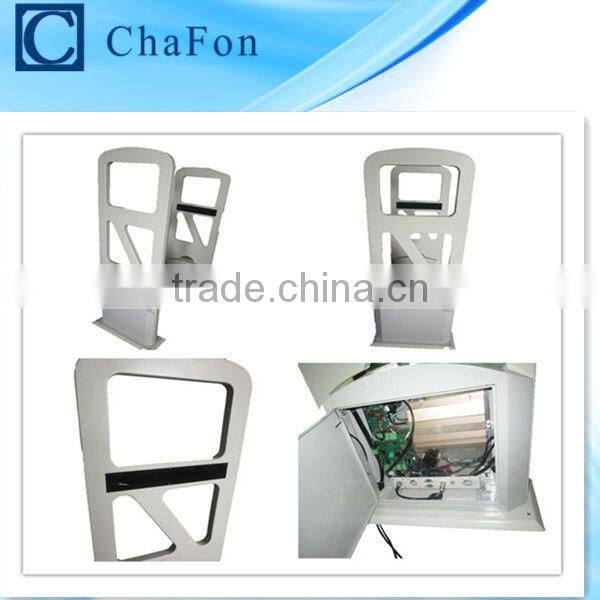

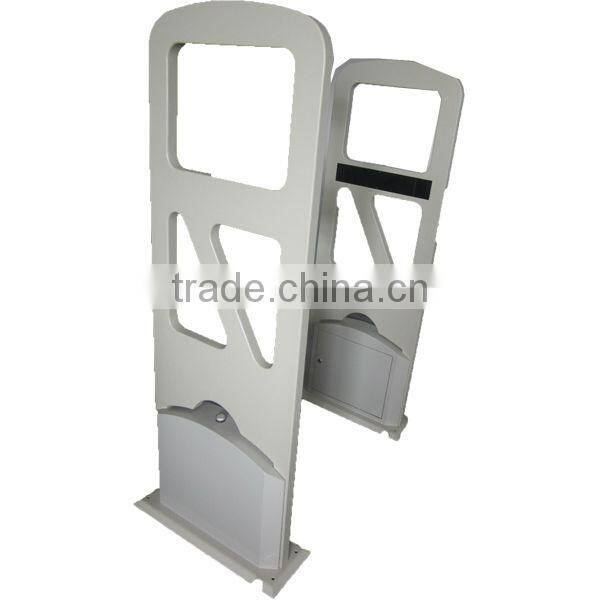

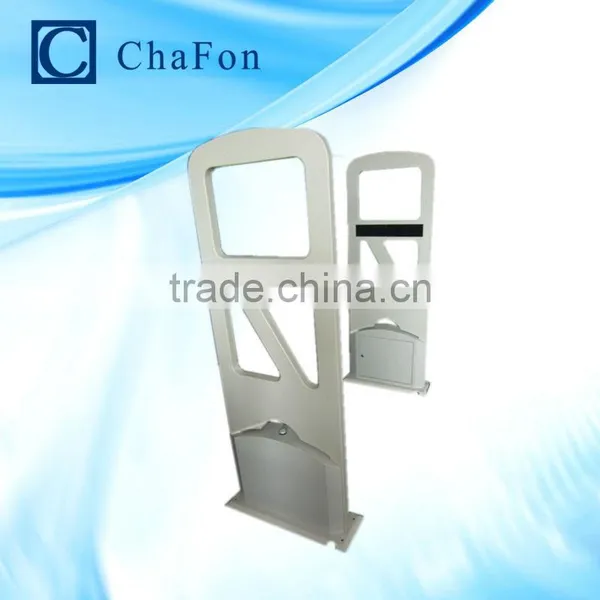

Product picture
