Product Details
Place of Origin: | Guangdong, China | Brand Name: | ChaFon | Model Number: | CF-RH9041 |
Product Description
Specifications
1.13.56Mhz high power reader2.ISO15693
3.Read range is 50~80cm
4.with multi-tag reading function
5.215x138x39mm
4W ISO15693 hf high power rfid reader for jewelry managemet,skating,library management etc with complete SDK,demo software etc
Description
CF-RH9041 is a high performance ISO15693 protocol HF tag reader. It is designed
upon fully self-intellectual property. Based on proprietory efficient anticollision
algorithm, it supports fast tag read/write operation with high identification rate.It can
be widely applied in many RFID application systems such as logistics, personnel
identification, conference attendance system, access control, anti-counterfeit and
industrial production process control system.
Feature
lSelf-intellectual property;
lSupport mainstream ISO15693 protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM…);
lRF output power over 4W;
lAdvanced anti-collision algorithm.
lHigh identification rate with tag processing speed 30~50pcs/s);
lSMA RF interface to support standard 50ohm RFID antenna. Effective distance up to 90cm;
lSupport TRANSPARENT COMMAND;
lSupport optional DPPM and WPPM;
lSupport multiple readers network;
lLow power dissipation;
lProvide DLL and demonstration software to facilitate development
Interface Decription
1.Power Supply Socket J1
No. | SYMBOL | COMMENT |
J1-1 | PWR | +11.6~15V |
J1-2 | GND | Ground |
2.SMA Antenna Socket J2
3.Communication Socket J3
Standard DB9 Female Socket to be directly connected to the host.
No. | SYMBOL | COMMENT |
1 | G_IN1 | General TTL level input with internal 20kΩ pull-up resistor to +5V |
2 | TXD(R-) | RS232 serial data output or RS485 R- |
3 | RXD(R+) | RS232 serial data input or RS485 R+ |
4 | G_OUT1 | General TTL level output with drive/sink 5mA current (max.) |
5 | GND | Ground |
6 | G_OUT2 | General TTL level output with drive/sink 5mA current (max.) |
7 | COMMON | Common contact of built-in relay |
8 | N_C | Normally close contact of built-in relay |
9 | N_O | Normally open contact of built-in relay |
Parameter
1/Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
G_IN1,G_OUT1,G_OUT2 I/O Voltage | VIO | 7 | V |
Operating Temp. | TOPR | -25~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
2.Electrical and Mechanical Specification
Under TA=25°C,VCC=+12.6V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT | |
Power Supply | VCC | 11.6 | 12.6 | 15 | V | |
Current Dissipation | IC | 0.8 | 1.2 | A | ||
Frequency | FREQ | 13.56 | MHz | |||
Effective Distance* | DIS | 0 | 900 | 1000 | mm | |
G_IN1 Input Level | VIH VIL | 3.5 | 2.6 2.3 |
1.55 | V V | |
G_OUT1, G_OUT2 Output Current | ±IO | 5 | mA | |||
G_OUT1,G_OUT2 Output Level | VOH(IO=-5mA) VOL(IO=5mA) | 3.95 |
0.73 | V
| ||
Relay | Rated Load | CLOAD |
| 0.5A at 125VAC 1A at 24VDC | ||
Operating Voltage | 125VAC 60VDC | V | ||||
Operating Current | 1 | A | ||||
Size | L x W x H | 215 x 138 x 39 | mm |
Other Support
More Information about this product , please visit this link:
/productdetails.aspx?pid=374

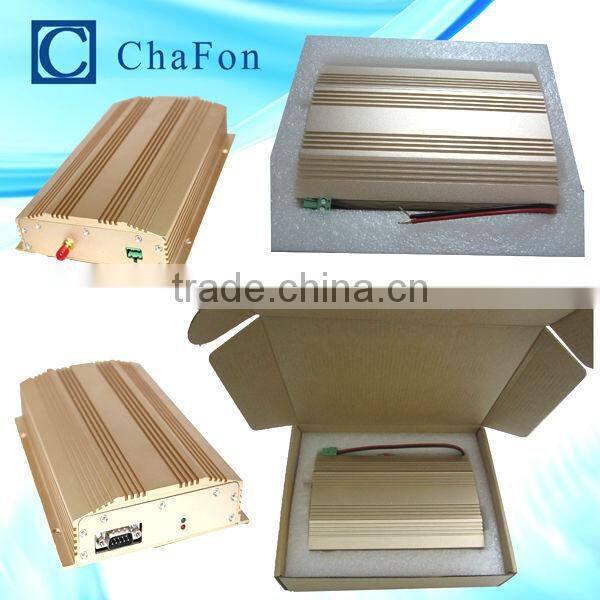

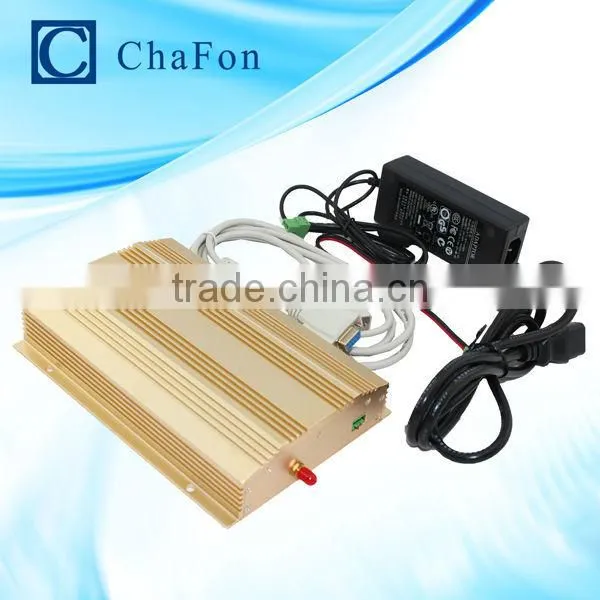

Product picture
