Specifications
1.hf rfid reader writer2.13.56mhz frequency
3.ISO14443A/B/ISO15693 protocol
4.USB/RS232 interface
5.read range:5~10cm
hf rfid reader writer support ISO14443A/ISO15693 protocol with usb and rs232 interface for option provide SDK,demo software and free sample card for test
Product description
CF-RH330 series desktop readers are smart modules without touching based on international standard agreement ISO14443A, ISO14443B and ISO15693.
CF-RH330 are equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC through USB/RS232 interface.
CF-RH330 are of high capability, anti-jamming, small size and good quality, which brings more convenience.
Product mode explanation
Model |
Standard |
interface |
color |
CF-RH331 |
IS014443A |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH332 |
IS014443A/B |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH333 |
ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH334 |
ISO/IEC14443A/B,ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
Capability specifications
Name |
HF Reader&Write |
Dimension |
110x80x25mm |
Standard |
ISO14443A/B,ISO15693 optional |
Support |
MF One S70;MF One UltraLight;MF One S50;MF Pro; AT88RF020;66CL160S; SR176;SRIX4K(TYPE-B); I-Code2; TI RFid Tag-it,EM4135,EM4034 etc. |
Frequency |
13.56MHz |
Speed |
106kbit/s |
Baud Rate |
9600-115200 bit/s |
Power Supply |
+5V DC |
Consumed Current |
< 80mA |
Operating Distance |
50--70mm |
Interface |
RS232;USB |
Status Indication |
1pcs LED;1pcd buzzer |
Service Temperature |
-10°C ~ +70°C |
Store Temperature |
-20°C ~ +80°C |
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, public transportation, such as toll collection system.
Other support
1.We can provide completed English SDK,demo software,user manual and source code,these documents will help you develop the software for your applicaiton.
2.When you buy our reader,we can provide free sample card to you for testing
3. Much more detailed information,please come to below link to check:
/productdetails.aspx?pid=364

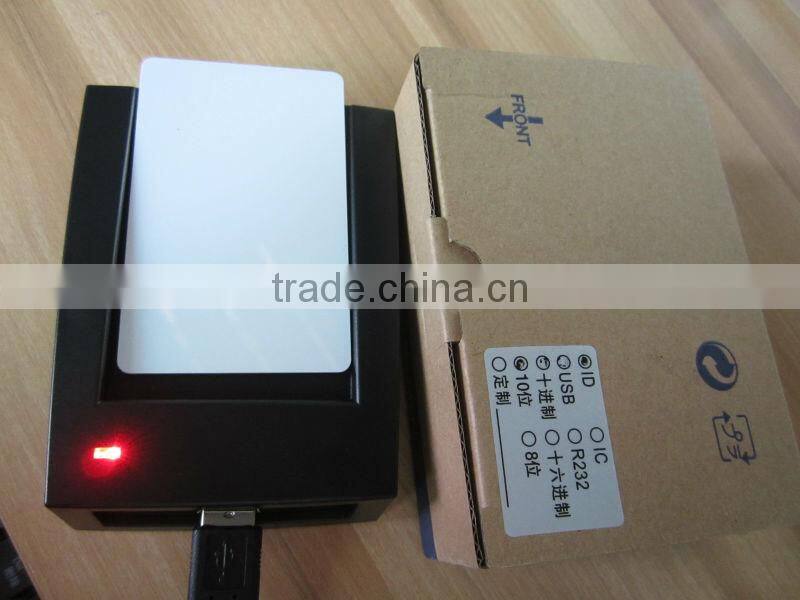

Product picture
