Specifications
Coal water mixture hot water boiler1. ISO9001 Certificate ,ASME(S) Certificate .
2.Rated working pressure
3.30 year expiren
Coal water mixture hot water boiler intoduce
Product Features
1,The advantages of coal fired boiler and oil fired boiler are utilized to the greatest estent,and it is an ideal environment-protection and energy-saving substitute of coal fired boiler and oil fired boiler.
2,The problems of environment pollution of coal fired boiler and high running cost of oil fired boiler are settled.
3,The product is environment-protecting and energy-saving.The environment-protecting targets of sulfur conment of smoke and dustiness precede national standard.
4,Fuel ratio is up to more than 98%,and thermal effciency is up to more than 85%.

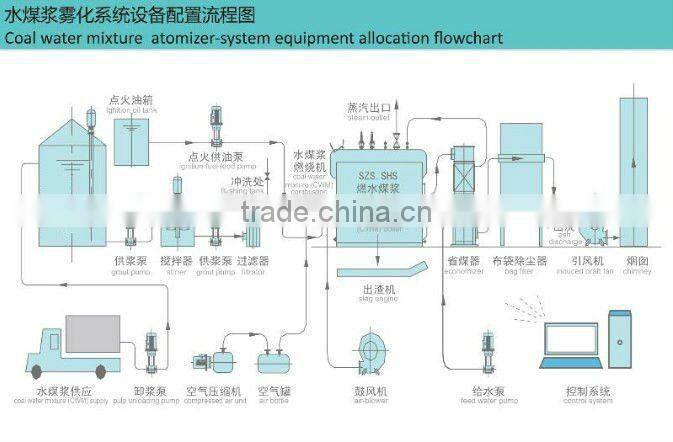

5,Water-coal starch is transported in liquid state and burned in pulverization.It can be ignited automatically,and easy to be automatic controlled,so the operations are rather easy.
6,Water-coal starch boiler can reach 900°C rapidly,and burns automatically at 1200°C continually and steadily, which can avoid a pollution process because of incompiete burning of coal under low temperature while adding coal to the coal fired boiler,and avoid heavy nitride pollution produced by oil fired boiler at high temperature(more than 1300°C)
| Boiler model | SZS4-1.25-J | SZS6-1.25-J | SHFS10-1.25-J | SHFS20-1.6-J | SHFS35-3.82-J |
| Items | |||||
| Reted steam capacity (t/h) | 4 | 6 | 10 | 20 | 35 |
| Rated working pressure (MPa) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Rated steam temperature (°C) | Saturated | Saturated | Saturated | Saturated | 450 |
| Combustion method | Furnace combustion | Furnace combustion | Furnace combustion | Furnace combustion | Furnace combustion |
| Applicable coal | Water-coal starch | Water-coal starch | Water-coal starch | Water-coal starch | Water-coal starch |
| The coal consumption at full load operation (Kg/h) | 710 | 915 | 1615 | 2920 | 5713 |
| The body heating surface (m2) | 145 | 208 | 246 | 469 | / |
The economizer surface | 60.3 | 72.4 | 206 | 351 | / |
| Exit gas temperature (°C) | 166 | 163 | 157 | 157 | / |
| Thermal feeicency (%) | 85.8 | 85.9 | 90.8 | 88 | / |
| Weight of biggest part for transportation (t) | 31.5 | 35.5 | In bulk | In bulk | / |
Dimensions of biggest part for transportation (mm) | 6300*3100*3540 | 7100*3400*3540 | In bulk | In bulk | In bulk |
Notes:1.The water-coal starch consumption at full load operation calculates to its heat velue.dw=17556KJ/Kg.
2.If the main specifications noted have changed,you can refer to ex-work technical
